Product Overview

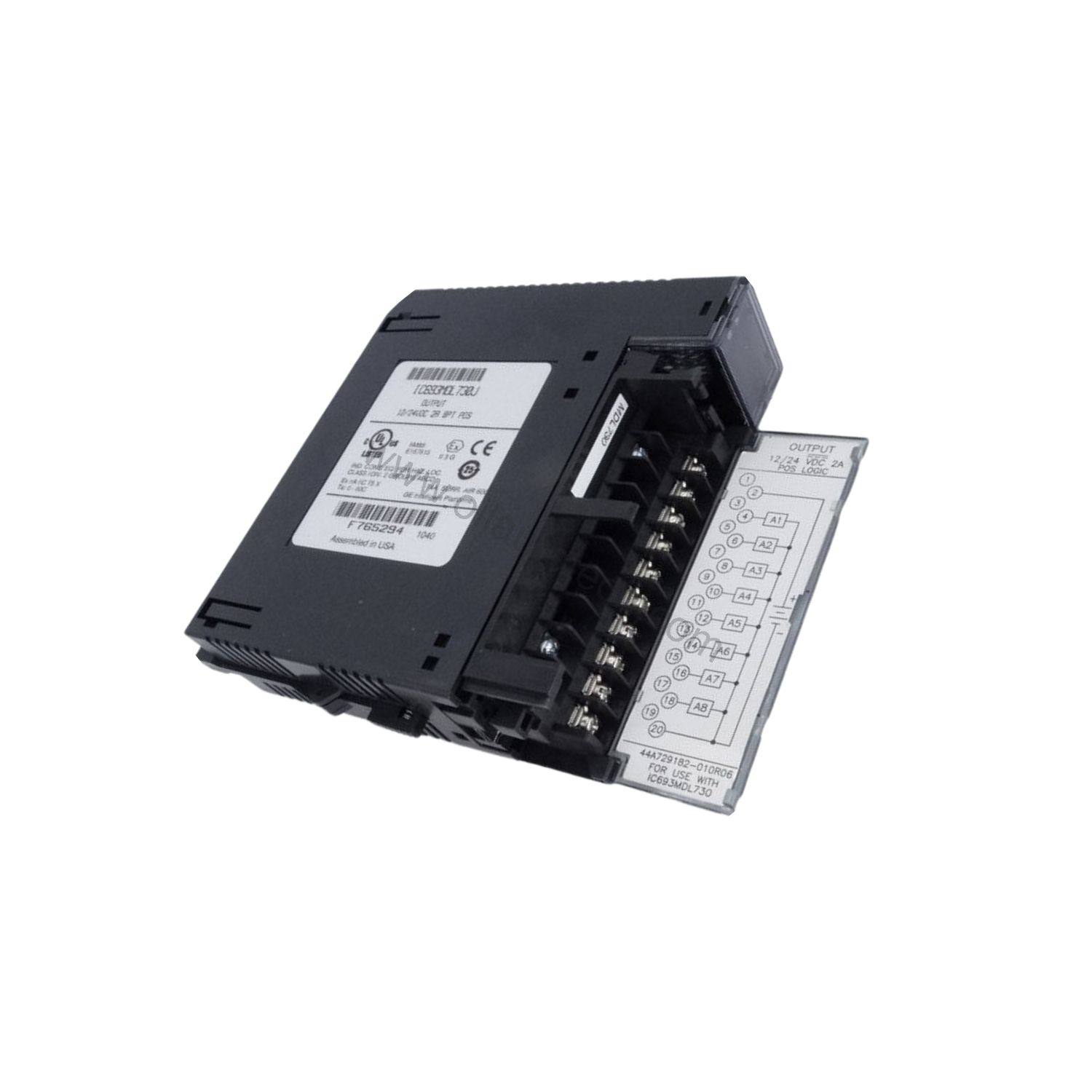

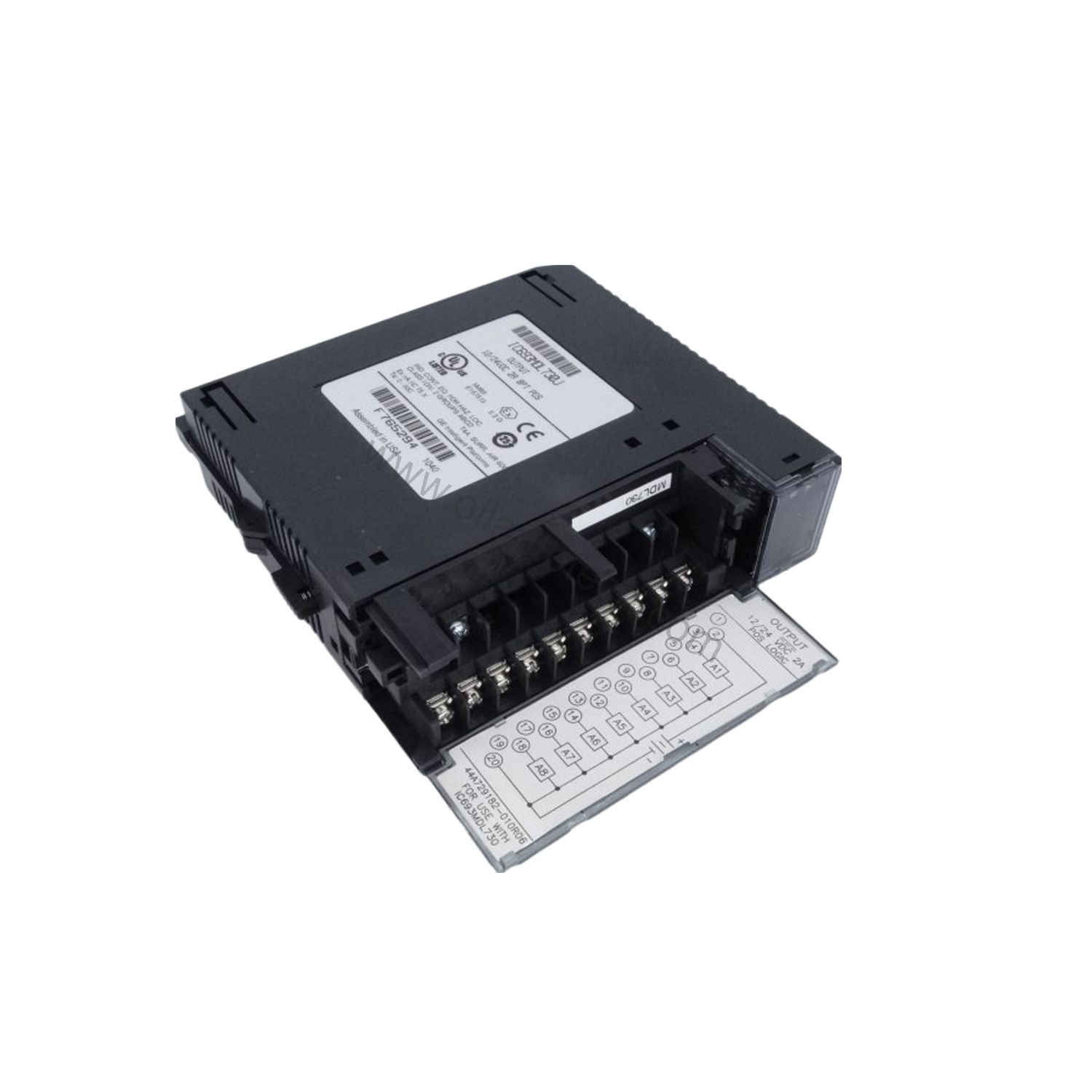

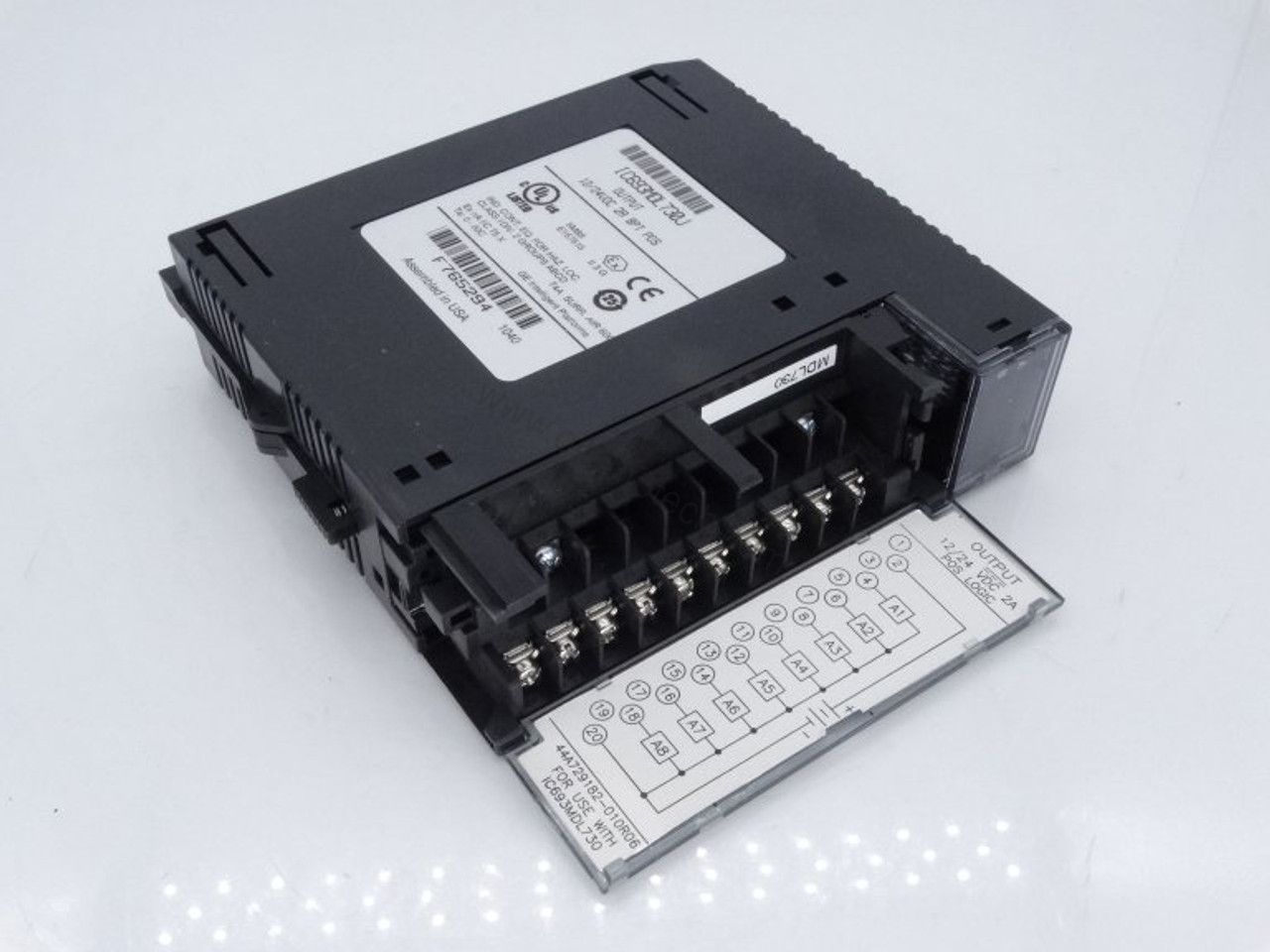

The IC693MDL730E is an 8-channel positive-logic sourcing discrete DC output module from the GE Series 90-30 platform, originally built by GE Fanuc and now owned by Emerson. Each channel handles 12 to 24 VDC loads at up to 2.0 A per point, with 2 ms maximum on/off response and 1500 V field-to-logic isolation. It occupies a single slot.
This module is discontinued (End of Sale, last verified 2026-09). For plants running Series 90-30 racks, that status turns a routine output failure into a downtime event. Sourcing a verified spare quickly protects production far better than redesigning a working control system.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 8 (single group) |
| Output Type | Transistor sourcing, positive logic |
| Output Voltage Range | 12 to 24 VDC |
| Load Current | 2.0 A per point |
| On/Off Response Time | 2 ms maximum |
| Isolation | 1500 V field-to-logic |
| Operating Temperature | 0 to +60°C ambient |
| Slot Width | Single slot |
What These Ratings Mean on the Plant Floor
The 2.0 A per point rating lets one module drive valves, relays, and indicator banks without external interposing relays on most circuits. Fewer components means lower wiring cost and fewer failure points to troubleshoot.
The 2 ms response time supports fast sequencing duties, so scan-critical outputs do not become the bottleneck. The 1500 V field-to-logic isolation separates noisy field wiring from backplane electronics, reducing nuisance faults and protecting the rack.
Where the IC693MDL730E Fits
Typical duties include pilot valve control, solenoid banks, and status indication on gas compression and pipeline skids. In water treatment, the sourcing output suits relay coils and motor starter interfaces. Packaging and material handling lines use it for diverter and actuator signals.
Because the module is discontinued, each of these applications carries a replacement-cost risk. A failed channel can idle a whole skid. Keeping a ready-to-ship spare on the shelf is the cheapest insurance against that outcome.
Installation Notes
Mount the module in a single Series 90-30 slot and confirm the field supply sits within the 12 to 24 VDC range before energizing. Keep ambient temperature within 0 to +60°C and allow normal panel airflow. Verify output polarity matches the positive-logic sourcing configuration, and check field wiring for shorts before first power-up. For detailed procedures, follow the manufacturer’s manual.
Maintenance and Lifecycle Planning
Inspect terminal connections periodically and watch for heat buildup around high-current points. Since the IC693MDL730E is discontinued, treat every installed unit as a finite asset. Track channel loading and replace marginal modules before they fail mid-run. Oil AutoTech supplies fast-dispatch spares for oil, gas and industrial automation, with quick worldwide delivery and hands-on technical selection help. Please verify current lifecycle status and availability with Oil AutoTech before ordering.
Frequently Asked Questions
Is the IC693MDL730E still in production?
No. It is discontinued (End of Sale, last verified 2026-09). Contact Oil AutoTech for current availability.
How many outputs does it provide?
Eight sourcing outputs in a single group, rated 12 to 24 VDC at 2.0 A per point.
What is the switching speed?
On/off response time is 2 ms maximum, suitable for fast sequencing tasks.
Does it provide electrical isolation?
Yes. Field-to-logic isolation is rated 1500 V.
What should I verify before buying?
Confirm your rack is Series 90-30, your load falls within 12 to 24 VDC and 2.0 A per point, and your panel stays within 0 to +60°C.
