Product Overview

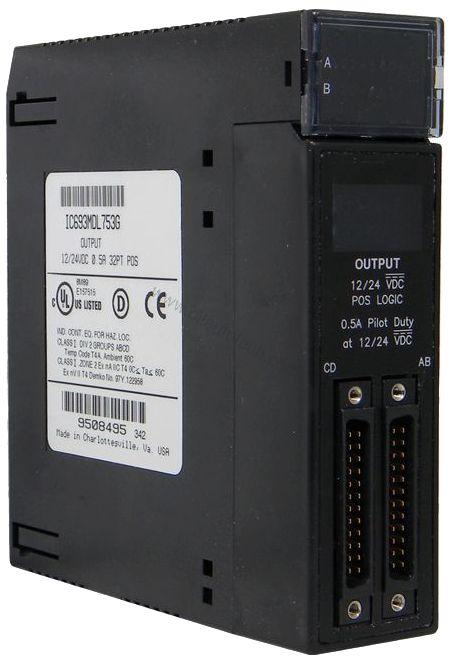

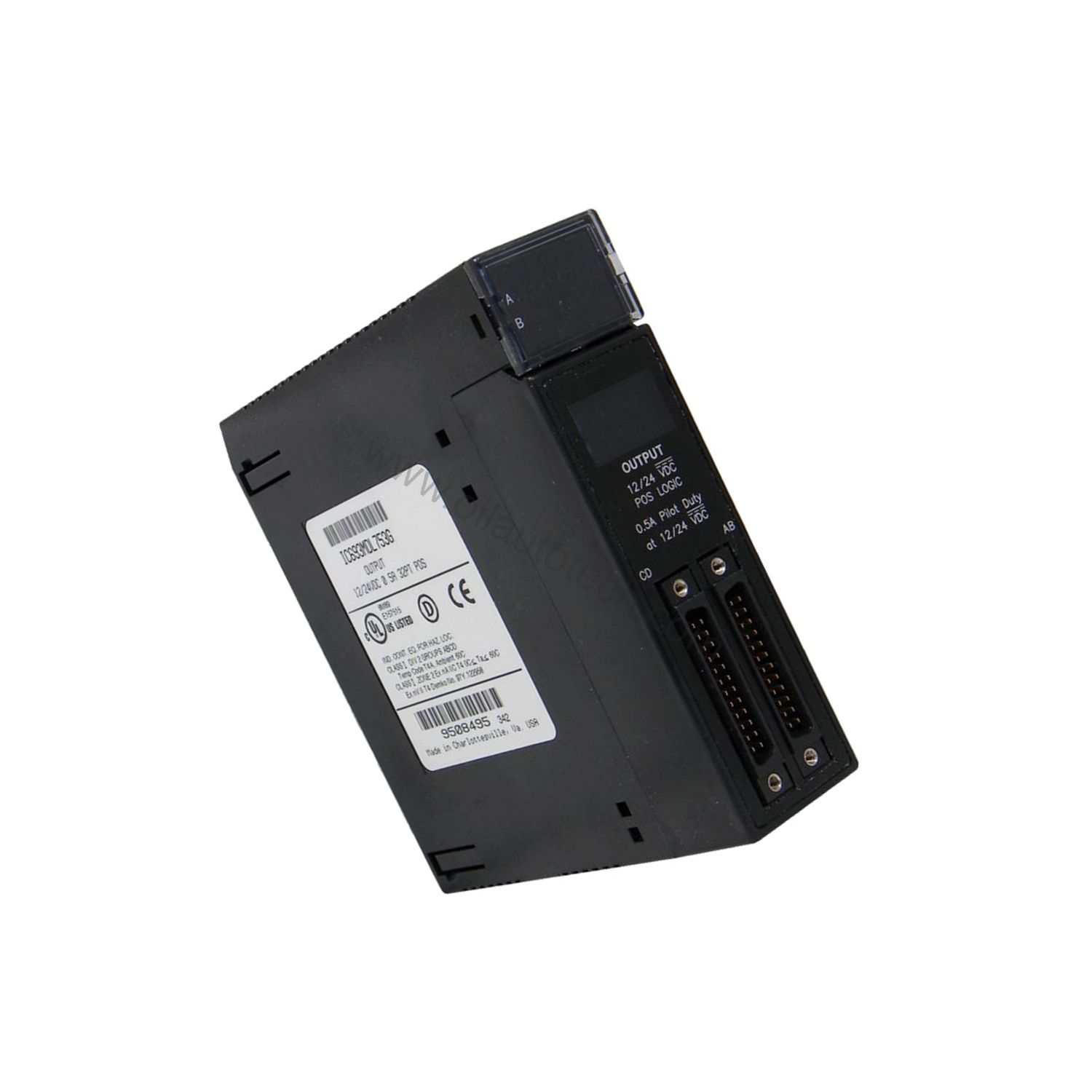

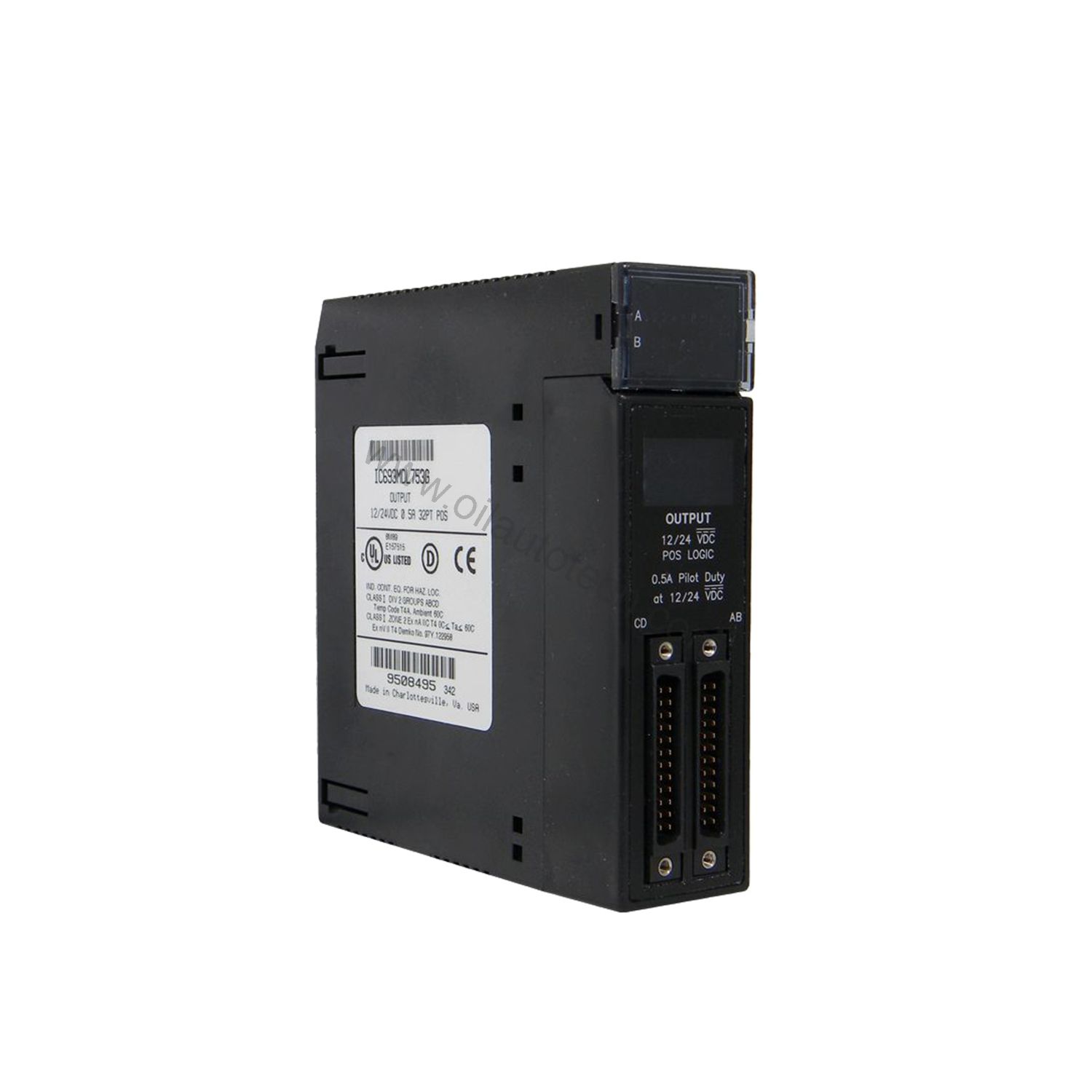

When a Series 90-30 output module drops offline, every downstream actuator on that rack waits with it. The IC693MDL753F from GE Fanuc / GE Intelligent Platforms (now under Emerson ownership) is a 32-point, 12 to 24 VDC positive logic sourcing output module built for exactly that pressure point. Each of its four groups of eight points sinks real field loads, so a single failed channel never has to stall an entire process line.
For maintenance engineers, the practical value is simple: one slot, 32 outputs, and a design that keeps troubleshooting local to the group rather than the whole module.
Key Parameters
| Specification | Value |
|---|---|
| Output points | 32, 12 to 24 VDC positive logic sourcing, four groups of eight |
| Output voltage range | 10.2 to 28.8 VDC |
| Output current | 0.5 A per point, 4 A maximum per group |
| Isolation | 1500 V field-to-logic; 250 V between groups |
| Response time | 0.5 ms maximum on and off |
| Backplane draw | 260 mA maximum from 5 V bus |
What These Ratings Mean on the Floor
The 0.5 A per-point rating covers most pilot valves, indicator banks, and small relay coils without interposing hardware. The 4 A per-group ceiling is the number to watch: distribute high-inrush loads across groups instead of stacking them on one.
That inrush figure matters too. At 5.4 A for 10 ms, the module rides through the brief surge of inductive loads, while the 0.3 VDC on-state drop keeps heat generation low inside the panel. Fast 0.5 ms response suits sequencing and interlock duties where timing is tight.
Where It Fits
This module suits oil, gas, and general industrial automation panels running legacy Series 90-30 racks. Typical duties include driving solenoid valve banks on wellhead control panels, piloting indicator and alarm circuits in compressor stations, and switching relay logic in packaging or material-handling lines.
Because the outputs are sourcing (positive logic), they pair naturally with loads referenced to the negative rail — a common arrangement in retrofit panels where wiring is already established.
Installation Notes
The IC693MDL753F occupies a single slot at 124 × 30 × 114 mm. Keep the rack within the 0 to +60°C ambient rating and observe the 5 to 95% non-condensing humidity limit. The IP20 rating means the module belongs inside a protected enclosure, away from washdown and dust ingress.
Group your field wiring by the four groups of eight. This makes fault isolation faster and keeps per-group current within the 4 A limit. Verify backplane loading before adding modules, since this unit draws up to 260 mA from the 5 V bus with all outputs energized.
Maintenance and Reliability
From a service standpoint, the 1500 V field-to-logic isolation and 250 V group-to-group isolation limit fault propagation — a shorted field device stays contained. During routine inspections, check terminal torque, look for discoloration on high-duty groups, and confirm that no group exceeds its current budget.
This model appears as legacy/obsolete in aftermarket listings, and the official Emerson EOS date is not verified. Please verify current lifecycle status and availability with Oil AutoTech before ordering. As a supplier focused on fast-dispatch spares for oil, gas, and industrial automation, Oil AutoTech offers hands-on technical selection help to confirm this module matches your rack and revision.
Contact Oil AutoTech today for pricing and availability.
