When a Single Input Card Stalls Your Line

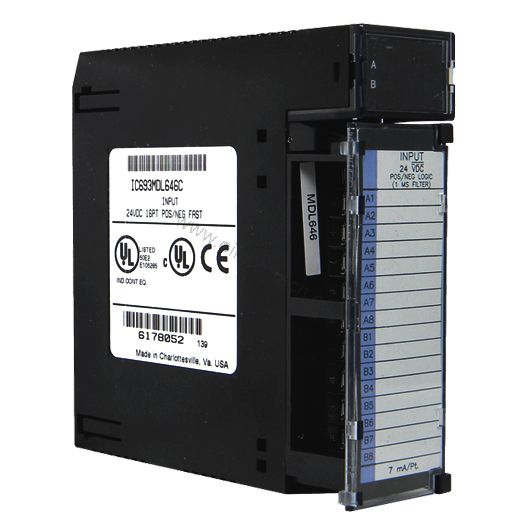

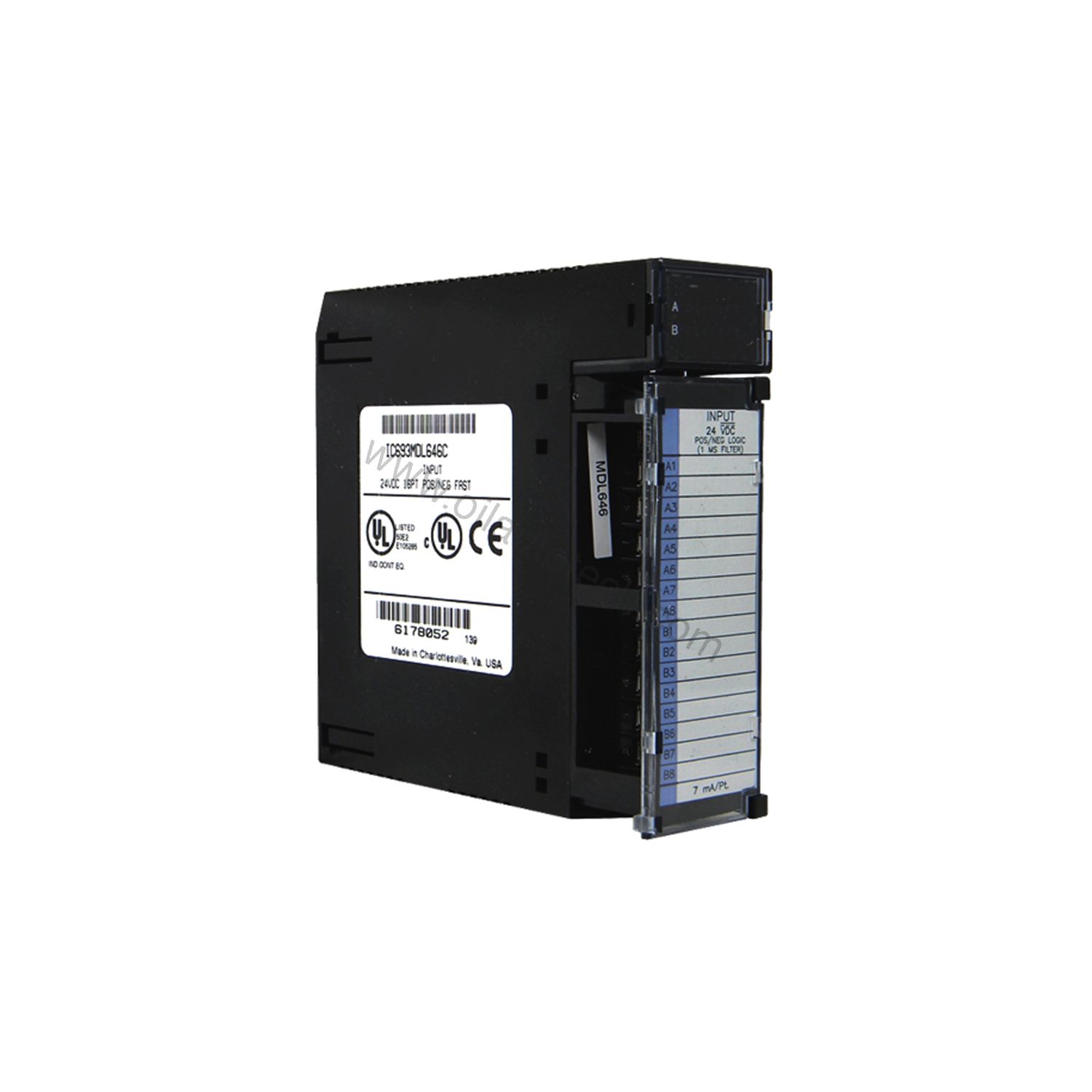

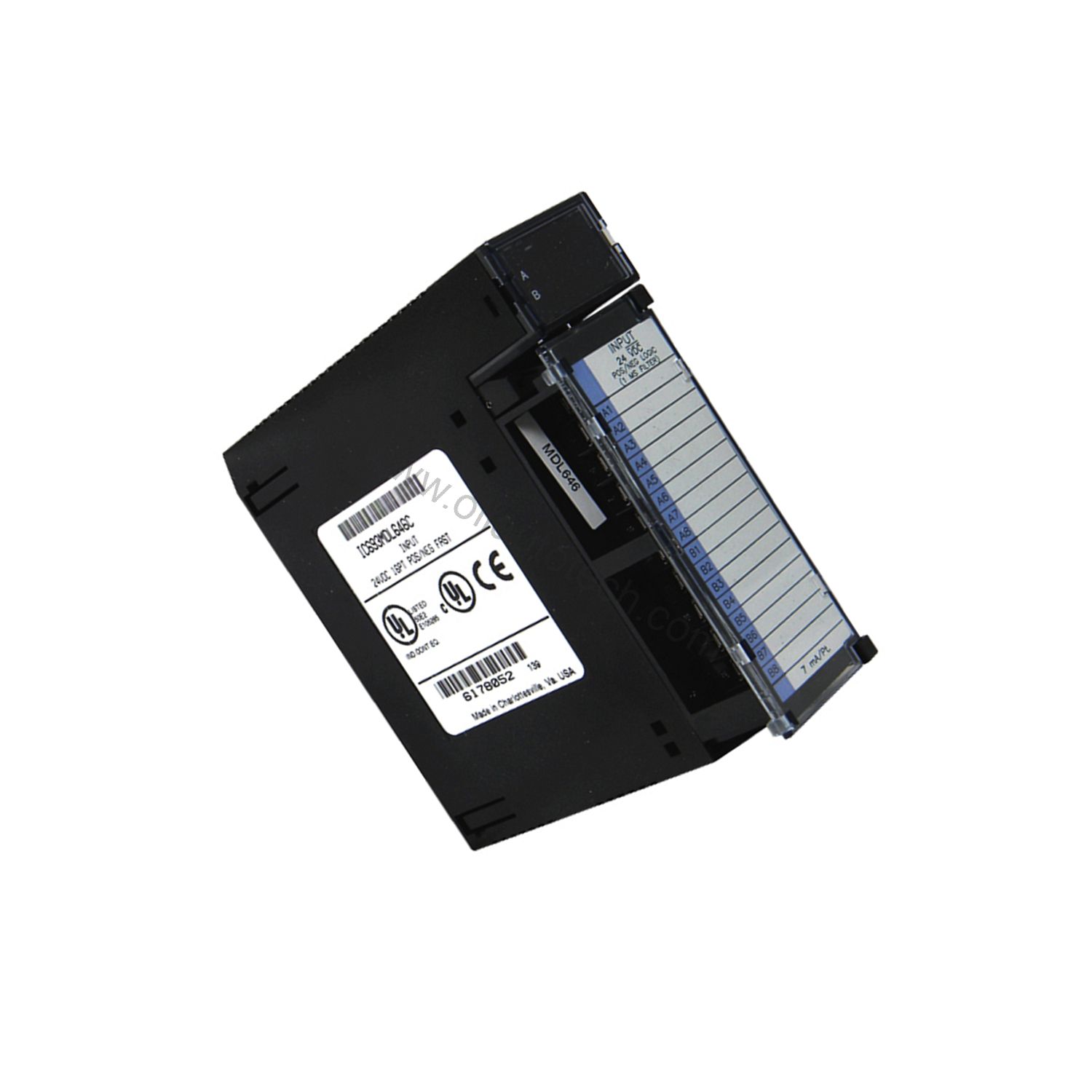

A failed discrete input card can idle an entire control cabinet. The IC693MDL646D from GE Fanuc (now under Emerson ownership) is the 16-channel 24 VDC input module built for Series 90-30 PLC racks. It reads field signals from pushbuttons, limit switches, proximity sensors and relay contacts, then passes clean logic to the processor. Revision D of this module remains a practical replacement path for plants still running Series 90-30 hardware.
Key Parameters That Matter on the Floor
Sixteen Channels, One Common
The module packs 16 input points into a single slot, grouped under one common. That density keeps cabinet space free and simplifies field wiring on crowded racks.
Wide Input Window
With a 0 to 30 VDC input range and a 24 VDC rated voltage, the card tolerates the voltage swings common on long cable runs in process areas. On-state voltage sits at 11.5 to 30 VDC, while off-state voltage stays at 0 to +5 VDC, giving a clear threshold between true signals and electrical noise.
Positive or Negative Logic
The IC693MDL646D accepts both positive and negative logic, so it adapts to sinking or sourcing field devices without extra interface hardware.
Speed Where It Counts
Typical response time is 1.5 ms on and 1.0 ms off. That suits high-speed discrete events such as position sensing, counting and fast interlock feedback.
Isolation and Environment
1500 V field-to-logic isolation separates plant wiring from backplane electronics. The module operates in ambient temperatures from 0 to +60°C.
Practical Fit Across Oil, Gas and Process Plants
Pump and valve monitoring. Input current of 7 mA typical at rated voltage keeps loading light on field circuits, so a single card can monitor many status contacts across a pump skid.
High-speed counting and position feedback. The 1.5 ms on-state response supports fast event capture on packaging, metering and conveyor lines.
Legacy Series 90-30 racks. Plants maintaining existing 90-30 installations can drop this module into a single slot without reworking the rack layout.
Integration Notes
This is a backplane module for Series 90-30 systems, not a network device. Field wiring lands on the module terminals, and the processor handles communications. Confirm your terminal block, cabling and rack compatibility with your supplier before ordering, since Series 90-30 installations vary.
Lifecycle Status: Read This First
The IC693MDL646D is discontinued (End of Sale), last verified 2026-09. Availability now depends on remaining stock and the secondary market. If you run Series 90-30 hardware, plan replacements before a failure forces an unplanned outage. Contact Oil AutoTech today for pricing and availability, and ask about current stock and alternative options for your application.
What to Verify Before You Buy
- Confirm your rack is Series 90-30 and the slot is free.
- Match your field devices to positive or negative logic.
- Check that field voltages fall inside the 0 to 30 VDC range.
- Confirm ambient conditions stay within 0 to +60°C.
- Ask about terminal blocks and mating hardware for your existing wiring.
Hands-on technical selection help is available if you are unsure which revision or module fits your rack.
