Why the TM258LD42DT Is a Smart Investment for Modern Production Lines
Manufacturers constantly seek ways to reduce downtime, cut energy costs, and boost throughput without replacing entire control systems. The TM258LD42DT from Schneider Electric directly addresses these business pressures. As a compact logic controller in the Modicon M258 series, it combines high-speed processing with flexible I/O and built-in Ethernet connectivity. This makes it a compelling choice for companies that want to modernize legacy machines while protecting their capital budget.
Key Specifications That Drive Business Value
The TM258LD42DT packs a dual-core ARM Cortex-A8 processor into a compact housing. One core handles program tasks while the other manages communication tasks, so machine cycle times stay consistent even when data traffic increases. With a scan speed of 0.022 µs per Boolean instruction, the controller executes over 45,000 Boolean instructions per millisecond. This speed translates directly into higher machine throughput and tighter process control.
The controller offers 26 digital inputs and 16 transistor outputs. Eight of those inputs are fast high-speed counter channels rated at 100 kHz, and four outputs are fast reflex outputs. These features support precise positioning, high-speed counting, and rapid response in packaging, labeling, and assembly applications. The 24 VDC power supply accepts a wide range of 19.2 to 28.8 V, which helps the controller tolerate real-world voltage fluctuations without additional conditioning equipment.
Comparison with Similar Control Solutions
When evaluating the TM258LD42DT against other compact PLCs, several practical advantages stand out. The table below highlights key differences based on the available specifications.
| Feature | TM258LD42DT | Typical compact PLC |
|---|---|---|
| Processor | Dual-core ARM Cortex-A8 | Single-core processor |
| Scan speed | 0.022 µs per Boolean instruction | Slower scan speeds |
| Digital inputs | 26 (8 fast HSC at 100 kHz) | Fewer fast inputs |
| Digital outputs | 16 transistor, 4 fast reflex | Relay or slower transistor outputs |
| Built-in Ethernet | Yes, RJ45 | Often optional |
| Expansion | Up to 7 TM5/TM2 modules, 2400 I/O | Limited expansion |
This comparison shows that the TM258LD42DT delivers more integrated functionality per unit. That reduces the need for additional communication modules and simplifies panel design. For system integrators and maintenance teams, fewer components mean lower wiring costs and faster commissioning.
Real-World Applications and Cost Savings

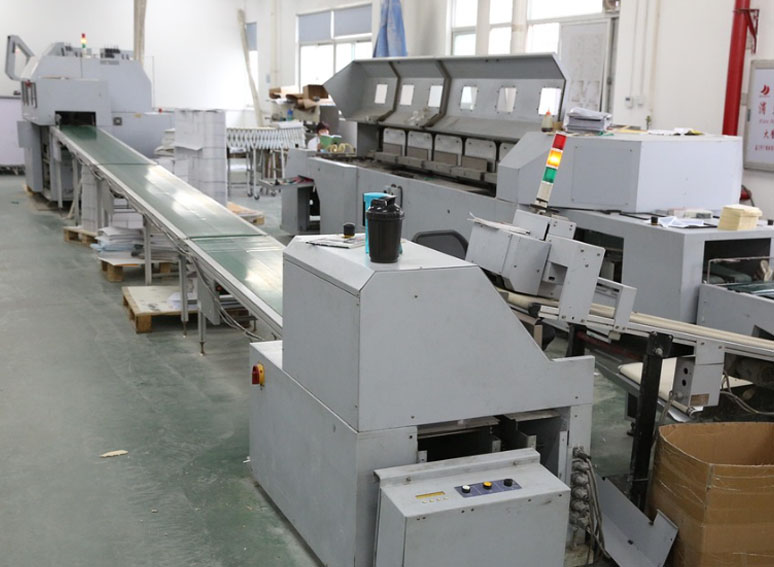

In a typical packaging line, the TM258LD42DT can manage product indexing, label placement, and case sealing. The 100 kHz high-speed counters capture encoder signals from conveyor drives, while the fast reflex outputs trigger glue guns or cutters with minimal delay. Because the controller includes Modbus TCP and CANopen master protocols, it connects easily to variable frequency drives, remote I/O, and operator panels. This reduces the engineering time required to integrate third-party devices.
In a typical automotive assembly application, the controller coordinates pneumatic actuators, sensors, and safety relays. The dual-core architecture ensures that communication with a supervisory system does not slow down the machine logic. As a result, cycle times remain predictable, and scrap rates drop. The 24 VDC supply and IP20 rating suit cabinet mounting, and the 0 to 55 °C operating range covers most factory environments. With derating, the controller can operate up to 60 °C, providing extra margin in hot climates.
Integration and Expansion Without Headaches
The TM258LD42DT includes one Ethernet RJ45 port, one CANopen SUB-D9 port, one RS-485 serial link, and one USB-B mini port for programming. These built-in interfaces eliminate the cost of separate communication cards. Two free PCI slots accept optional communication or function modules, and the controller supports up to seven TM5/TM2 expansion modules. That scalability allows you to start with 42 I/O and grow to as many as 2400 I/O as production needs change. The programming software, SoMachine or EcoStruxure Machine Expert, provides a familiar environment for Schneider users.
Supply Assurance from Oil AutoTech
Oil AutoTech specializes in industrial automation spare parts and maintains a deep inventory of Schneider Electric components. Our team verifies every part number and provides technical documentation to support your integration. Because the TM258LD42DT is an active lifecycle product, you can plan long-term maintenance with confidence. We help you avoid costly line stoppages by shipping genuine parts quickly.
Frequently Asked Questions
What is the scan speed of the TM258LD42DT?
The controller executes 0.022 µs per Boolean instruction, which equals more than 45,000 Boolean instructions per millisecond. This speed supports demanding motion and interlock tasks.
Can the TM258LD42DT connect to a plant network?
Yes. It includes a built-in Ethernet RJ45 port that supports Modbus TCP. It also has a CANopen master port and an RS-485 serial link for Modbus RTU or ASCII communication.
How many expansion modules can I add?
You can add up to seven TM5 or TM2 expansion modules, reaching a maximum of 2400 I/O. Two free PCI slots are also available for optional communication or function modules.
What is the power consumption of this controller?
The TM258LD42DT consumes 13.03 W from a 24 VDC supply. The input voltage range is 19.2 to 28.8 V, which provides tolerance for industrial power variations.
Conclusion: A Future-Proof Investment
The TM258LD42DT combines fast processing, flexible I/O, and robust communication in a compact package. For businesses focused on ROI, it reduces integration costs, minimizes downtime, and scales with changing production demands. As an active Modicon M258 product, it offers a reliable foundation for years of operation. Contact Oil AutoTech today to secure your TM258LD42DT and keep your automation running at peak efficiency.
