Product Overview

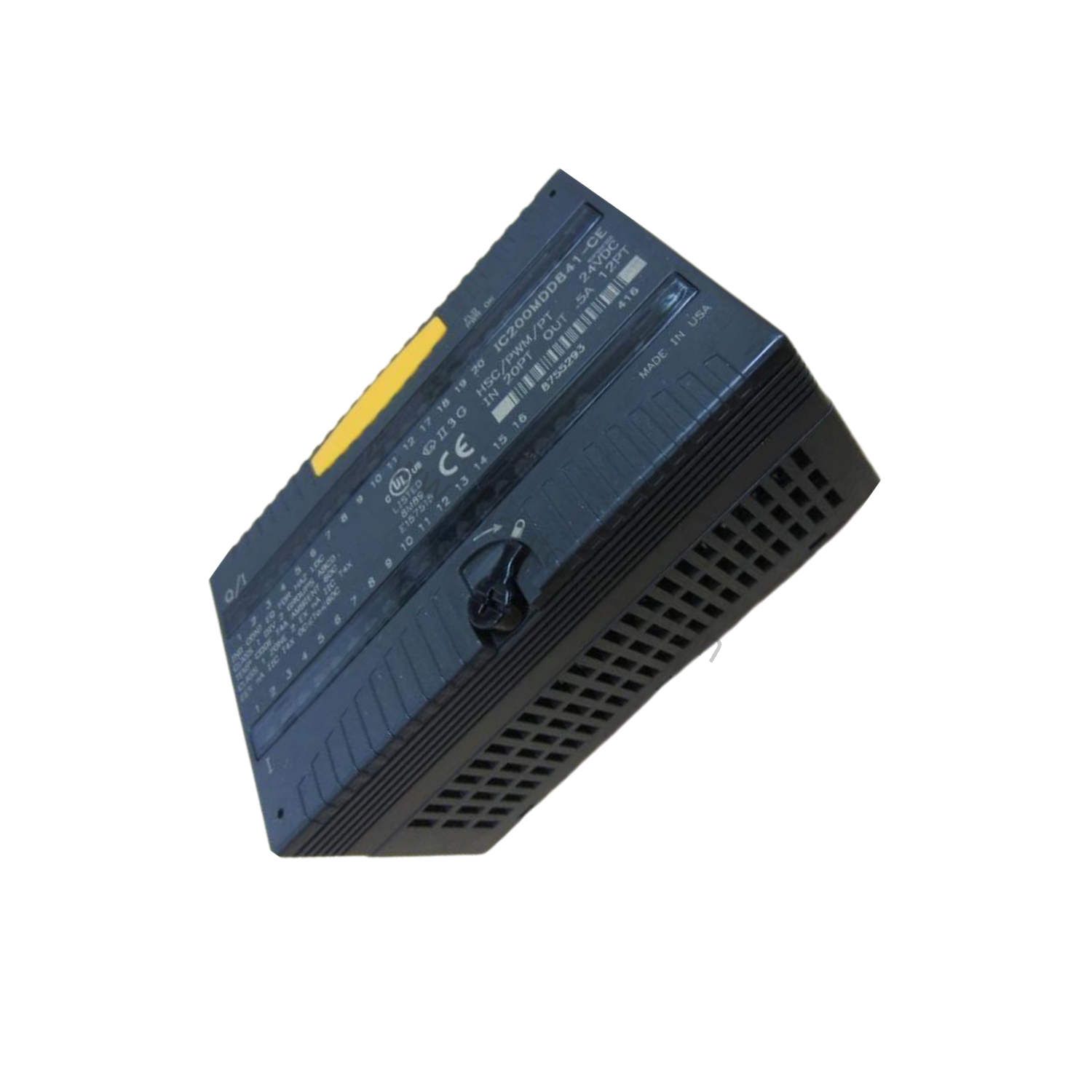

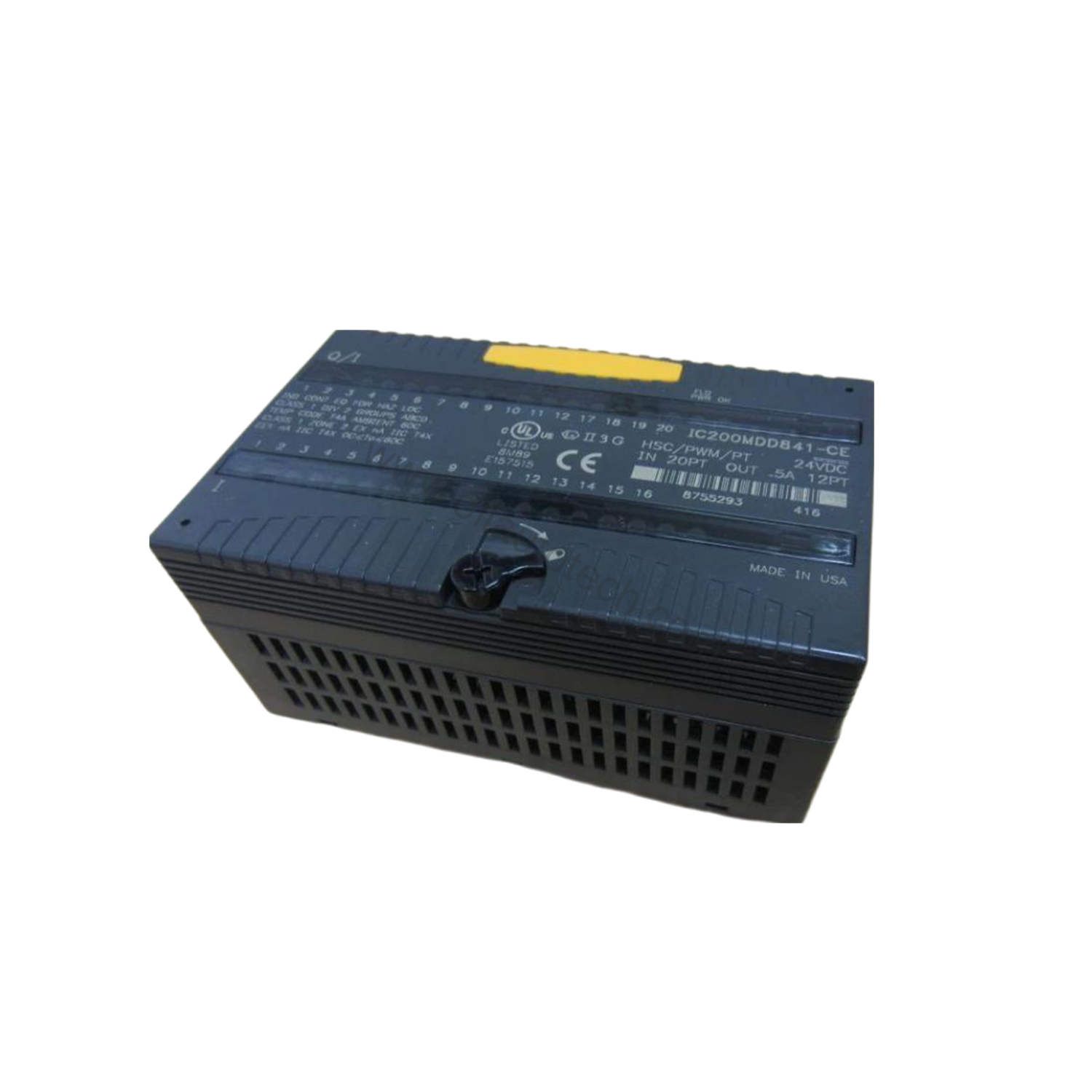

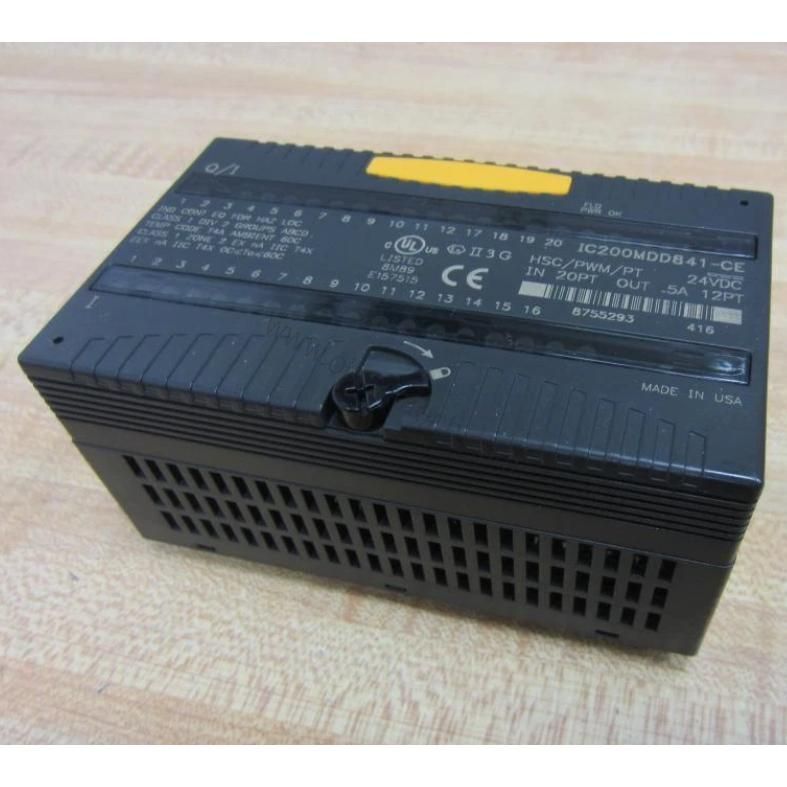

Downtime on a discrete control line rarely waits for a purchase order. The IC200MDD841-AD is a GE VersaMax 24 VDC mixed discrete module that packs 20 inputs, 12 outputs and 4 configurable channels onto a single carrier, so one slot covers both sensing and switching duties. Emerson now owns the GE Fanuc / GE Intelligent Platforms line, and this module remains a practical building block for oil, gas and general industrial automation panels.
Because the unit is available in aftermarket channels rather than through verified official production, buyers should confirm current lifecycle status and availability with Oil AutoTech before ordering. That is exactly where fast-dispatch spares and hands-on technical selection help pay off.
Key Parameters at a Glance
Inputs and Outputs
The 20 input channels accept 24 VDC nominal devices across an 18-30 VDC range, with on-state current between 3.0 and 8.0 mA and off-state current of 0-0.5 mA. Input impedance sits at 9.6 kΩ max, and input response time is 7 ms. The 12 outputs switch 24 VDC at up to 0.5 A load current each, with a fast 0.5 ms response time. Inrush current reaches 2.0 A max for 100 ms, which matters when driving small solenoids or lamp loads.
Backplane and Environment
The module draws 30 mA max at 5 V DC from the backplane. It operates from 0 to +60°C ambient, stores from -40 to +85°C, and tolerates 5 to 95% non-condensing humidity. The IP20 rating suits clean cabinet interiors. Dimensions are 66.8 × 110 × 50 mm for the module body, excluding the carrier.
Where This Module Fits
A gas compressor station often needs discrete status inputs from pressure switches plus outputs to pilot valves. The 20/12 channel split handles that mix without a second card. Water treatment skids use the 4 configurable channels for high-speed counting or pulse-train duties, while packaging lines exploit the 0.5 ms output response for fast reject gates. In each case, one module replaces two single-function cards, cutting panel space and spare-part count.
Installation and Setup Notes
Mount the module on its VersaMax carrier and confirm the 5 V DC backplane supply before applying field power. Keep 24 VDC input and output wiring separated from noisy AC runs. Because there is no channel-to-channel isolation and no internal fuses, external fusing and sensible grounding are the installer’s responsibility. Match input device voltage to the 18-30 VDC window, and size output loads below the 0.5 A per-channel limit.
Reliability and Maintenance
Inspect terminal torque and connector seating at each scheduled shutdown. Watch for heat buildup above 60°C ambient, since that is the operating ceiling. Dust and condensation are the main enemies in oil and gas cabinets, so keep the IP20 enclosure closed and filtered. Carrying one ready-to-ship spare on the shelf is cheaper than a stalled line, and fast dispatch, worldwide keeps recovery time short.
Buyer’s Checklist
Before ordering, verify your carrier type, confirm field device voltages fall inside the 18-30 VDC input range, and total your output load against the 0.5 A limit. Decide whether you need the configurable channels for HSC, PWM or pulse-train functions. Contact Oil AutoTech today for pricing and availability.
