When a Legacy Panel Demands a Proven AC Output Module
A plant engineer faced a familiar problem: an aging Modicon Quantum rack controlling AC solenoid valves and contactors needed a reliable 16-point output module, and the original 140DAO84220 had reached End of Sale. The challenge was not finding a replacement architecture. It was sourcing the exact module that keeps the existing wiring, backplane, and control logic running without a full I/O redesign.

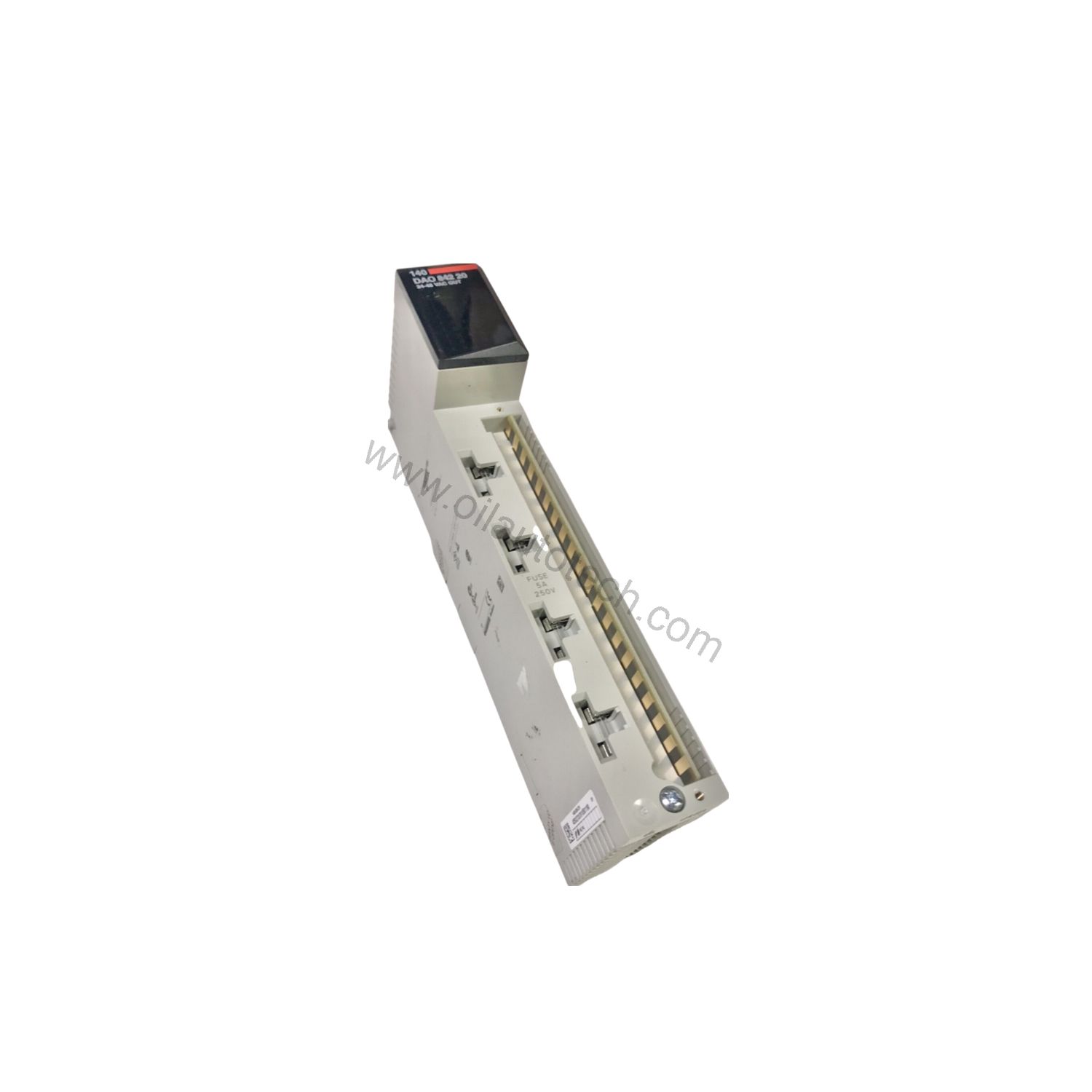

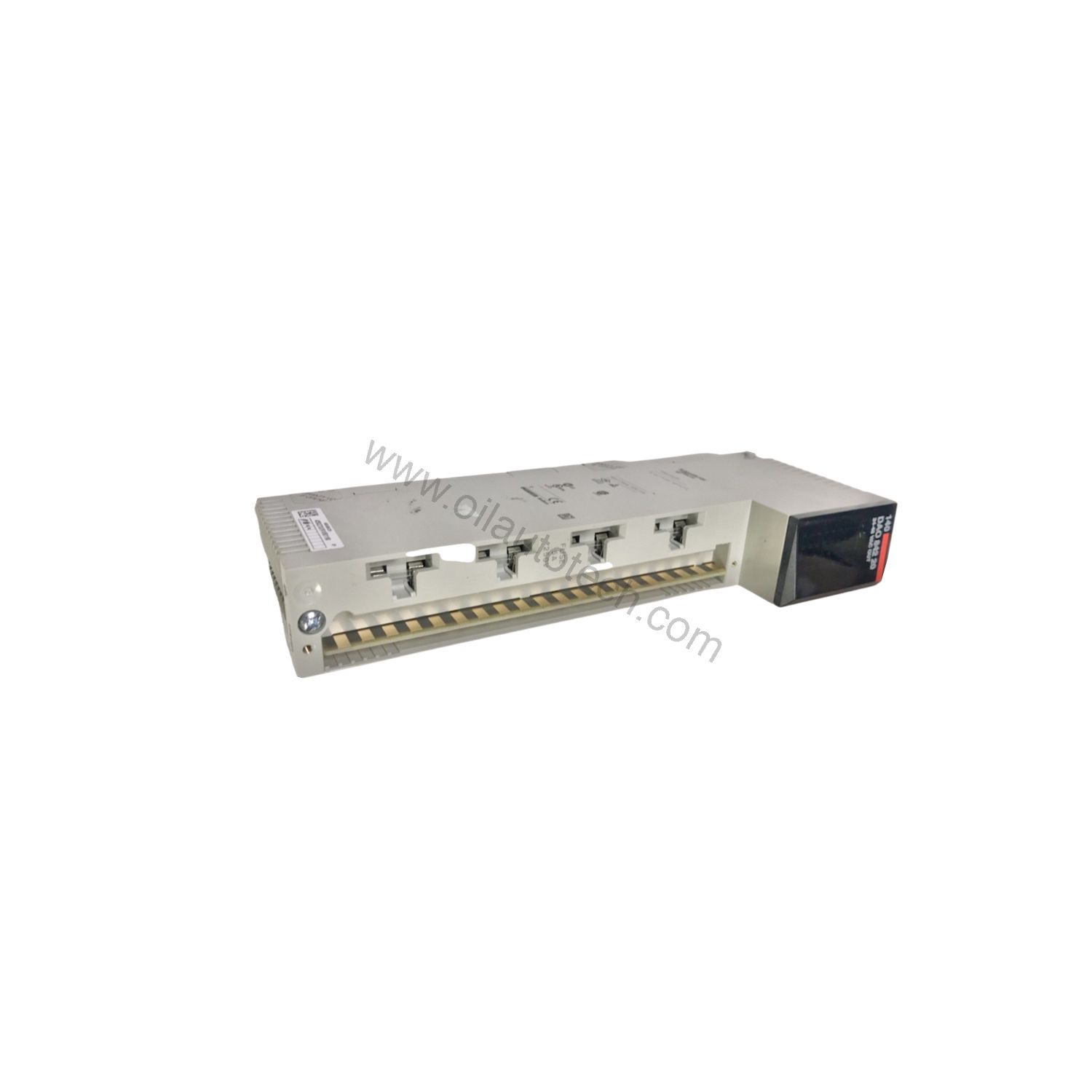

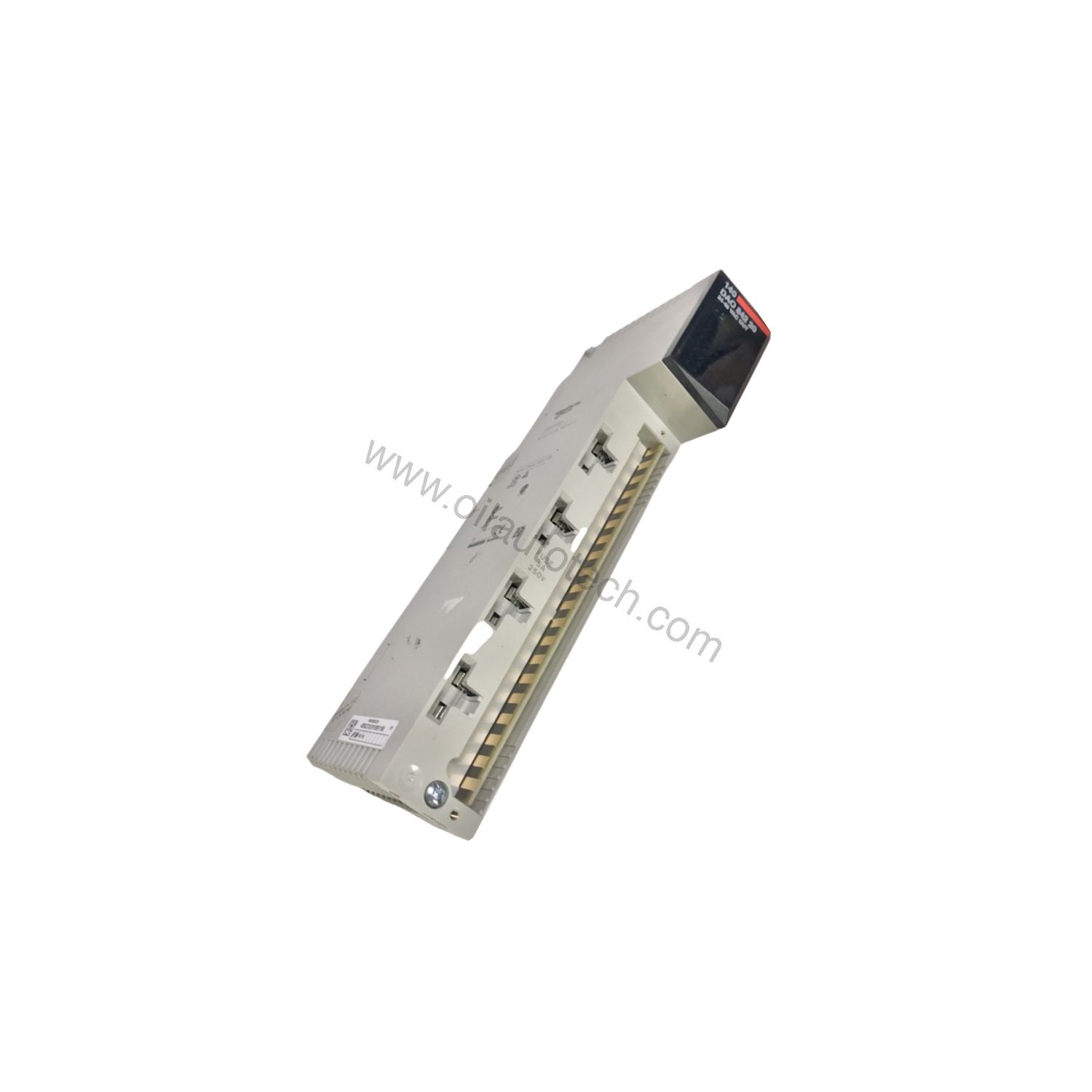

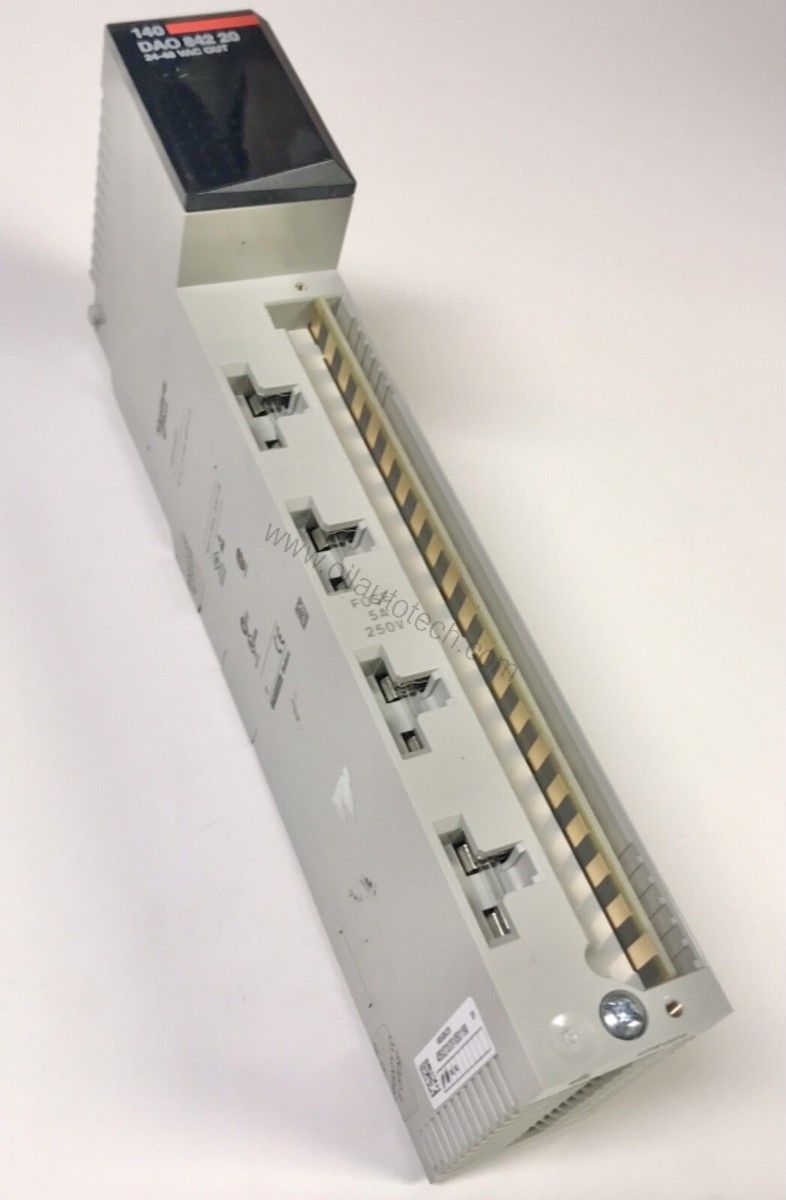

That is where the Schneider Electric 140DAO84220 still earns its place. This Modicon Quantum discrete output module delivers 16 AC Triac outputs arranged in four isolated groups of four, switching loads from 20 to 56 V AC. For oil, gas, and industrial automation sites running legacy Quantum systems, it remains a practical, ready-to-ship spare.
Technical Specifications That Matter on the Floor
The 140DAO84220 is built around bidirectional thyristor (Triac) outputs, which means it switches AC loads cleanly at zero-crossing. Three parameters drive most selection decisions:
- Output current: 4 A rms per output, 4 A rms per group, and 16 A rms per module. This supports direct switching of many AC pilot devices and small contactors without interposing relays.
- Voltage range: 20 to 56 V AC. Confirm your field devices fall inside this window before ordering.
- Response time: 0.5 ms typical at zero-crossing, fast enough for standard discrete control loops.
Group-to-group isolation separates the four output groups, which helps contain fault propagation. Built-in diagnostics for blown fuse and loss of field power report through LED indication, giving maintenance teams a fast visual path to the fault.
Where This Module Fits
In oil and gas terminals, the 140DAO84220 commonly drives AC solenoid valves, indicator lamps, and small motor starters. In water treatment and packaging lines, it handles AC relay coils and audible alarms. Because the module occupies a single slot and draws 350 mA at 5 V DC from the backplane, it fits existing Quantum racks without re-engineering the power budget.
Integration Note
When wiring this module into a Quantum system tied to fieldbus networks, confirm cabling and any gateway requirements with your supplier. The 140DAO84220 itself is a backplane I/O module; network adaptation depends on your specific Quantum configuration.
Installation and Practical Setup
Mount the module in one available Quantum slot and seat it firmly on the backplane. Verify the 5 V DC backplane supply and total load current, since power consumption follows 1.85 W plus 1.1 V times total load current. Keep field wiring separated by group to preserve the group-to-group isolation. The IP20 rating means the module belongs inside a protected enclosure, away from dust and moisture ingress.
Reliability and Lifecycle Reality
This module is discontinued (End of Sale), last verified in September 2026. That makes sourcing discipline critical. Inspect LED diagnostics periodically, check fuse integrity, and confirm field power at each group. Because replacement stock is finite, keeping a spare on the shelf protects uptime. Oil AutoTech specializes in fast-dispatch spares for oil, gas, and industrial automation, so you can secure the 140DAO84220 before a failure forces downtime.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
What to Confirm Before You Buy
Check your load voltage against the 20 to 56 V AC range, confirm per-output and per-group current draw, and verify you have a free Quantum slot. If you run mixed I/O, ask about companion modules for the same rack. Contact Oil AutoTech today for pricing and availability.
