Why the BMXDDO3202K Belongs in Your Control Cabinet

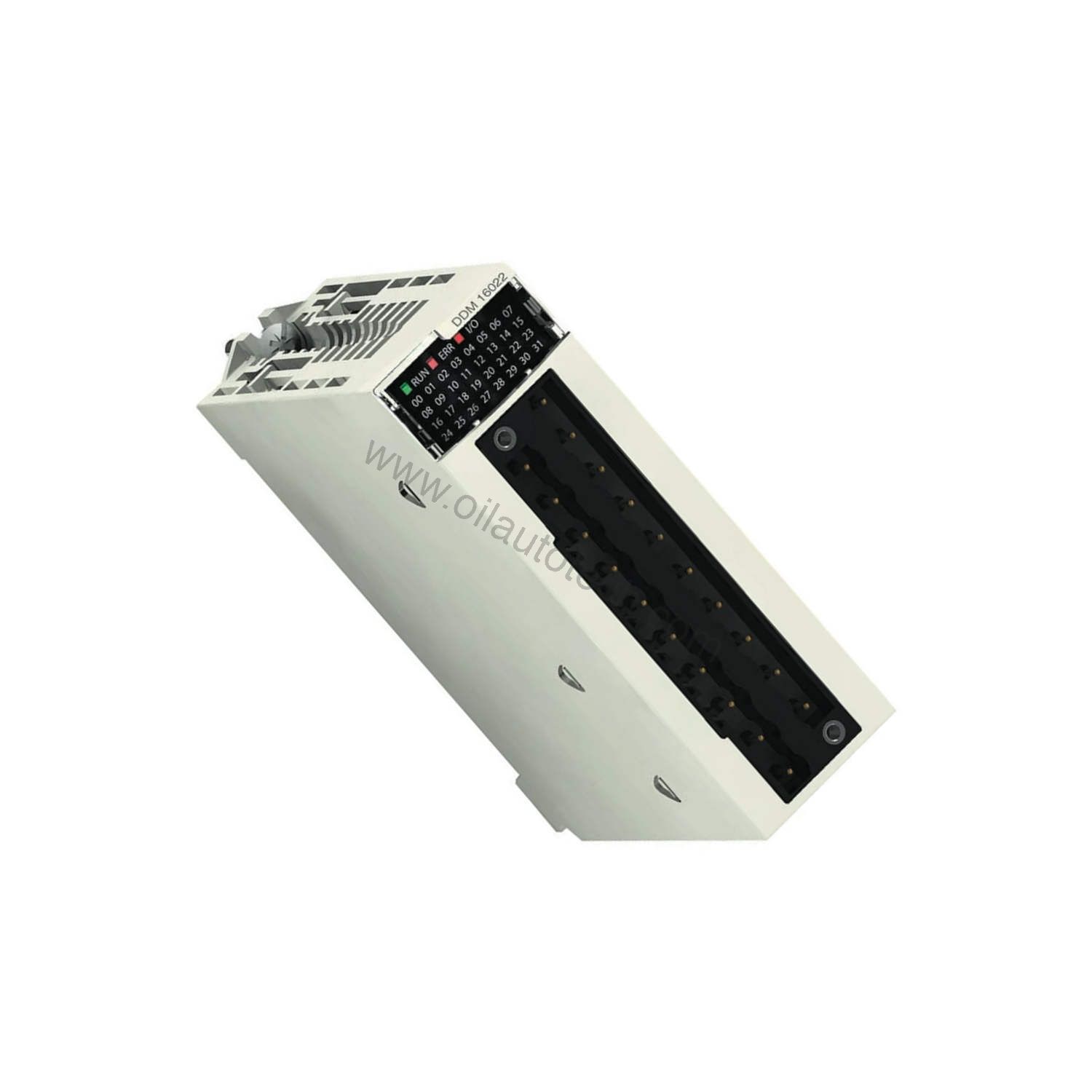

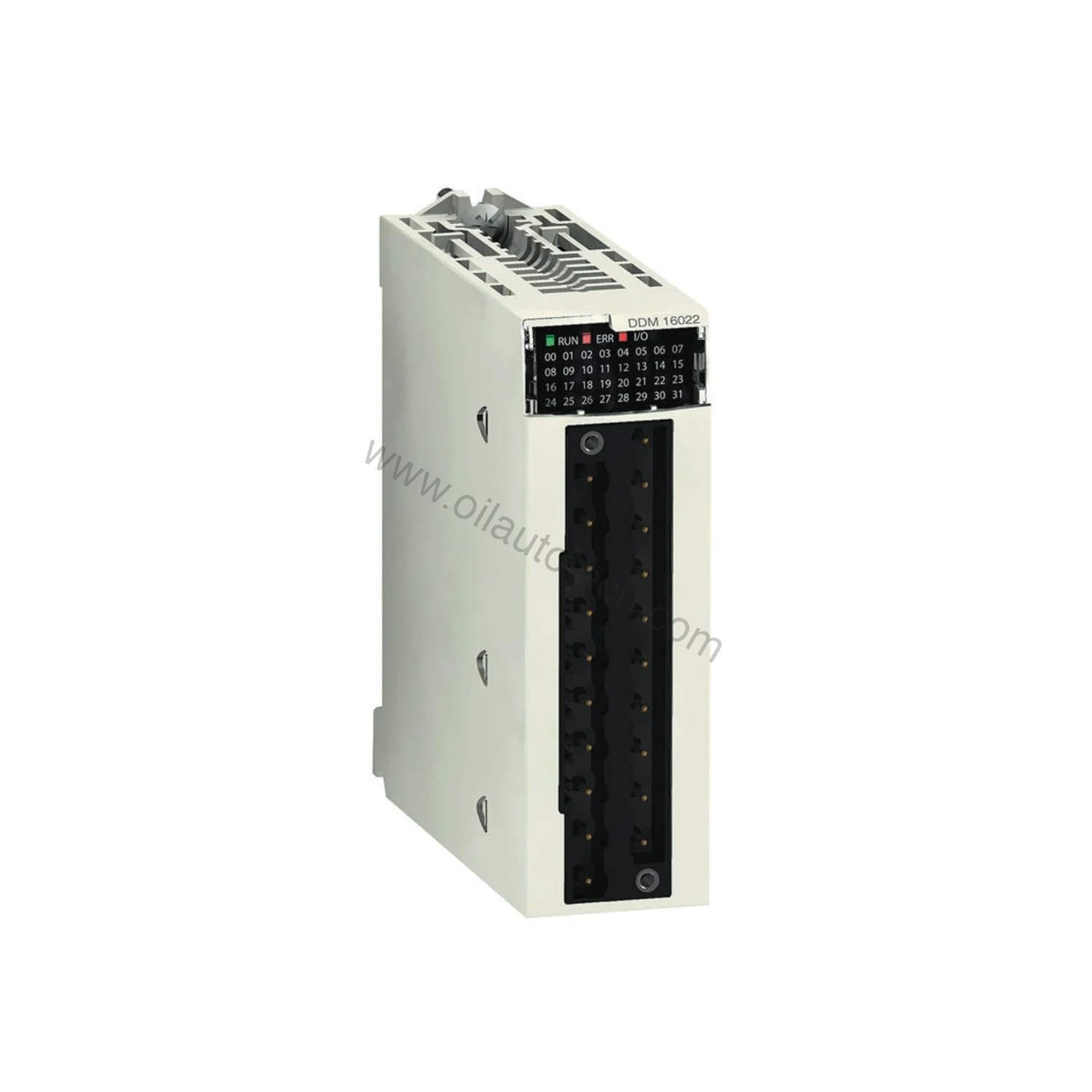

When a machine needs more outputs than cabinet space allows, the BMXDDO3202K from Schneider Electric solves the problem in one slot. This Modicon X80 discrete output module packs 32 transistor channels into a 28 mm wide housing, so you gain I/O density without expanding the enclosure. For panel builders and maintenance teams, that means fewer modules, simpler wiring, and faster commissioning.
Key Parameters That Matter on the Floor
32 Channels at 12/24 V DC
Each channel switches 0.55 A, with a 17.6 A module maximum. That covers indicator lamps, small solenoids, relay coils, and pilot valves directly, reducing the need for interposing relays.
0.3 ms Response Time
The BMXDDO3202K reacts in 0.3 ms, which suits high-speed sorting, packaging, and material handling where slow outputs cost cycle time.
Group-to-Group Isolation
Isolation between channel groups limits fault propagation. A shorted field device affects one group instead of the whole module, keeping the line running.

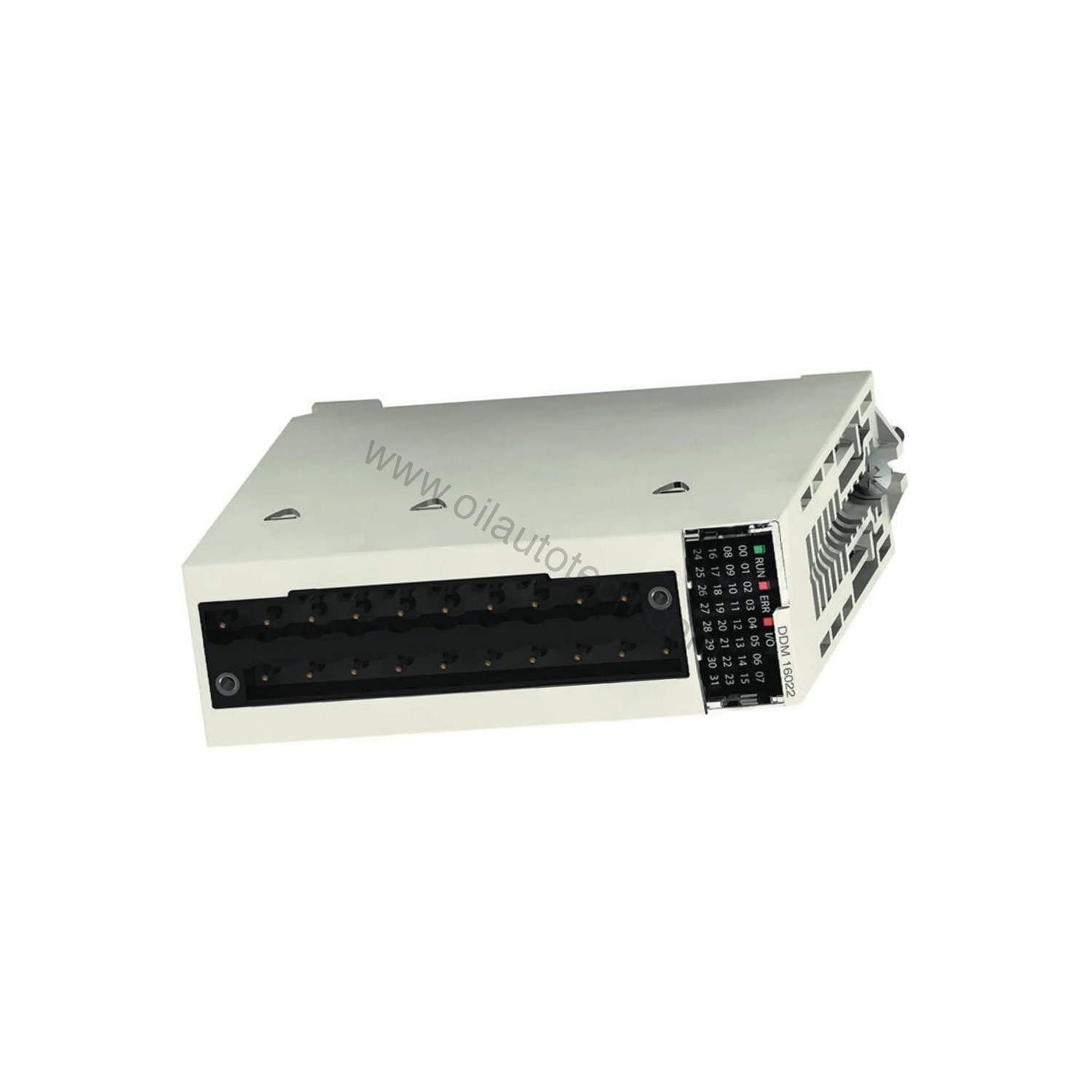

40-Pin High-Density Terminal Block
The 40-pin connector keeps wiring compact. Label the block carefully during installation, because 32 channels leave little room for error.
Built for Uptime
An MTBF of 833,000 h reflects a design meant for continuous duty. The module status LED gives technicians a fast first check when a channel misbehaves.
Where This Module Fits
In oil and gas terminals, the BMXDDO3202K drives valve pilot solenoids and status beacons across skids. In water treatment, it commands pump contactors and alarm lamps. In general manufacturing, it handles diverter gates and conveyor actuators. Because the module supports up to 3 channels in parallel, you can combine outputs when a load needs more current than a single channel provides.
Installation Notes for Engineers
Mount the module on the Modicon X80 backplane and confirm the field supply is 12/24 V DC before energizing. Keep the 0°C to +60°C operating range in mind; cabinets in hot climates need adequate ventilation. The IP20 rating means the module belongs inside a protected enclosure. Field wiring should follow your site’s electrical code and the manufacturer’s manual.
Integration With M340 and M580
The BMXDDO3202K shares the Modicon X80 I/O platform used by both M340 and M580 controllers, so one spare covers multiple racks. Bus current draw is 130 mA at 24 V DC and power consumption is 3.1 W, which keeps power budget calculations simple. When wiring into fieldbus networks, confirm gateway and cable requirements with your supplier before ordering.
Selection Checklist Before You Buy
Verify your controller platform, required channel count, and load current per output. Confirm the 40-pin terminal block and field supply match your panel design. If you need spares when you need them, Oil AutoTech offers fast dispatch, worldwide, plus hands-on technical selection help. Contact Oil AutoTech today for pricing and availability.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
