Product Overview

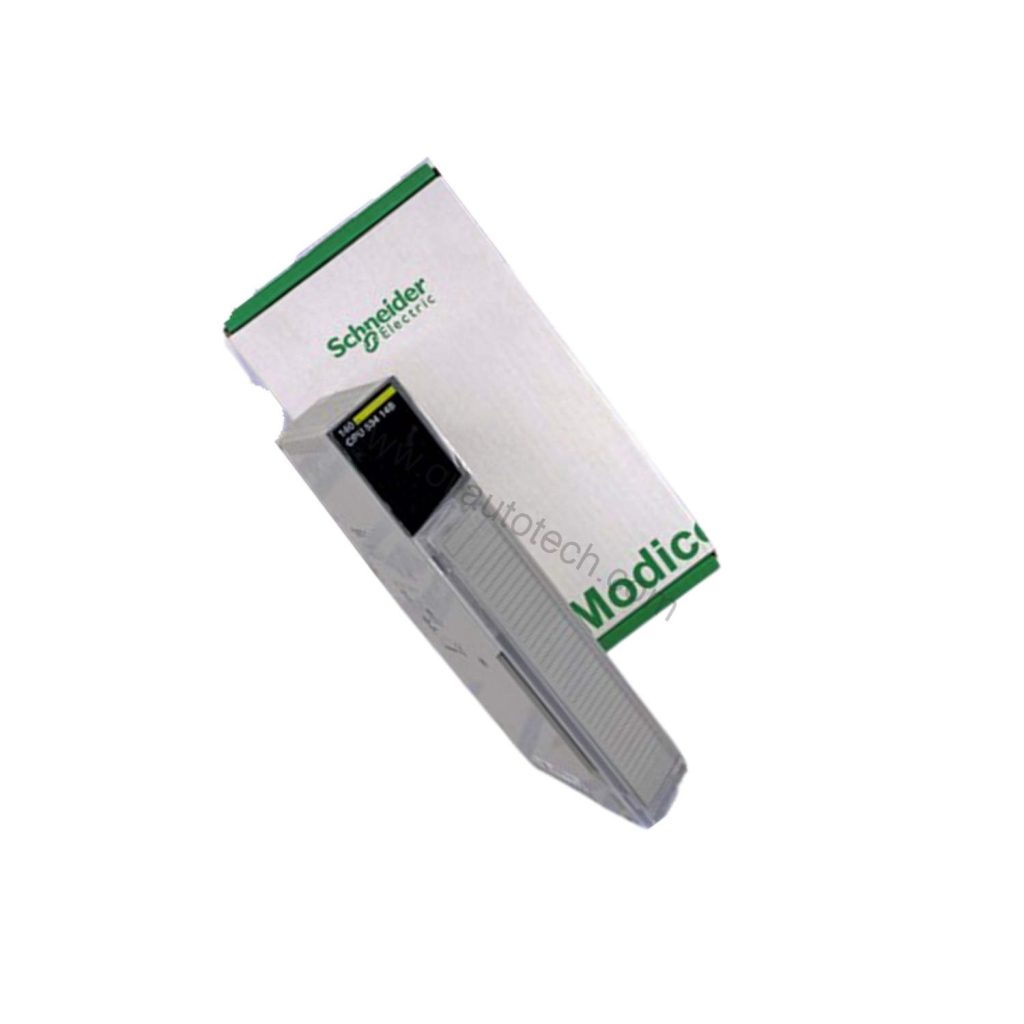

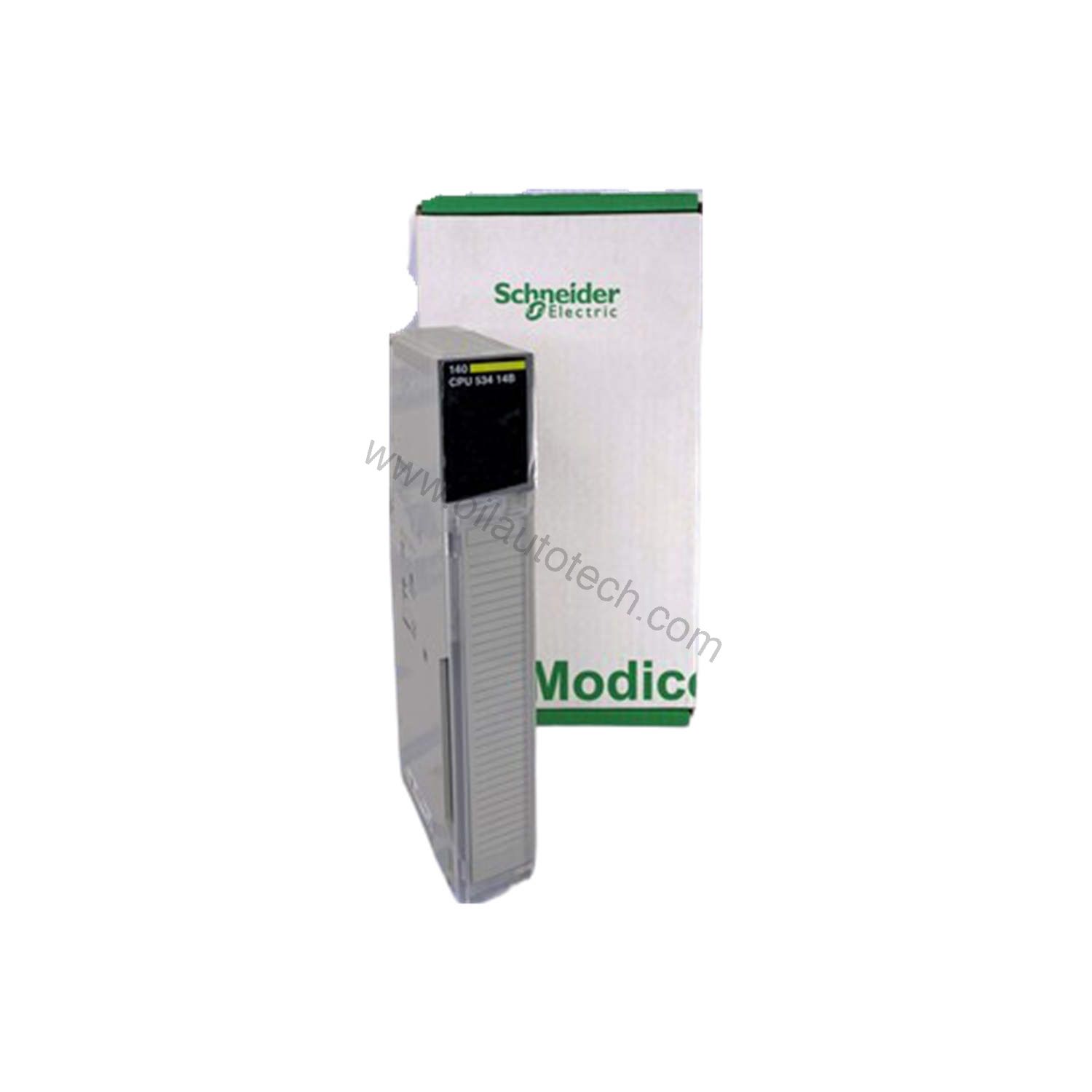

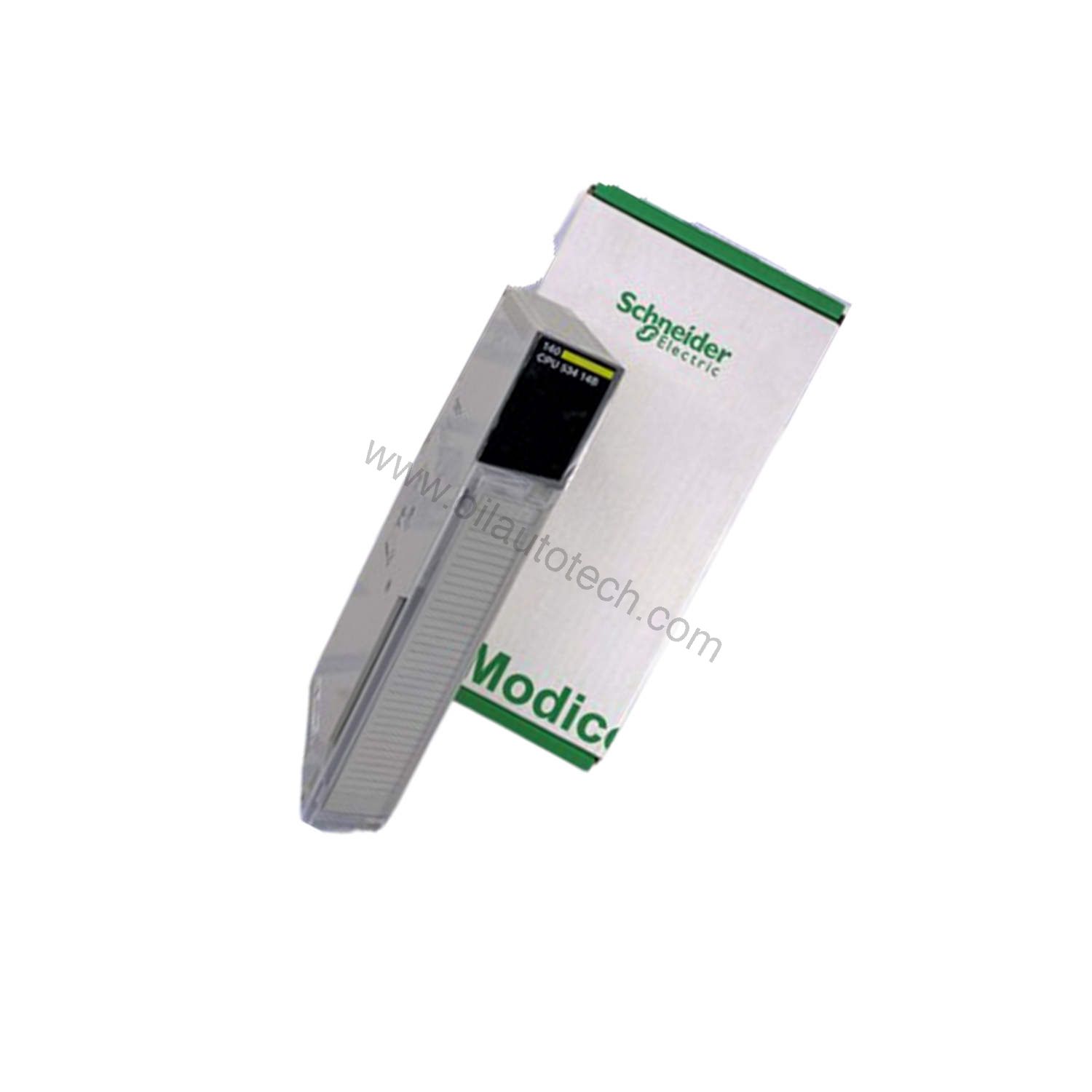

The Schneider Electric 140CPU53414BC is a Modicon Quantum processor built for demanding industrial control. With a 100 MHz clock frequency and 2972 kB internal RAM, it handles complex logic and data tasks efficiently. The watchdog timer at 250 ms adds a layer of reliability, while the key switch function supports secure operation. This processor suits applications where uptime and predictable performance matter.
Technical Specifications
| Specification | Value |
|---|---|
| Clock Frequency | 100 MHz |
| Internal RAM | 2972 kB |
| Watchdog Timer | 250 ms |
| I/O Words/Network | 500 I / 500 O distributed |
| Drops/Network | 63 distributed |
| Number of Drops | 31 remote |
| Bus Current Requirement | 1250 mA |
| Battery Type | Lithium 10 µA 420 µA |
| Battery Capacity | 1.2 Ah |
| Operating Temperature | 0 to 60 °C |
| Weight | 0.85 kg |
Reliability and Maintenance
From a maintenance engineer’s perspective, the 140CPU53414BC offers practical serviceability. The lithium battery has a 10-year life, reducing replacement frequency. The conformal coating (Humiseal 1A33) protects against environmental contaminants, extending service intervals in harsh plant conditions. The processor withstands electrostatic discharge at 4 kV contact and 8 kV air, and resists electromagnetic fields up to 10 V/m. These ratings mean fewer nuisance faults in electrically noisy areas. For maintenance, inspect connections periodically and follow the manufacturer’s safety manual. No specific cleaning or disassembly procedures are recommended here.
Integration and Compatibility
The 140CPU53414BC integrates with the Modicon Quantum automation platform. It supports distributed I/O networks with up to 63 drops and remote drops up to 31. Software support includes ProWORX 32 and Concept. When wiring into fieldbus networks, an external gateway or connection module may be required; confirm cables and gateways with your supplier. The processor operates from 0 to 60 °C and at altitudes up to 5000 m, making it suitable for diverse industrial environments. For hands-on technical selection help, contact Oil AutoTech.
Selection Guide
Before purchasing the 140CPU53414BC, verify your existing Quantum rack compatibility and bus current capacity (1250 mA required). Check that your application’s I/O count fits within 500 I/O words per network. The key switch function provides operational security. If you need replacement spares for oil, gas, or industrial automation, Oil AutoTech offers fast dispatch, worldwide. Contact Oil AutoTech today for pricing and availability.
Frequently Asked Questions
Q: What is the clock frequency of the 140CPU53414BC?
A: The processor runs at 100 MHz.
Q: How much internal RAM does it have?
A: It includes 2972 kB of internal RAM.
Q: What is the battery life?
A: The lithium battery has a 10-year life.
Q: What is the operating temperature range?
A: It operates from 0 to 60 °C.
Q: Does it support remote drops?
A: Yes, it supports up to 31 remote drops and 63 distributed drops per network.
