Product Overview

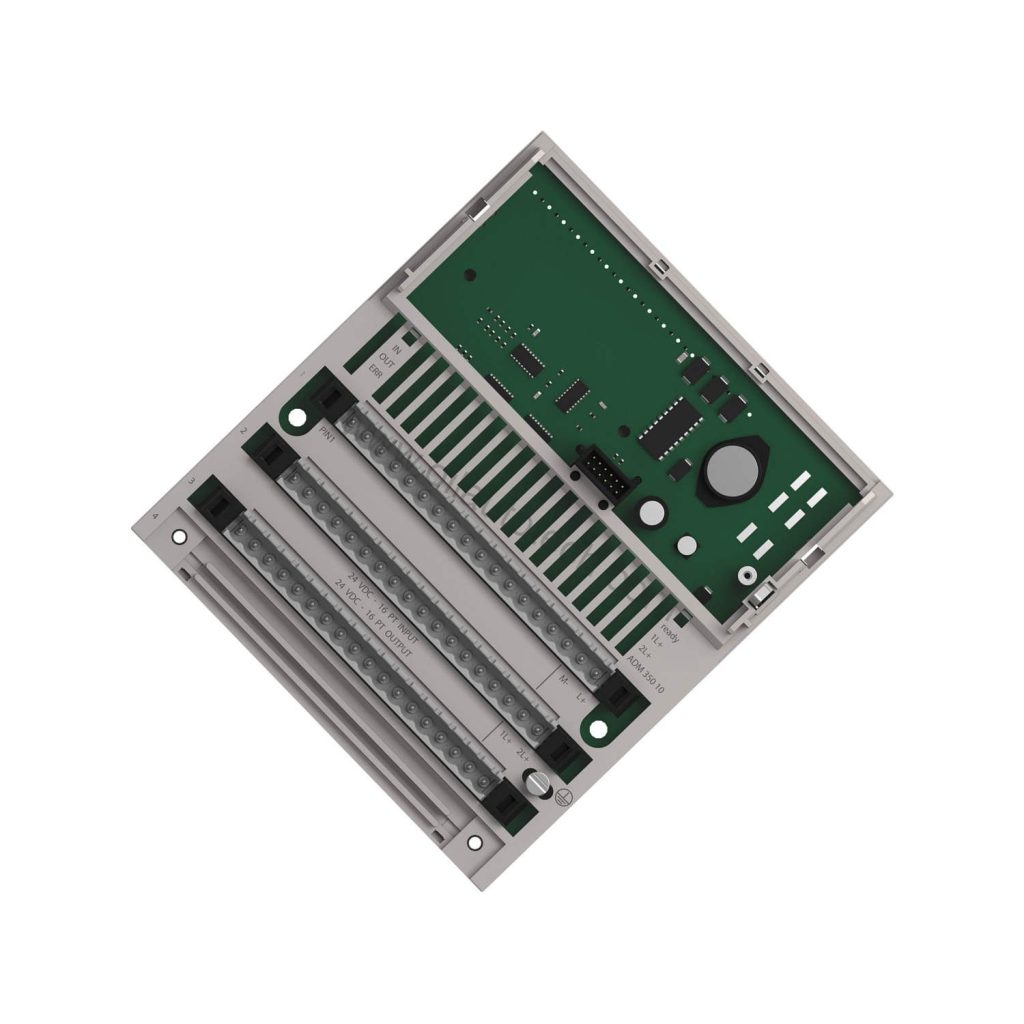

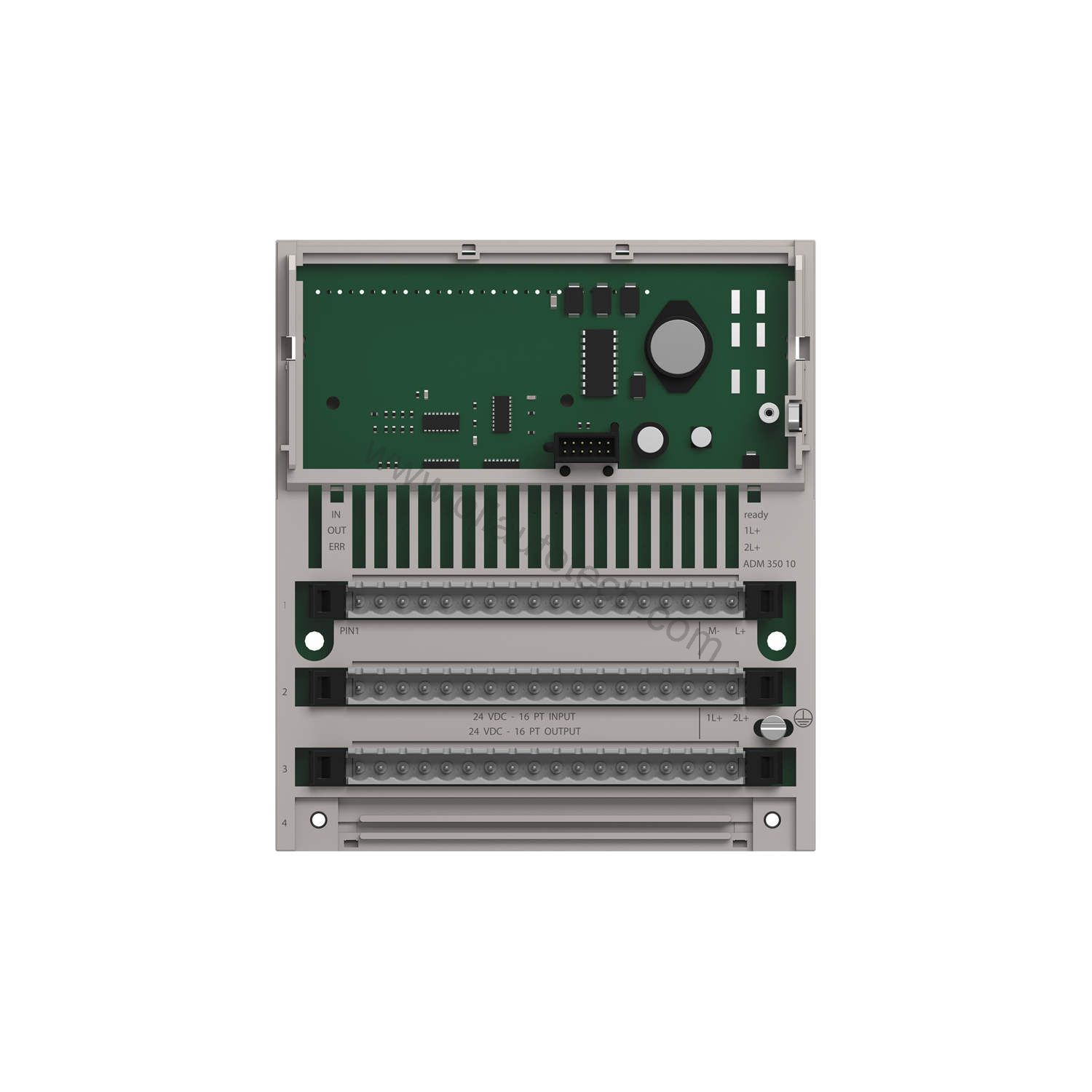

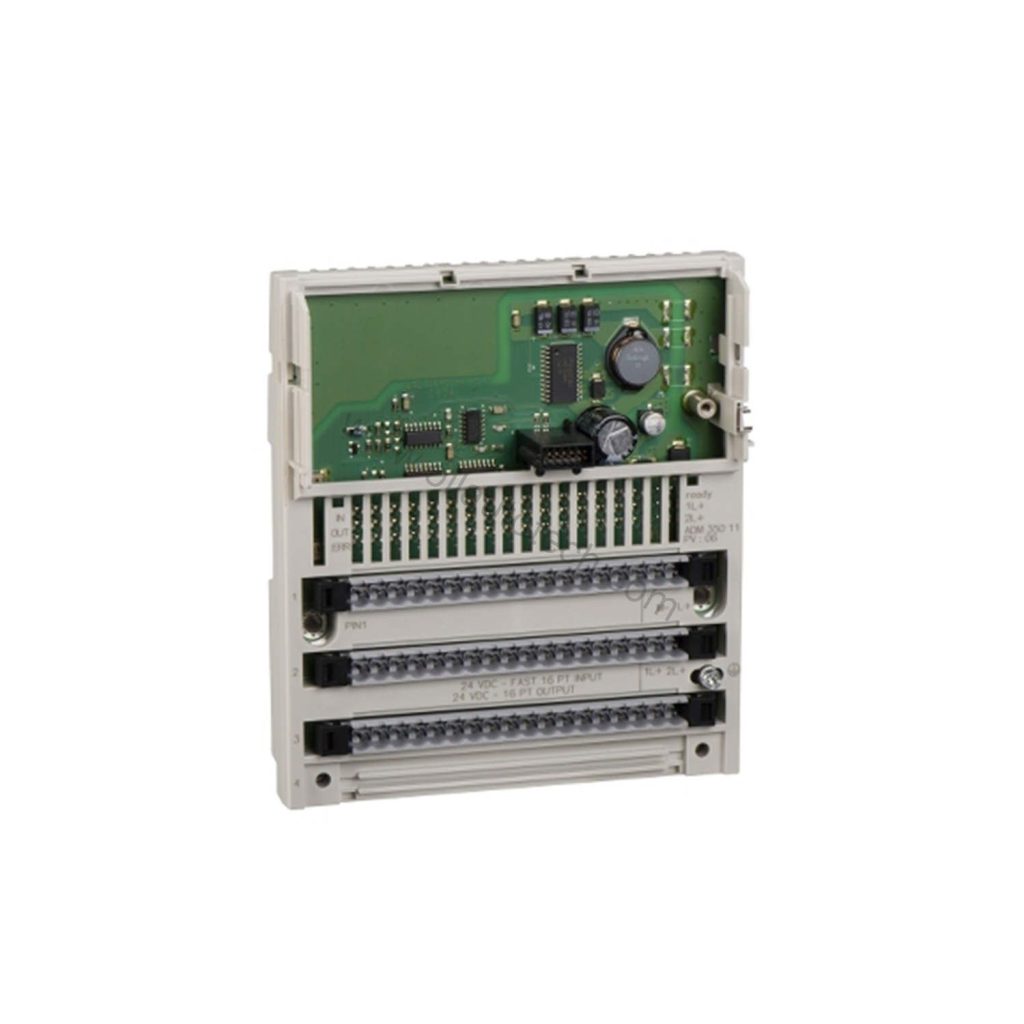

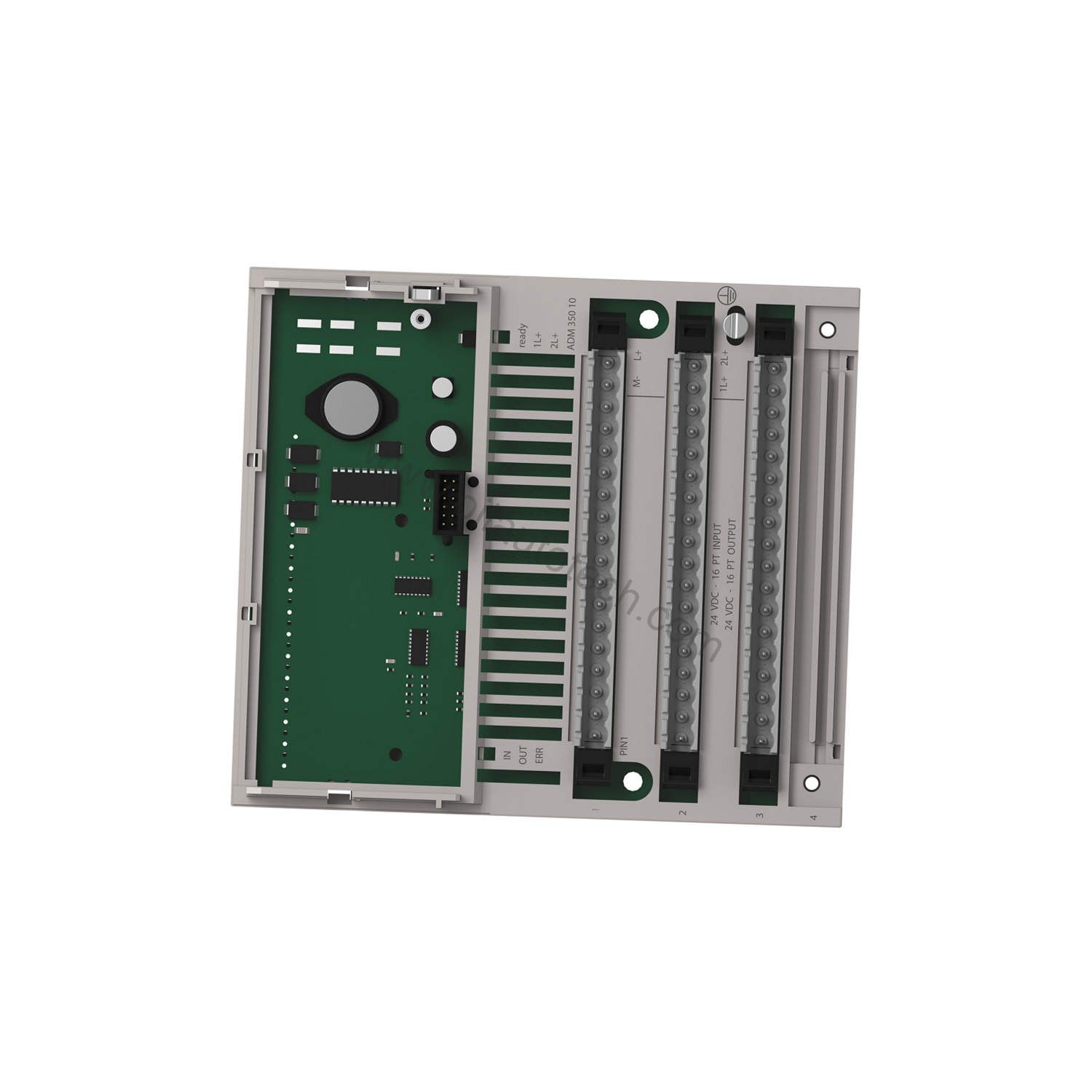

Downtime in oil, gas, and industrial automation lines rarely comes from the controller itself. It comes from the I/O layer that connects field signals to the control system. The Schneider Electric 170ADM39030C is a discrete relay I/O base module from the Modicon Momentum series. It combines 10 discrete inputs with 8 relay outputs on one compact base, giving you a practical building block for signal control in demanding processes.
With a rated supply voltage of 24 VDC and an input voltage range of 11 to 30 VDC, this module fits standard control cabinets without extra conversion hardware. The output side handles 20 to 115 VDC and 24 to 230 VAC, so the same base can switch low-voltage DC signals and higher-voltage AC loads. That flexibility reduces the number of different modules you need to stock and maintain.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Line | Modicon Momentum |
| Base Type | Discrete Relay |
| Discrete Inputs | 10 |
| Input Voltage Range | 11 to 30 VDC |
| Discrete Outputs | 8 |
| Output Type | Relay |
| Output Voltage Range | 20 to 115 VDC and 24 to 230 VAC |
| Rated Supply Voltage | 24 VDC |
| Input Resistance | 4 kΩ |
| Mechanical Durability | 30,000,000 cycles |
| Electrical Durability | 100,000 cycles (inductive) |
| Power Dissipation | 5.5 W to 8.5 W |
| Current Consumption | 250 mA at 24 VDC |
| Dimensions (W x D x H) | 125 mm x 47.5 mm x 141.5 mm |
| Net Weight | 0.26 kg |
Cost and Efficiency Implications
Every specification on this module has a cost angle. The 30,000,000-cycle mechanical durability means the relay contacts are built for repeated switching. In a packaging or valve-actuation line, that translates to fewer replacement modules and less maintenance labor over the life of the asset. The 100,000-cycle electrical durability under inductive loads matters when you drive solenoids, contactors, or small motors, because inductive kickback is a common cause of premature relay failure.
Power dissipation of 5.5 W to 8.5 W and current consumption of 250 mA at 24 VDC keep the load on your power supply predictable. In a cabinet with multiple modules, that predictability helps you size the 24 VDC supply correctly and avoid over-specifying capacity you do not need. The input resistance of 4 kΩ provides a stable load for field devices, which reduces nuisance signal issues that can trigger unnecessary troubleshooting calls.
At 125 mm wide, 47.5 mm deep, and 141.5 mm high, and weighing only 0.26 kg, the 170ADM39030C installs without special lifting equipment or oversized enclosures. The conformal coating (Humiseal 1A33) adds protection in humid or contaminated plant environments, which supports longer service intervals in oil and gas areas where moisture and airborne contaminants are common.
Applications in Oil, Gas, and Automation
In oil and gas terminals, this module can handle discrete signals from level switches, pressure switches, and valve position feedback. The 10 inputs accept 11 to 30 VDC field signals, while the 8 relay outputs can drive indicator lamps, small solenoids, or interposing relays. The wide AC output range of 24 to 230 VAC means the same module can switch control circuits at different voltage levels without adding separate interface relays.
In water treatment and pumping stations, the relay outputs are useful for pump run/stop commands and alarm annunciation. The mechanical durability rating supports frequent cycling, which is common in batch and dosing processes. For factory automation cells, the module works as a compact I/O base where panel space is limited and wiring simplicity matters.
Integration and Selection Notes
The 170ADM39030C belongs to the Modicon Momentum platform, so it integrates with Momentum I/O systems and compatible controllers. Isolation between channels and the bus is rated at 500 V AC, which helps protect the control side from field-side transients. When planning a retrofit or new panel, verify the backplane and terminal compatibility with your existing Momentum setup.
Before ordering, confirm the input logic (positive) matches your field device wiring, and check that your 24 VDC supply can deliver the 250 mA current draw per module plus margin. If you are replacing an existing base, compare the dimensions and mounting arrangement to avoid mechanical rework. For hands-on selection help, contact Oil AutoTech today for pricing and availability.
Maintenance and Reliability
Relay outputs are the primary wear point. Inspect terminal connections periodically and check for signs of overheating or contact pitting, especially on inductive loads. Keep the enclosure free of conductive dust and moisture. The conformal coating helps, but it does not replace proper panel sealing. Following the manufacturer’s safety manual for inspection intervals is the safest approach.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
