Is Your Control System Ready for a CPU That Keeps Pace with Complex Processes?

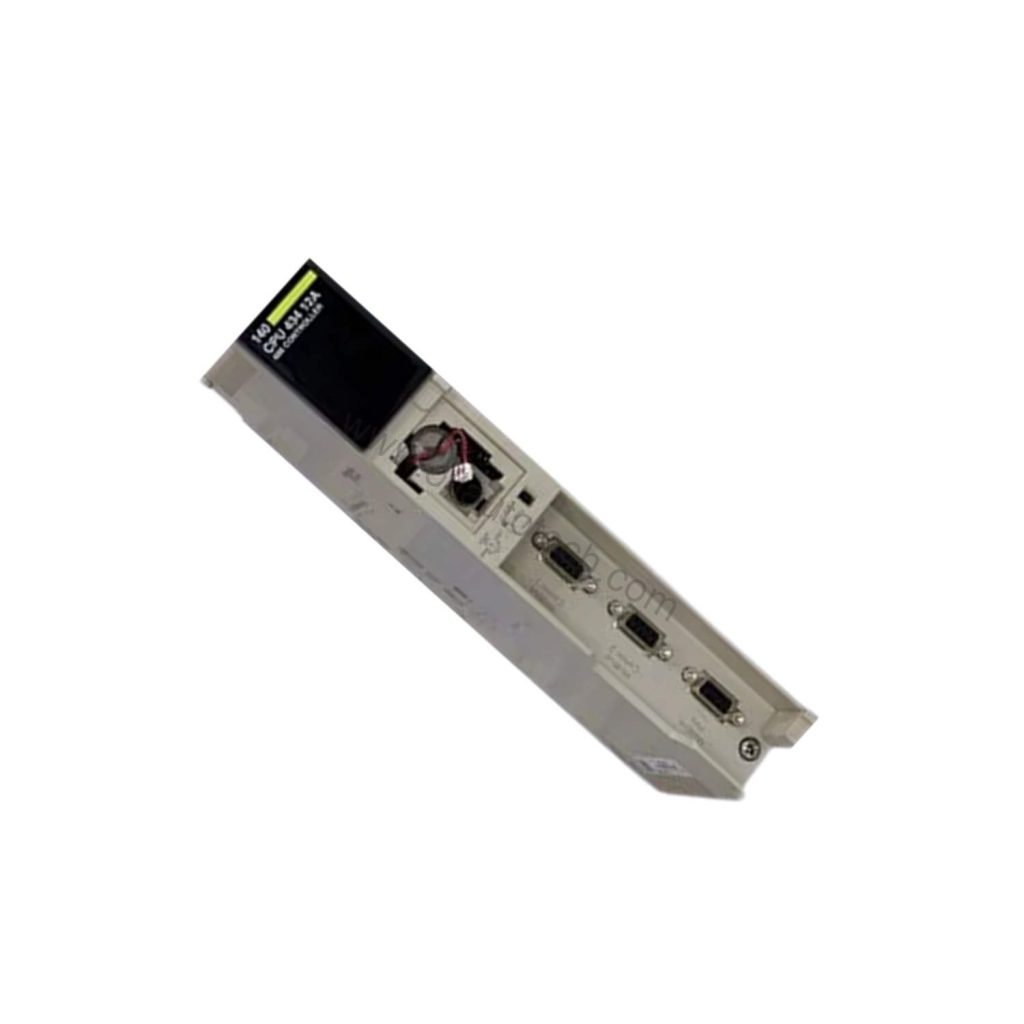

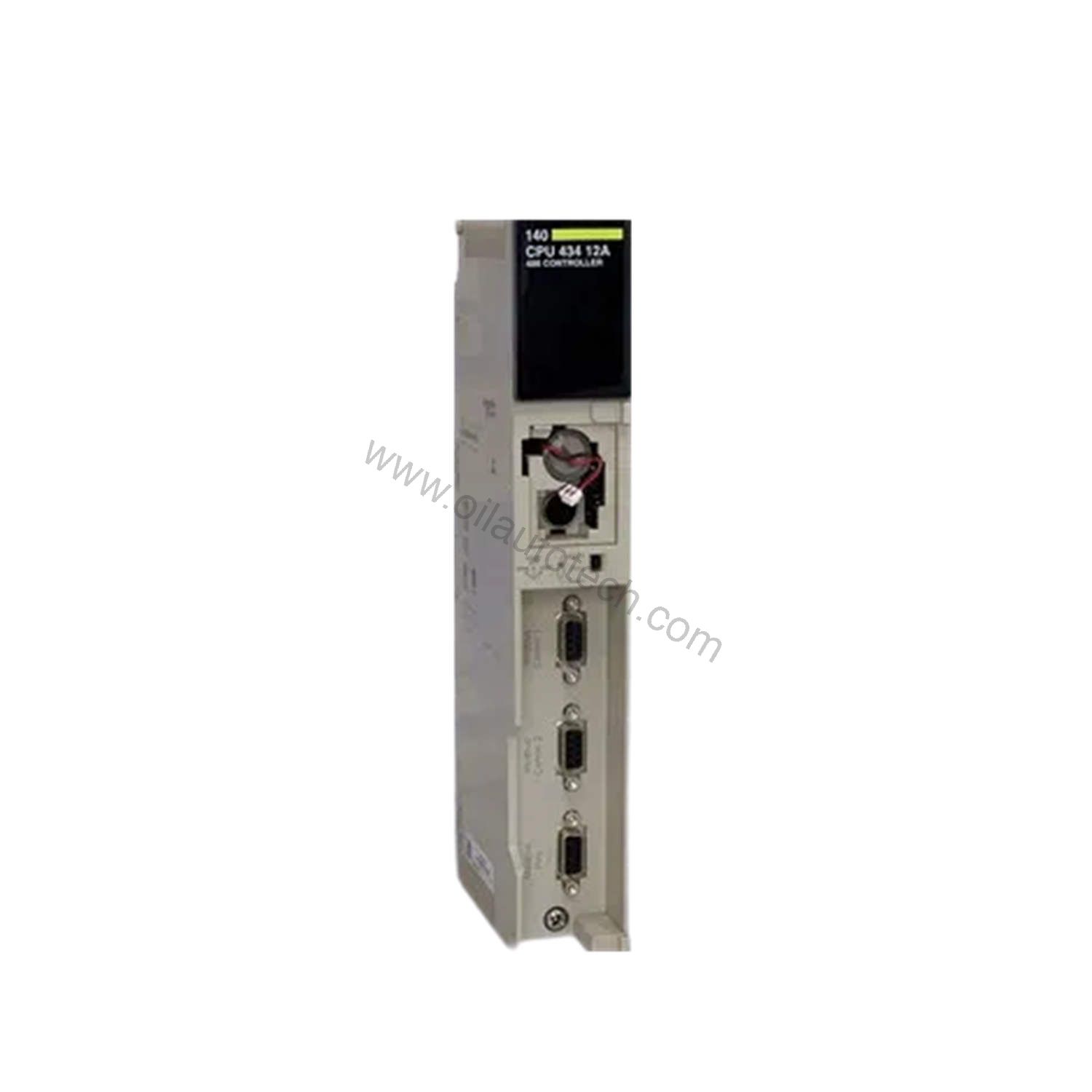

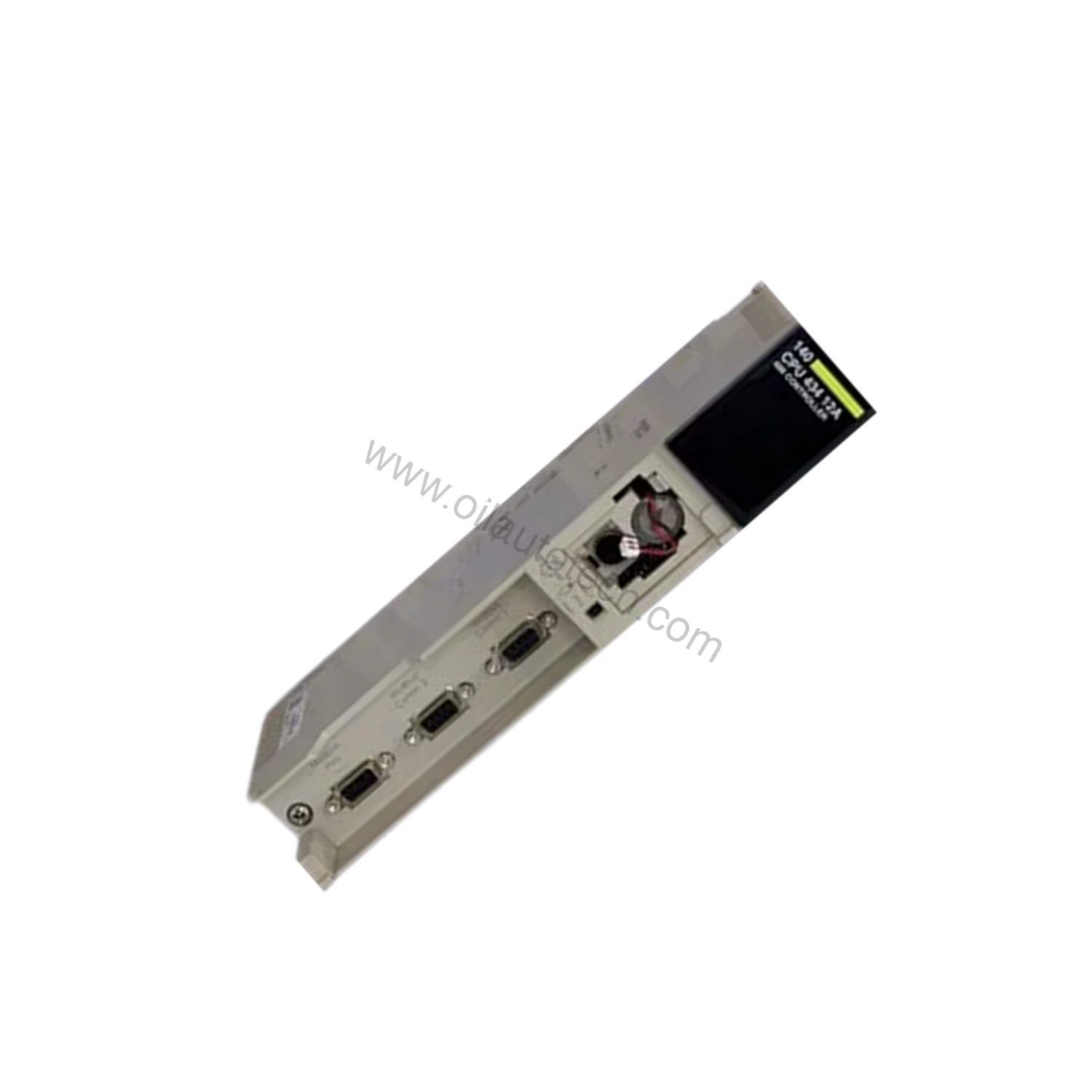

When your production line depends on precise coordination, a sluggish or memory-limited CPU can become the bottleneck. The 140CPU43412UC from Schneider Electric is a Modicon Quantum CPU module built to handle demanding control tasks with speed and reliability. This unit delivers a 66 MHz clock frequency and 1056 KB of internal RAM, giving you the headroom to manage extensive I/O and communication loads without compromise.
What Makes the 140CPU43412UC a Smart Choice for Industrial Automation?
As part of the Modicon Quantum automation platform, this CPU module supports two local racks and up to 31 remote I/O stations. It processes Boolean instructions in just 0.12 to 0.59 microseconds, so your high-speed interrupts and counters respond in real time. With 31.7K remote inputs and outputs, plus 8K distributed I/O, it scales to fit large, distributed control architectures.
Key Technical Specifications
| Specification | Value |
|---|---|
| Product Type | CPU Module |
| Product Line | Modicon Quantum |
| Clock Frequency | 66 MHz |
| Racks | 2 |
| Remote I/O | 31.7K in / 31.7K out |
| Exec Time (Boolean) | 0.12–0.59 µs |
| RAM | 1056 KB |
| Remote I/O Stations | 31 |
| Distributed I/O | 8K in / 8K out |
| Comm Ports | 1 Modbus Plus, 2 Modbus |
| Power | 1800 mA @ 5 V |
| Optional Modules | 6 |
| LEDs | 7 |
| Max Ethernet Connections | 6 |
Where Does the 140CPU43412UC Deliver the Most Value?
In oil and gas processing, this CPU module coordinates remote I/O across pipeline segments, ensuring timely data acquisition and control. For manufacturing lines, its high-speed interrupt inputs and counters handle precise motion and registration tasks. Water treatment facilities benefit from the distributed I/O capacity to monitor and control pumps, valves, and sensors across a wide area.
Integrating the 140CPU43412UC into Your Existing Network
The module includes one Modbus Plus port and two Modbus ports, making it compatible with legacy and modern control networks. It supports up to six Ethernet TCP/IP connections and six Modbus Plus local connections. For Profibus DP or other fieldbuses, you may need an external gateway or communication module. Confirm cable and gateway requirements with your supplier to ensure seamless integration.
Maintaining Peak Performance
To keep your 140CPU43412UC running reliably, schedule periodic inspections of the CPU’s LEDs and connections. The seven LEDs indicate run status, communications activity, and battery condition. Replace the battery when the BAT LOW LED illuminates to prevent memory loss. Ensure the installation environment stays within the specified operating conditions and free of excessive dust or vibration.
Why Source the 140CPU43412UC from Oil AutoTech?
Oil AutoTech specializes in fast-dispatch spares for oil, gas, and industrial automation. We provide quick worldwide delivery and hands-on technical selection help. Whether you need a single module or a complete rack solution, our team helps you get the right part without delays. Contact Oil AutoTech today for pricing and availability.
Frequently Asked Questions
Q: What is the clock frequency of the 140CPU43412UC?
A: The module operates at 66 MHz.
Q: How much RAM does the 140CPU43412UC have?
A: It includes 1056 KB of internal RAM.
Q: What communication ports are available on this CPU?
A: It has 1 Modbus Plus port and 2 Modbus ports.
Q: Can the 140CPU43412UC handle remote I/O?
A: Yes, it supports up to 31 remote I/O stations with 31.7K inputs and 31.7K outputs.
Q: What is the power requirement for this module?
A: It requires 1800 mA at 5 V.
