Why the TM258LF42DT4L Deserves a Place on Your Shortlist
Machine builders and plant engineers constantly balance controller cost against the I/O, communication, and processing headroom a machine actually needs. The Schneider TM258LF42DT4L, part of the Modicon M258 series, answers that balance with a compact logic controller that ships with 42 I/O points and 4 analog inputs already on board. Instead of buying a base unit and stacking separate modules for basic analog sensing, you get a single 24 VDC controller that covers a wide band of mid-range automation tasks.
This buyer’s guide walks through the parameters that matter when you evaluate the TM258LF42DT4L against your own requirements. It focuses on what the data confirms, so you can compare the unit to your machine’s I/O count, network architecture, and environmental conditions without guesswork.
What the TM258LF42DT4L Delivers Out of the Box
The TM258LF42DT4L is a compact logic controller from Schneider Electric’s Modicon M258 range, powered by a dual-core ARM Cortex-A8 processor. One core handles program tasks while the second core manages communication tasks, which keeps logic execution and network traffic from competing for the same resources. The controller carries 128 K instructions of program memory, 64 MB of internal RAM, and 128 MB of Flash storage for application retention.
Programming runs through SoMachine or EcoStruxure Machine Expert, so teams already working in Schneider’s software ecosystem can adopt the TM258LF42DT4L without a new toolchain. Scan speed reaches 0.022 µs per Boolean instruction, translating to more than 45,000 Boolean instructions per millisecond for responsive machine control.
Key Specifications at a Glance
The table below lists the parameters most buyers check first. Every value comes directly from the manufacturer specification for this model.
| Parameter | Value |
|---|---|
| Digital inputs | 26 (18 regular 24 VDC + 8 fast HSC 100 kHz) |
| Digital outputs | 16 transistor, source/PNP, 0.5 A per point, 4 fast |
| Analog inputs | 4 (0-10 VDC / 4-20 mA, 12-bit) |
| High-speed counters | 8 × 100 kHz |
| Pulse outputs | 4 fast reflex outputs |
| Supply voltage | 24 VDC (19.2…28.8 V) |
| Power consumption | 14.14 W |
| Operating temperature | 0…+55 °C (0…+60 °C with derating) |
| Protection rating | IP20 |
| Weight | 0.77 kg |
Reading the I/O Count Against Your Machine
The 26 digital inputs split into 18 standard 24 VDC channels and 8 fast high-speed counter inputs rated at 100 kHz. That mix suits machines that combine ordinary sensor monitoring with encoder or pulse counting duties on the same controller. On the output side, 16 transistor outputs switch at 0.5 A per point with source/PNP wiring, and 4 of them are fast outputs for time-critical switching.
Four analog inputs accept 0-10 VDC or 4-20 mA signals at 12-bit resolution, which covers common pressure, temperature, and flow transmitters without extra analog modules. There are no analog outputs on this model, so applications needing analog actuation should plan for an expansion module. When your I/O needs grow, the TM258LF42DT4L accepts up to 7 TM5 or TM2 expansion modules for a maximum of 2400 I/O.
Communication and Integration Fit
Networking is built in rather than optional. The controller provides one Ethernet RJ45 port, one CANopen SUB-D9 port, one RS-485 serial link, and a USB-B mini port for programming. Supported protocols include Modbus TCP over Ethernet, CANopen master, and Modbus RTU/ASCII over the serial link, with a proprietary programming protocol on USB.
Two free PCI slots accept optional communication or function modules, separate from the 7 TM5/TM2 I/O expansion modules. That separation lets you add fieldbus capability and I/O capacity independently as a machine design evolves. For plants standardizing on Modbus TCP or CANopen, the TM258LF42DT4L slots into existing architectures without a gateway.
Where the TM258LF42DT4L Fits on the Factory Floor

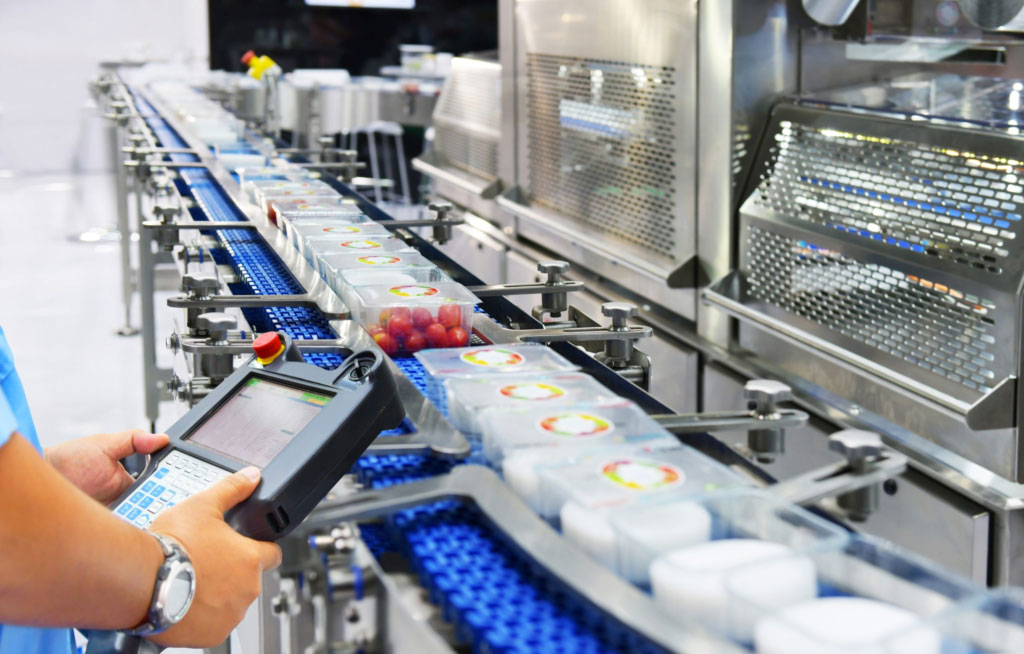

In a typical packaging line application, a controller like the TM258LF42DT4L would manage registration sensors, drive fast outputs for reject gates, and count product with its high-speed counter inputs, all while reporting line status over Modbus TCP. This is a realistic illustration rather than a specific customer installation, but it reflects the I/O and communication profile the unit carries.
Other natural fits include assembly stations that need analog monitoring of torque or pressure alongside discrete interlocks, and material handling cells where CANopen master capability coordinates drives and remote I/O. The IP20 rating and 0…+55 °C operating range suit control cabinets in normal industrial environments; installations above 55 °C require derating up to +60 °C.
Business Value and Lifecycle Confidence
Consolidating 42 I/O points and 4 analog inputs into one compact unit reduces panel space, wiring, and the number of separate components a maintenance team must stock. The 14.14 W power draw keeps cabinet heat load modest, which supports longer component life in enclosed panels. Because the Modicon M258 platform remains active, buyers can plan around a controller that is still supported rather than a discontinued line.
For system integrators, the dual-core architecture means communication tasks do not steal scan time from control logic, a benefit that shows up as more consistent cycle times on machines with heavy network traffic. Combined with the 0.022 µs Boolean instruction scan speed, the TM258LF42DT4L offers processing headroom that delays the need for a larger controller as a machine’s program grows.
Frequently Asked Questions
How many expansion modules can I add to the TM258LF42DT4L?
The controller supports up to 7 TM5 or TM2 expansion modules, reaching a maximum of 2400 I/O. It also provides 2 free PCI slots for optional communication or function modules, which are separate from the I/O expansion count.
Does the TM258LF42DT4L include analog outputs?
No. This model provides 4 analog inputs rated for 0-10 VDC or 4-20 mA at 12-bit resolution, but it does not include analog outputs. Applications requiring analog actuation need to plan for an appropriate expansion module.
Which software programs the TM258LF42DT4L?
You program the controller with SoMachine or EcoStruxure Machine Expert. Both tools support the Modicon M258 platform, so existing projects in either environment can target this unit.
What communication protocols does the TM258LF42DT4L support natively?
Built-in protocols include Modbus TCP over the Ethernet RJ45 port, CANopen master over the SUB-D9 port, and Modbus RTU/ASCII over the RS-485 serial link. Programming uses a proprietary protocol over the USB-B mini port.
