Why Serial Communication Still Matters on the Plant Floor

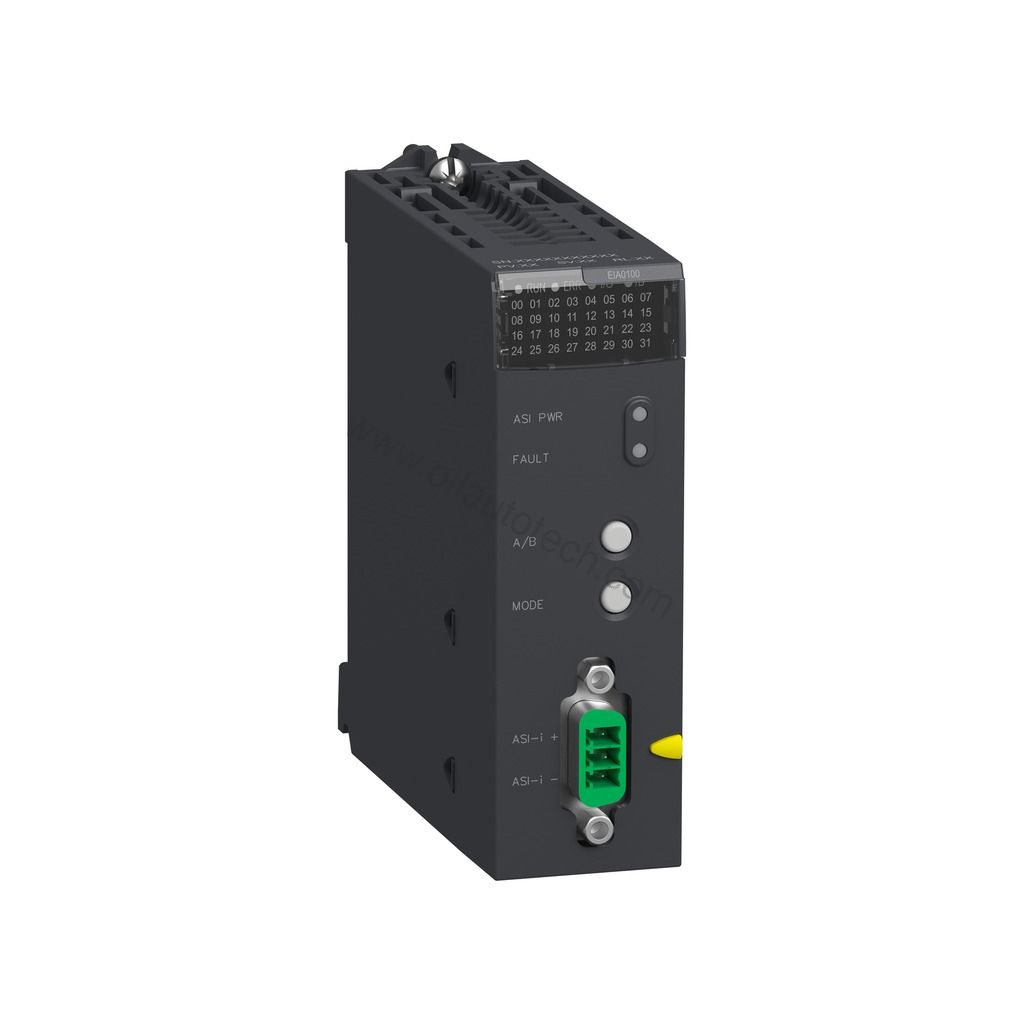

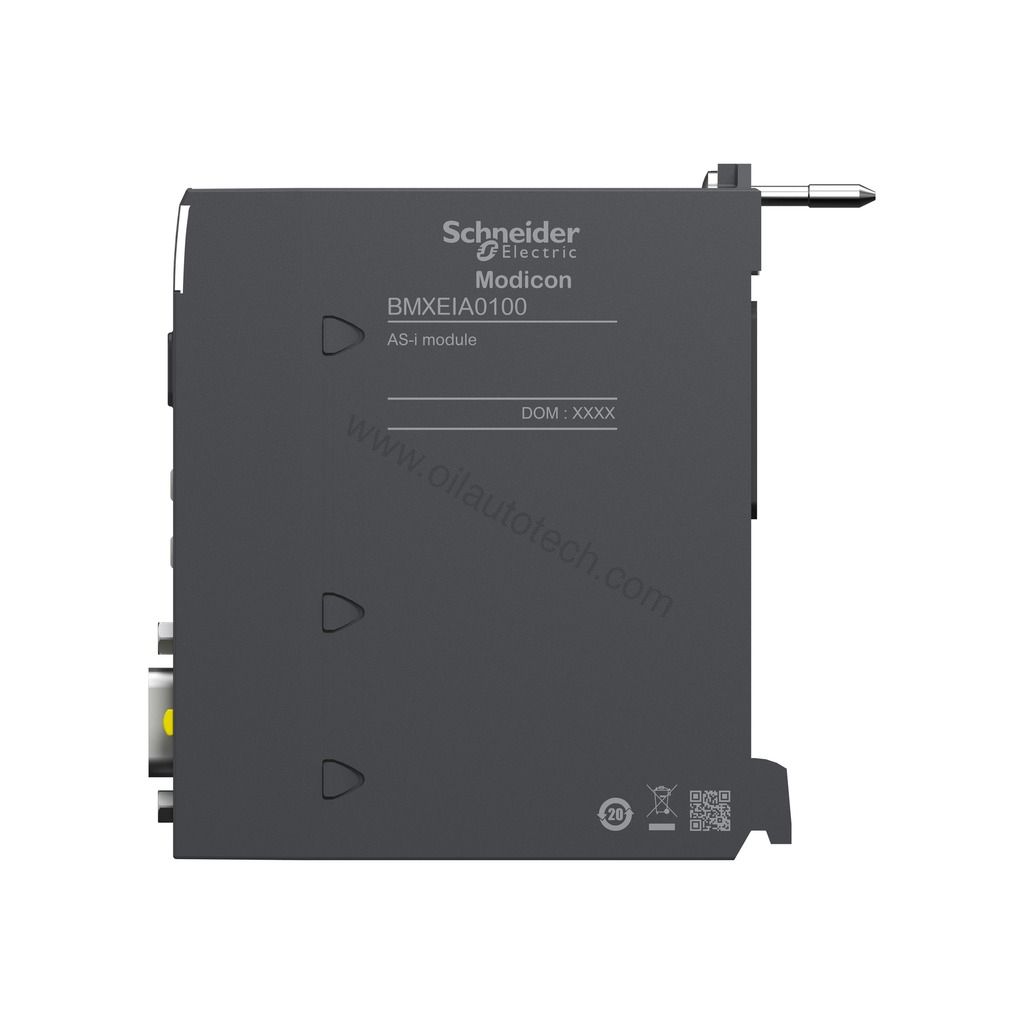

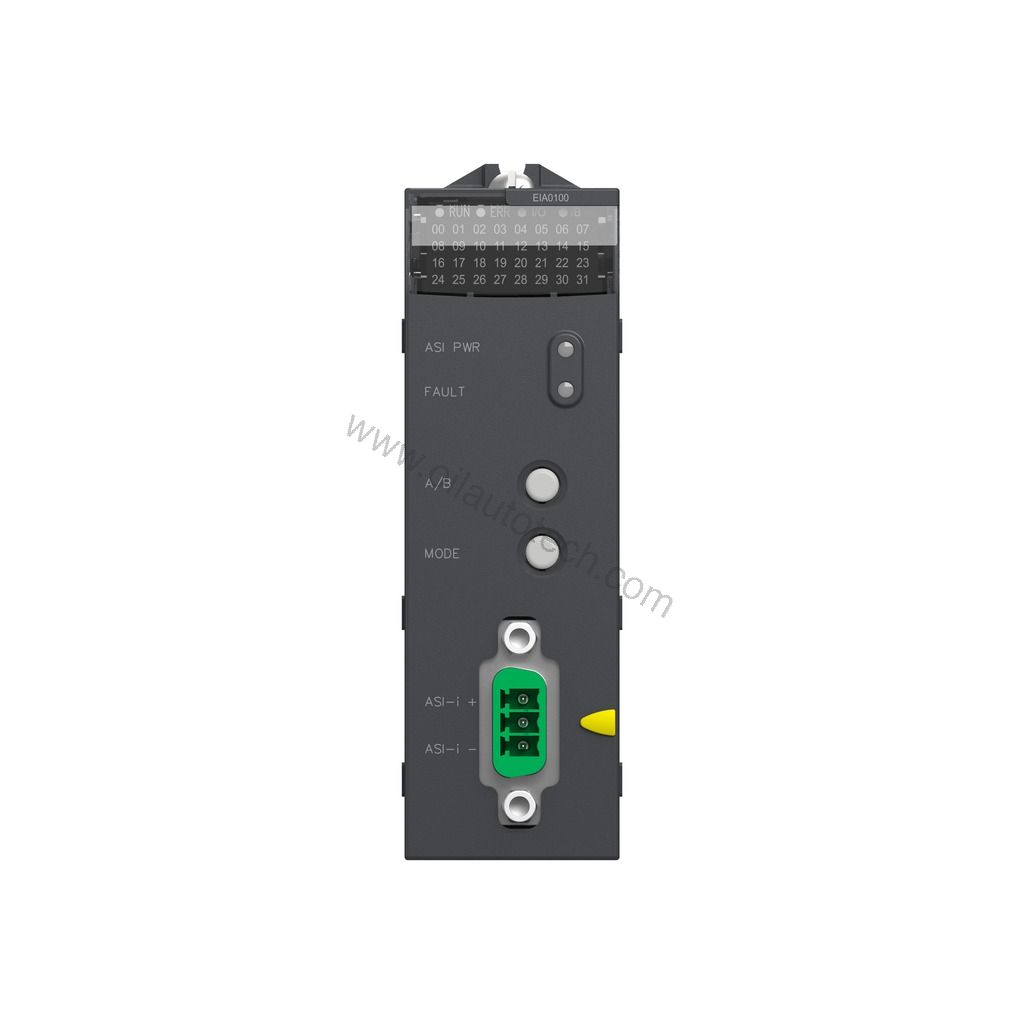

Legacy weigh scales, bar-code readers, drives and analyzers often speak only RS232 or RS485. When that link drops, production visibility drops with it. The BMXEIA0100 from Schneider Electric solves this problem directly: it is a Modicon X80 serial communication module that gives a single point-to-point serial channel to M340 and M580 control platforms.
What the BMXEIA0100 Actually Does
This module occupies one slot on the X-bus backplane and carries one built-in RS232/RS485 port. It handles Modbus RTU/ASCII and character mode, so you can poll a third-party device or stream raw ASCII strings without adding a separate gateway box. Baud rate is selectable from 0.3 to 19.2 Kbps — practical for the slower serial devices that still run critical processes.
Because the module draws 24 V DC from the backplane at 1.7 W and 70 mA, it needs no separate power wiring. That keeps panel space and installation time low.
Key Parameters at a Glance
| Specification | Value |
|---|---|
| Series | Modicon X80 |
| Ports | 1× RS232/RS485 (serial) |
| Protocols | Modbus RTU/ASCII, character mode |
| Baud rate | 0.3–19.2 Kbps |
| Supply voltage | 24 V DC (via backplane) |
| Power consumption | 1.7 W |
| Bus current | 70 mA @ 24 V DC |
| Operating temperature | 0 °C to +60 °C |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.15 kg |
Where It Fits in Oil, Gas and Industrial Automation
Tank farm level monitoring. A level transmitter with an RS485 Modbus RTU output can feed the M580 rack directly through this module. One serial channel, one slot, no protocol converter.
Skid-mounted analyzer packages. Analyzers frequently expose an RS232 service port. The BMXEIA0100 lets the PLC read that data in character mode, so operators see live readings instead of manual log sheets.
Legacy drive integration. Older variable frequency drives with Modbus ASCII interfaces stay productive when the controller can still talk to them. This is a practical retrofit path when replacing the whole drive is not justified.
Installation and Integration Notes
The module slots into the X-bus backplane and takes its 24 V DC supply from that bus. Keep the enclosure within the 0 °C to +60 °C operating range and protect it from condensation; the IP20 rating means it belongs inside a cabinet, not on an open panel. Humidity must stay between 5% and 95%, non-condensing.
For serial runs, keep cable routing away from high-power switching devices. If you plan to bridge this port to a plant network, note that the module itself provides serial communication only — any conversion to a plant-wide fieldbus requires an external gateway or connection module. Confirm cable pinouts and gateway compatibility with your supplier before commissioning.
Reliability and Maintenance
With no moving parts and a 0.15 kg housing, this module has little to wear out. The practical maintenance tasks are periodic inspection of terminal connections, verification that cabinet temperature stays inside the rated window, and checking that humidity control is working. Dust buildup on the faceplate can trap heat, so include the slot in routine panel cleaning schedules. If a serial device stops responding, check baud rate and protocol settings first — mismatched settings are the most common cause of communication faults.
Selection Checklist Before You Buy
Confirm three things: your controller is an M340 or M580 platform with a free X-bus slot; your field device uses RS232, RS485, Modbus RTU/ASCII or character mode; and your required baud rate falls within 0.3–19.2 Kbps. If all three match, this module drops in without extra power supplies or adapters.
The BMXEIA0100 lifecycle is active as a shared I/O platform for M340 and M580. Please verify current lifecycle status and availability with Oil AutoTech before ordering.
