Introduction

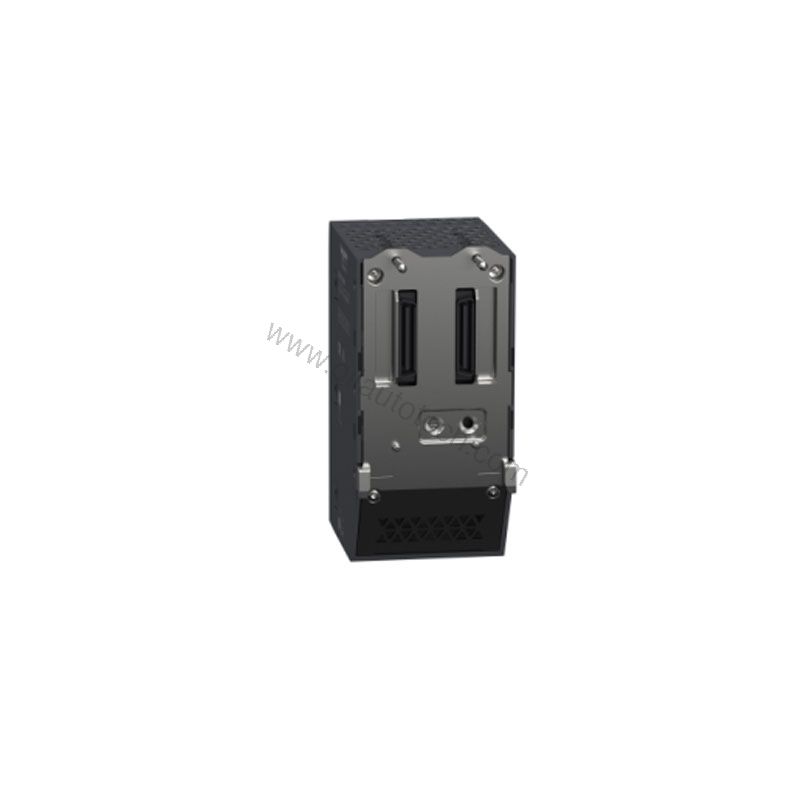

Is your control system struggling to keep pace with expanding I/O demands? The BMEP583040 from Schneider Electric delivers a robust solution. As a Modicon M580 Level 3 ePAC CPU, it combines high-speed processing with extensive connectivity. This module serves as the central brain for complex industrial automation architectures, specifically designed for remote I/O (RIO) and distributed I/O (DIO) applications.
Technical Specifications Breakdown
Engineered for demanding environments, the BMEP583040 features an ARM dual-core processor running at 600 MHz. This hardware executes 40 Kinst/ms for boolean instructions and 30 Kinst/ms for mixed operations, ensuring deterministic control for fast machinery. The CPU includes 12 MB of integrated RAM for application programs and 768 KB for data, providing ample space for complex logic. It supports up to 3072 discrete I/O points and 768 analog I/O points, accommodating large-scale processes without requiring multiple controllers.
Key Parameters
| Specification | Value |
|---|---|
| Processor | ARM dual-core |
| Clock Speed | 600 MHz |
| Program Memory | 12 MB integrated RAM |
| Data Memory | 768 KB |
| Scan Speed | 40 Kinst/ms (boolean) |
| Discrete I/O (Max) | 3072 points |
| Analog I/O (Max) | 768 points |
| Supply Voltage | 24 V DC |
| Power Consumption | 7.2 W |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Dimensions (H×W×D) | 100 × 56 × 93 mm |
| Weight | 0.849 kg |
Solving Connectivity Pain Points
Modern factories require seamless data flow. The BMEP583040 addresses this with three built-in Ethernet networks. It features one service port (RJ45) and two RIO/DIO ports (RJ45, 10/100 Mbps), plus a USB Mini-B port (480 Mbps). This configuration supports Modbus TCP/IP, EtherNet/IP, and HTTP/HTTPS protocols natively. You can connect up to 16 remote I/O drops and 61 distributed devices directly, eliminating the need for additional communication gateways in most setups.
Replacement and Upgrade Guide
For plants migrating from legacy Quantum or Premium platforms, this CPU offers a clear upgrade path. It is an active lifecycle product introduced in 2014. The BMEP583040 fits into X80 Ethernet backplanes with 4, 6, 8, or 12 slots for single PSU setups, or 6 and 10 slots for redundant PSU configurations. It supports up to 8 local racks (1 main + 7 expansion), allowing you to scale your system as production needs grow. When replacing older controllers, verify that your existing I/O modules are compatible with the X80 backplane architecture.
Installation and Setup
Proper installation ensures reliability. Mount the module in slots 0 and 1 of the rack, as it occupies two slots. Use the EcoStruxure Machine Expert (Unity Pro XL) software for programming. The module operates on 24 V DC (19.2-31.2 V DC) via the backplane and draws 300 mA bus current. Ensure the cabinet maintains an operating temperature between 0°C and +60°C and humidity between 5% and 95% (non-condensing). The IP20 rating requires installation in a clean, protected enclosure.
Maintenance and Reliability
To maximize ROI, implement a routine inspection schedule. Check the Ethernet port connections for secure seating and verify the CPU status LEDs monthly. The BMEP583040 has no moving parts, minimizing mechanical wear. However, ensure the cabinet ventilation prevents dust buildup, which can cause overheating. If the application requires data logging, utilize the optional 4 GB SD card (BMXRMS004GPF) to archive process data without external hardware.
Compatibility and Integration
The Modicon M580 platform integrates seamlessly with existing Schneider Electric architectures. It supports communication expansion modules via the X80 backplane, including BMENOC03xx Ethernet/IP, BMENOS0300 serial, and BMENOR2200 RIO modules. This flexibility allows the CPU to act as a data concentrator or a gateway to higher-level SCADA systems using Modbus TCP/IP or EtherNet/IP protocols.
Selection Guide
Before purchasing, verify your rack type and power supply configuration. The BMEP583040 requires a 24 V DC power source and an X80 Ethernet backplane. If you need redundant power supplies, ensure your rack has 6 or 10 slots. For applications requiring extensive remote I/O, confirm that your network infrastructure supports the 16 remote drops and 61 distributed devices. Oil AutoTech offers this module with verified availability to minimize downtime.
FAQs
What is the maximum number of I/O points supported by the BMEP583040?
The CPU supports up to 3072 discrete I/O points and 768 analog I/O points.
Which programming software is compatible with this module?
You can program the BMEP583040 using EcoStruxure Machine Expert (Unity Pro XL).
How many Ethernet ports does the BMEP583040 have?
It includes one Ethernet service port and two Ethernet RIO/DIO ports, all RJ45.
Can this CPU be used in redundant power supply configurations?
Yes, it is compatible with 6 and 10 slot racks designed for redundant PSU setups.
What is the operating temperature range for this CPU?
The module operates reliably between 0°C and +60°C.
