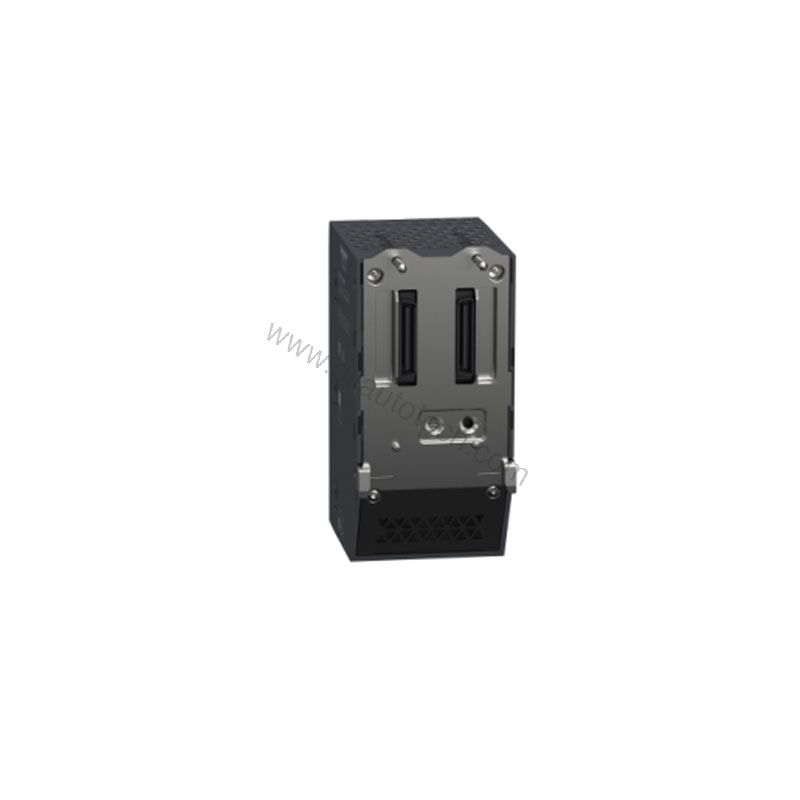

What Is the Schneider BMEP583040?
The Schneider BMEP583040 is a Level 3 CPU for the Modicon M580 ePAC platform. It handles remote I/O and distributed I/O over Ethernet, so you can place racks and devices where the process actually sits. As a maintenance engineer, you get one controller that covers a large plant footprint without a cabinet full of copper.
This CPU carries an ARM dual-core processor running at 600 MHz. It ships with 12 MB of integrated RAM for the application program and 768 KB of data memory. Scan speed reaches 40 Kinst/ms for boolean logic and 30 Kinst/ms for mixed code. That headroom matters when you add interlock logic or expand an existing line.
Key Technical Parameters
| Specification | Value |
|---|---|
| Processor | ARM dual-core |
| Clock speed | 600 MHz |
| Program memory | 12 MB integrated RAM |
| Data memory | 768 KB |
| Scan speed | 40 Kinst/ms (100% boolean) / 30 Kinst/ms (mixed) |
| Discrete I/O (max) | 3072 points |
| Analog I/O (max) | 768 points |
| Application channels | 64 |
| Built-in ports | 1× Ethernet service (RJ45), 2× Ethernet RIO/DIO (RJ45, 10/100 Mbps), 1× USB Mini-B (480 Mbps) |
| Protocols | Modbus TCP/IP, EtherNet/IP, HTTP/HTTPS |
| Supply voltage | 24 V DC (19.2–31.2 V DC via backplane) |
| Power consumption | 7.2 W |
| Operating temperature | 0°C to +60°C |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 56 × 93 mm |
Why This CPU Fits Real Plant Work
The BMEP583040 supports up to 3072 discrete points and 768 analog points. You can run 64 application channels across eight local racks: one main rack plus seven expansion racks. The X80 Ethernet backplane accepts 4, 6, 8, and 12-slot racks with a single power supply, or 6 and 10-slot racks with redundant power. For plant-wide coverage, the CPU manages 16 remote I/O drops and 61 distributed devices.
Three Ethernet networks come built in. Two RJ45 ports run RIO and DIO traffic at 10/100 Mbps, while a separate service port keeps diagnostics off the control path. The CPU speaks Modbus TCP/IP and EtherNet/IP, and it serves a standard web page for maintenance checks. X80 backplane modules add more Ethernet/IP, serial, RIO, or universal automation capacity when a project grows.
Integration Note
Wiring this CPU into an existing EtherNet/IP or Modbus TCP/IP network may require an external gateway or connection module. Confirm cables and gateways with your supplier before you finalize the bill of materials.
Where the M580 Level 3 CPU Earns Its Keep
Oil and gas terminals often run widely separated skids. With 16 remote I/O drops, you can mount I/O near pumps, valves, and tanks instead of pulling home runs back to a central cabinet. That cuts cable cost and shortens troubleshooting time.
Water treatment plants use the 768 KB data memory and 64 application channels to run filtration, dosing, and backwash sequences on one controller. The 40 Kinst/ms boolean scan keeps interlocks responsive even as the program grows.
Food and beverage lines benefit from the IP20 enclosure and 0°C to +60°C operating range. The built-in web server lets a technician check diagnostics from a laptop without opening the programming software.
Installation and Commissioning Notes
Mount the CPU in slots 0 and 1 of a compatible X80 rack. It occupies two slots and measures 100 × 56 × 93 mm, so plan panel space before the rack arrives. Feed the backplane with 24 V DC within the 19.2–31.2 V DC range; the CPU draws 7.2 W and 300 mA at 24 V DC.
Keep the cabinet at IP20 cleanliness. Use the USB Mini-B port for initial downloads, then move to Ethernet for normal operation. Set the service port on a separate subnet from the RIO/DIO ports to protect scan time. Program the unit with EcoStruxure Machine Expert, formerly Unity Pro XL.
Maintenance and Reliability
This CPU has no moving parts, so reliability centers on its environment. Keep relative humidity between 5% and 95% non-condensing. Check the cabinet fan and filter on a regular schedule, because heat is the main enemy of a 600 MHz processor running at full load.
Review the diagnostic web page monthly. Look for dropped remote I/O drops and rising scan times. If the application grows, add an SD card for program backup; the 4 GB BMXRMS004GPF is the listed option.
Spares planning matters here. A Level 3 CPU often controls the whole line, so a ready-to-ship spare shortens any unplanned stop. Oil AutoTech keeps fast-dispatch spares for oil, gas, and industrial automation, with quick worldwide delivery.
Compatibility and Selection Checklist
Confirm the rack type before ordering. The CPU works with X80 Ethernet backplanes in 4, 6, 8, and 12-slot versions with single power supplies, and 6 or 10-slot versions with redundant supplies. Check that your programming software version supports the M580 platform.
Decide whether you need the optional 4 GB SD card for backup. Verify that your network design separates service, RIO, and DIO traffic. If you run legacy Modbus serial devices, plan an X80 communication module.
Lifecycle status is active, and the M580 platform replaces Quantum and Premium controllers. Please verify current lifecycle status and availability with Oil AutoTech before ordering. Contact Oil AutoTech today for pricing and availability.
Frequently Asked Questions
What is the BMEP583040 used for?
It is a Level 3 Modicon M580 ePAC CPU for remote I/O and distributed I/O control. It suits oil, gas, water, and process lines that need one controller across several racks.
How much I/O can this CPU handle?
It supports up to 3072 discrete points and 768 analog points. It also manages 16 remote I/O drops and 61 distributed devices.
Which software programs this CPU?
Use EcoStruxure Machine Expert, formerly Unity Pro XL. The built-in USB Mini-B port handles first-time downloads.
Does it support EtherNet/IP?
Yes. The CPU speaks Modbus TCP/IP and EtherNet/IP, with two RJ45 RIO/DIO ports and one service port.
Can I expand the system later?
Yes. Add X80 backplane communication modules for more Ethernet/IP, serial, RIO, or universal automation capacity.
