Why Engineers Choose the 1756-L72 ControlLogix Processor
When a ControlLogix line goes down, every hour of downtime erodes throughput and margin. The Allen-Bradley 1756-L72 is a Logix5572 processor built for exactly that reality: a single-slot PAC with 4 MB user memory, 0.98 MB I/O memory, and a full-speed USB 2.0 port for programming, configuration, and on-line edits. It replaces the older RS232 interface with a more robust connection that needs no expensive communication cable.
This controller supports up to 128,000 digital I/O and 4,000 analog I/O, so it fits mid-to-large automation architectures without forcing an early platform change. For oil, gas, and industrial automation teams, that means a practical drop-in processor rather than a full redesign.
Key Parameters at a Glance
| Specification | Value |
|---|---|
| Series | ControlLogix |
| Module Type | Processor Module |
| User Memory | 4 MB |
| I/O Memory | 0.98 MB |
| Max Digital I/O | 128,000 |
| Max Analog I/O | 4,000 |
| Communication | 1 port USB 2.0, full speed, 12 Mbps |
| Nonvolatile Memory | 1 GB (1784-SD1 ships with every controller); 2 GB (1784-SD2) |
| Isolation Voltage | 30 Volts Continuous |
| Weight | 0.25 kg (0.55 lb) |
| Operating Shock | 30 G |
| Relative Humidity | 5-95 percent |
| Redundancy | Full Support |
Integration and Communication Options
The 1756-L72 works across Data Highway Plus, DeviceNet, EtherNet/IP, Remote I/O, SynchLink, ControlNet, and third-party process and device networks. It is OPC UA compliant, which simplifies configuration to control and data networks. For redundancy, pair it with a similar controller on the same ControlNet network.
Integration Note
Wiring into these networks may require an external gateway or connection module. Confirm cables and gateways with your supplier before commissioning.

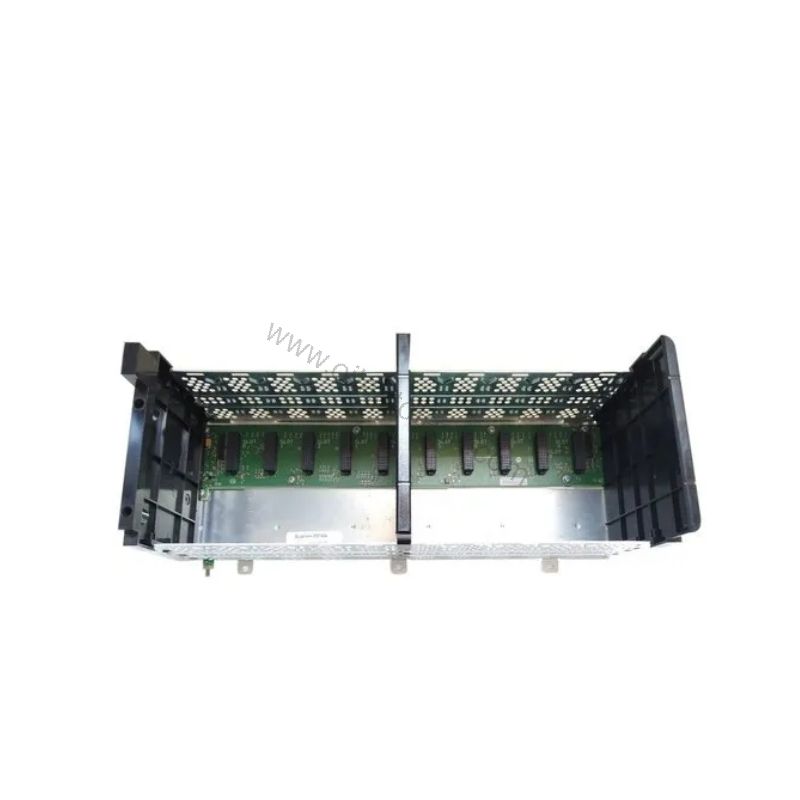

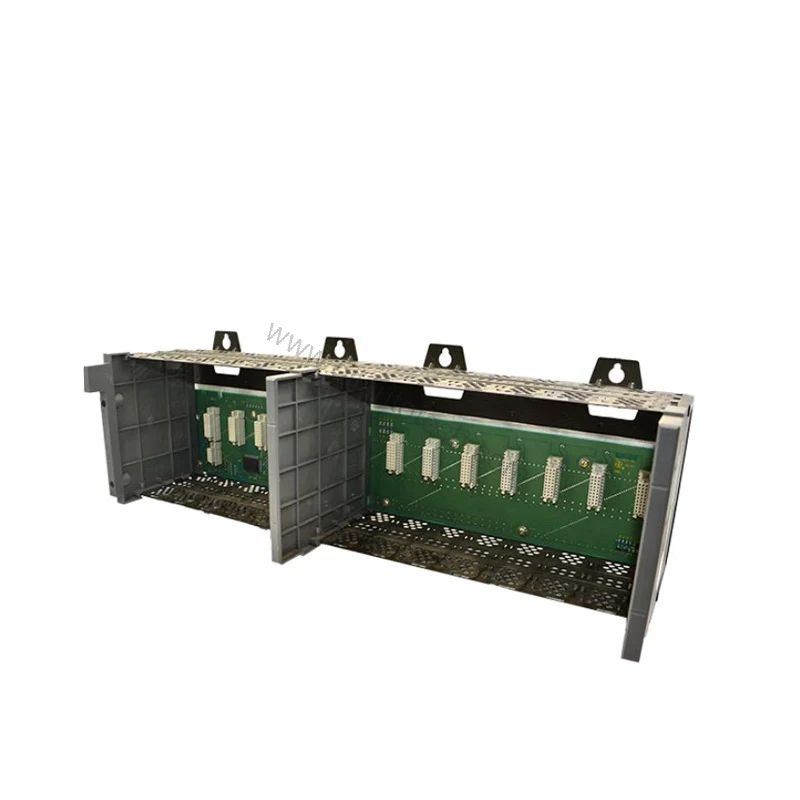

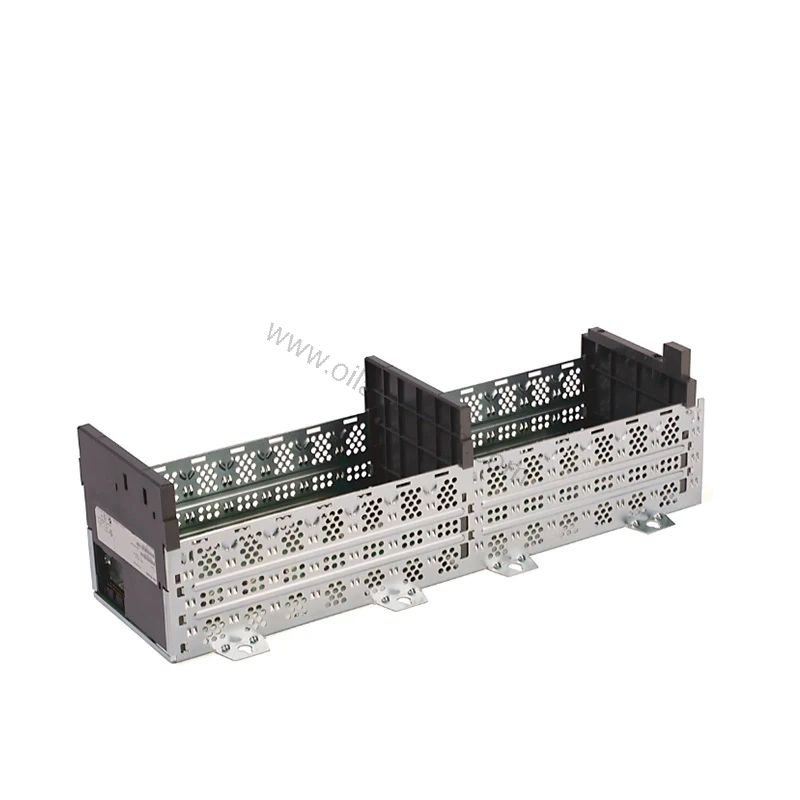

Chassis Compatibility and Physical Fit
This processor occupies a single slot in compatible 1756 chassis: 1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K, 1756-A13, 1756-A13K, 1756-A17, and 1756-A17K. A 4-character alphanumeric display shows device status, operating mode, and diagnostics; the mode is changeable with a supplied key.
Memory, Redundancy, and Long-Term Reliability
The 1756-L72 ships with a 1 GB SD card (1784-SD1) for nonvolatile storage, upgradeable to 2 GB via 1784-SD2. Rockwell Automation recommends using only their tested SD cards to avoid data loss or corruption. Three capacitor energy storage modules are available: the removable 1756-ESMCAP/1756-ESMCAPK, the removable 1756-ESMNSE/1756-ESMNSEK with no residual WallClockTime backup, and the nonremovable 1756-ESMNRM/1756-ESMNRMK that blocks USB and SD card use for security.
Full redundancy support means you can build a fault-tolerant pair for critical oil and gas service. Combined with 30 G operating shock tolerance and 5-95 percent relative humidity range, this processor handles harsh plant environments.
Selection Checklist Before You Buy
Confirm your chassis model, required I/O count, and whether you need redundancy or Armor ControlLogix configuration. Verify the SD card option (1784-SD1 or 1784-SD2) and energy storage module for your application. Please verify current lifecycle status and availability with Oil AutoTech before ordering. Contact Oil AutoTech today for pricing and availability.
