The Evolution of Plant-Floor Communications
Industrial automation has moved from hardwired relay panels to distributed architectures where data moves constantly between controllers and field devices. The Schneider Electric 140NOM21200C sits at the center of that shift. As a DIO head-end adapter in the Modicon Quantum series, it links distributed I/O drops back to the main processor over Modbus networks, keeping plant data flowing without a full system rebuild.
What the 140NOM21200C Does

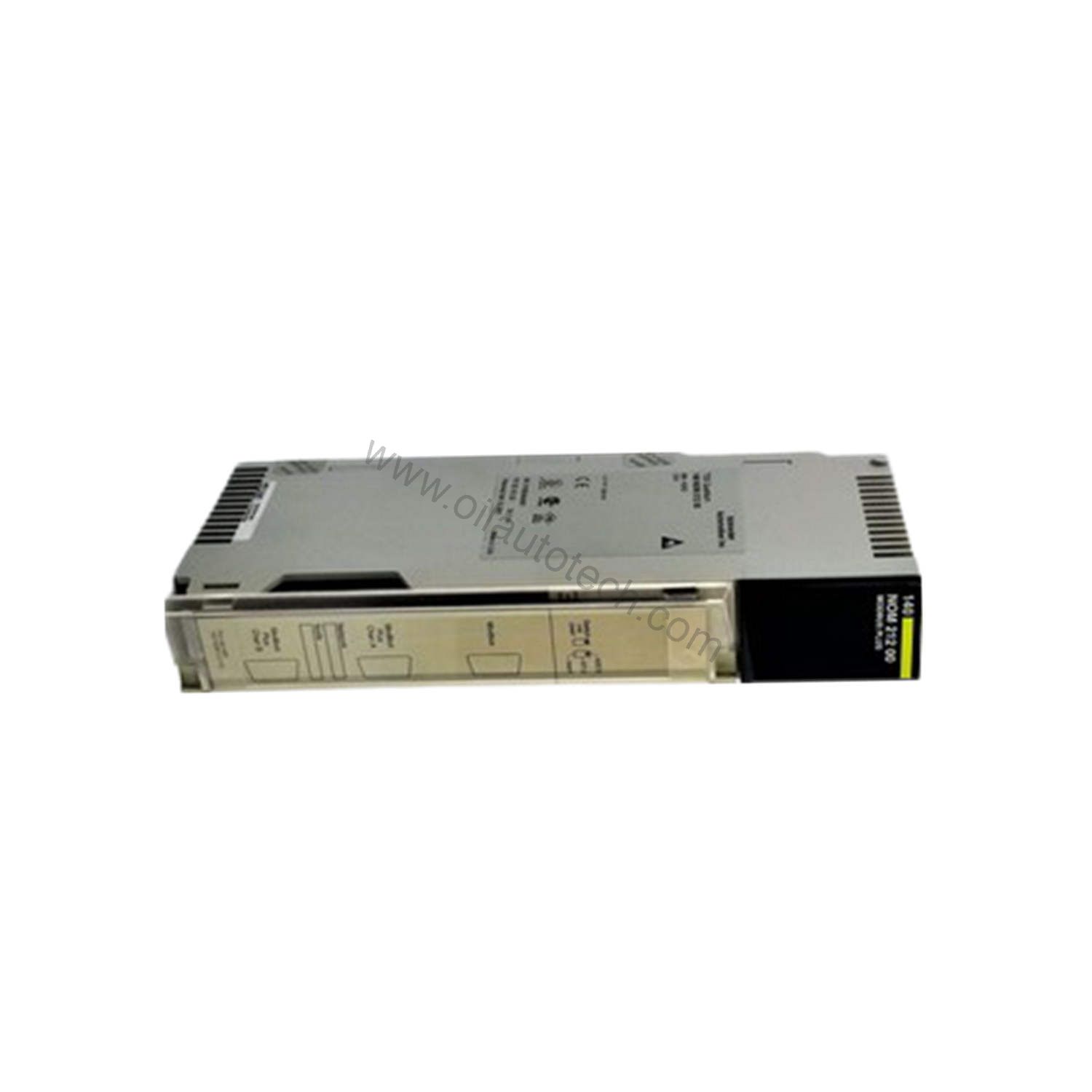

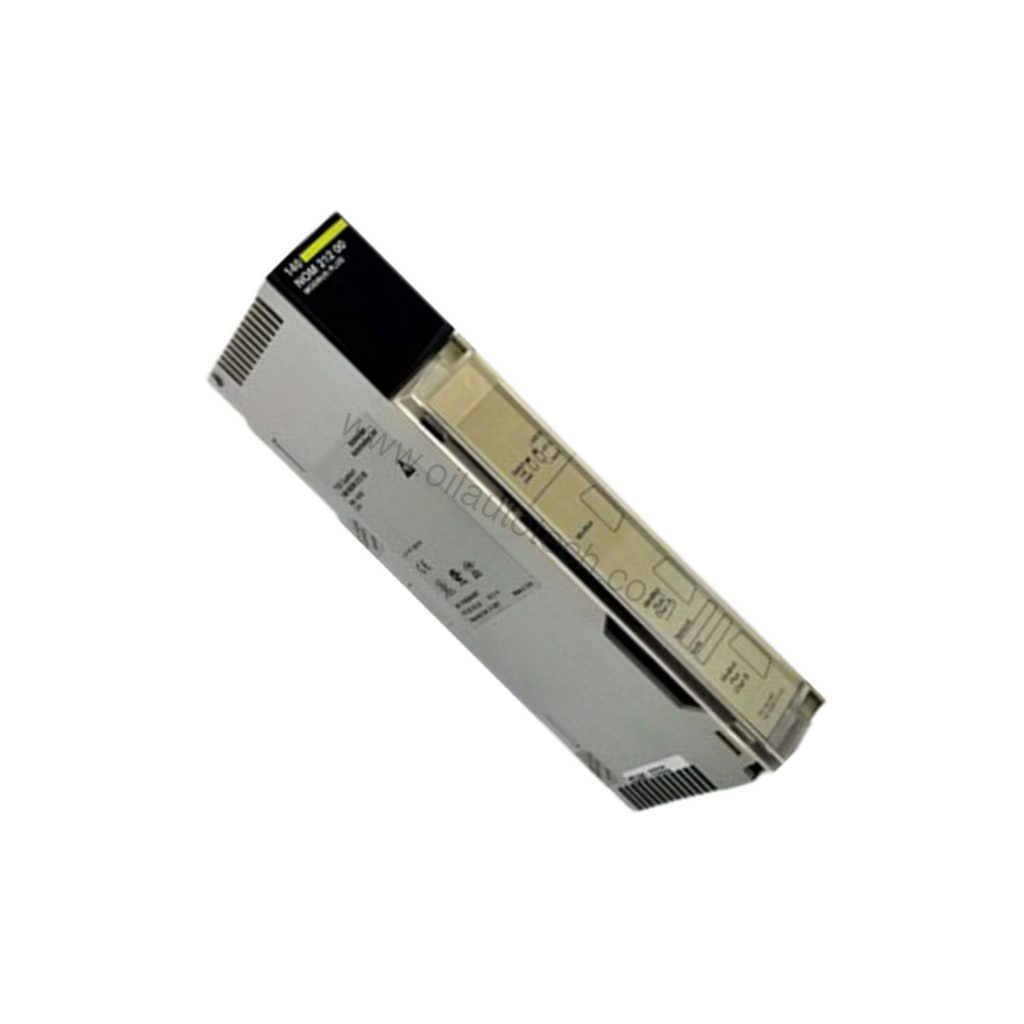

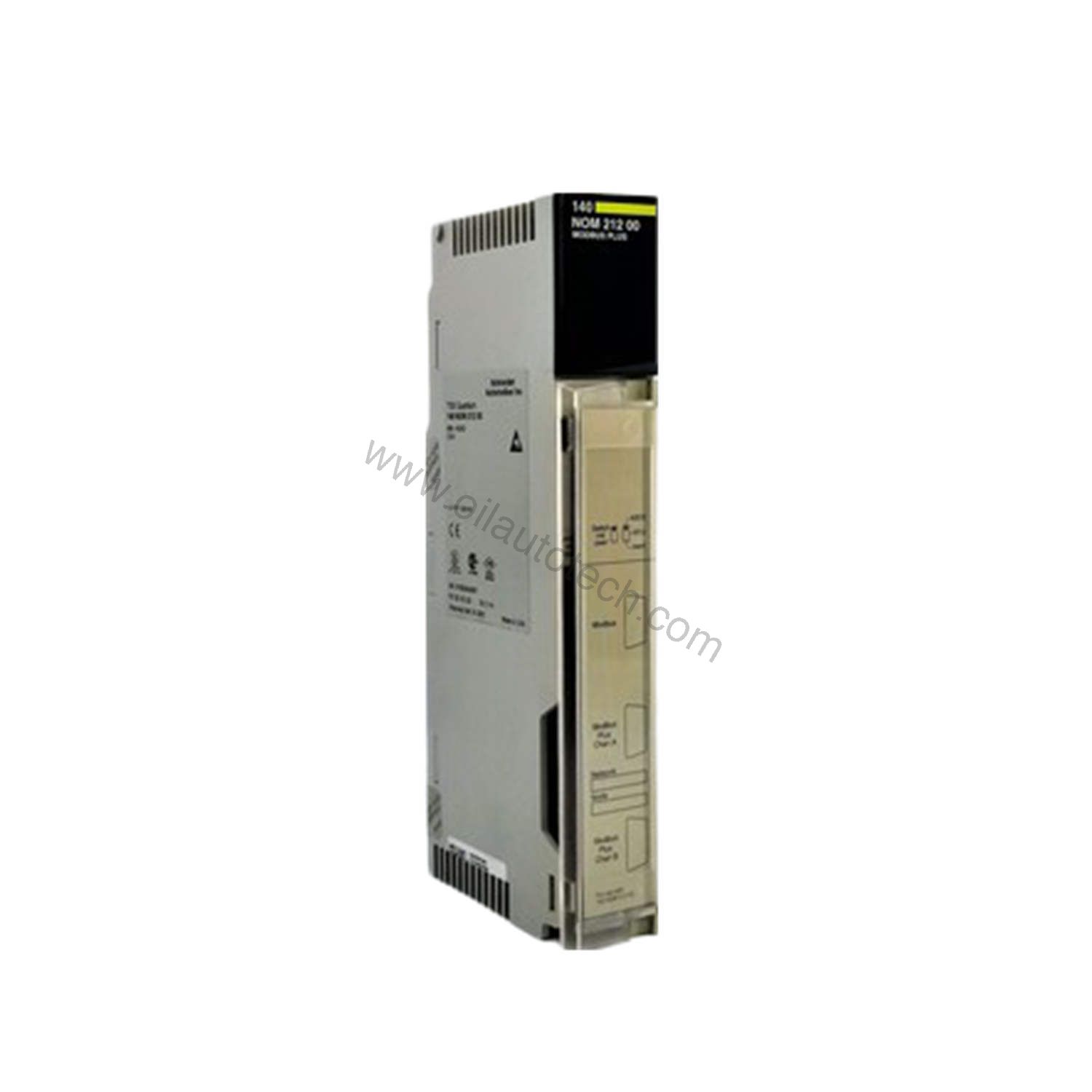

This module is a DIO head-end adaptor built for the Modicon Quantum automation platform. It manages two Modbus RS-485 interfaces and one Modbus RS-232 interface, reaching a transmission rate of 1 Mbps. With 30 input and 32 output words, it handles meaningful data throughput for distributed control. It is compatible with 140CRA21210 and 140CRA21220 drops.
Key Parameters at a Glance
| Specification | Value |
|---|---|
| Product line | Modicon Quantum |
| Interfaces | 2 Modbus RS-485, 1 Modbus RS-232 |
| Transmission rate | 1 Mbps |
| I/O words | 30 I / 32 O |
| Power dissipation | 4 W |
| Bus current requirement | 780 mA |
| Ambient operating temperature | 0 to 60 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508 |
Built for Demanding Environments
The 140NOM21200C carries a conformal coating (Humiseal 1A33) that shields circuitry from moisture and contaminants. It resists electrostatic discharge at 4 kV contact and 8 kV on air per IEC 801-2, and withstands electromagnetic fields of 10 V/m from 80 to 2000 MHz per IEC 801-3. Storage temperature spans -40 to 85 °C, so the unit survives harsh logistics and unheated enclosures.
Where It Fits
Oil and gas facilities often run legacy Quantum racks alongside newer control layers. This adapter keeps those distributed I/O drops communicating. Water treatment plants use Modbus RS-485 trunk lines over long cable runs, where the 1 Mbps rate and redundant twisted-pair ports pay off. Factory automation cells benefit from the 30 I/32 O word capacity when consolidating discrete signals.
Integration Note
Wiring into Modbus networks may require an external gateway or connection module depending on your existing architecture. Confirm cables and gateways with your supplier before commissioning.
Practical Selection Advice
Before ordering, verify your drop compatibility with 140CRA21210 or 140CRA21220 modules and confirm your bus can supply 780 mA. Check that your enclosure maintains 0 to 60 °C. If you need hands-on technical selection help, Oil AutoTech offers fast-dispatch spares for oil, gas and industrial automation applications with quick worldwide delivery. Contact Oil AutoTech today for pricing and availability.
