Product Overview

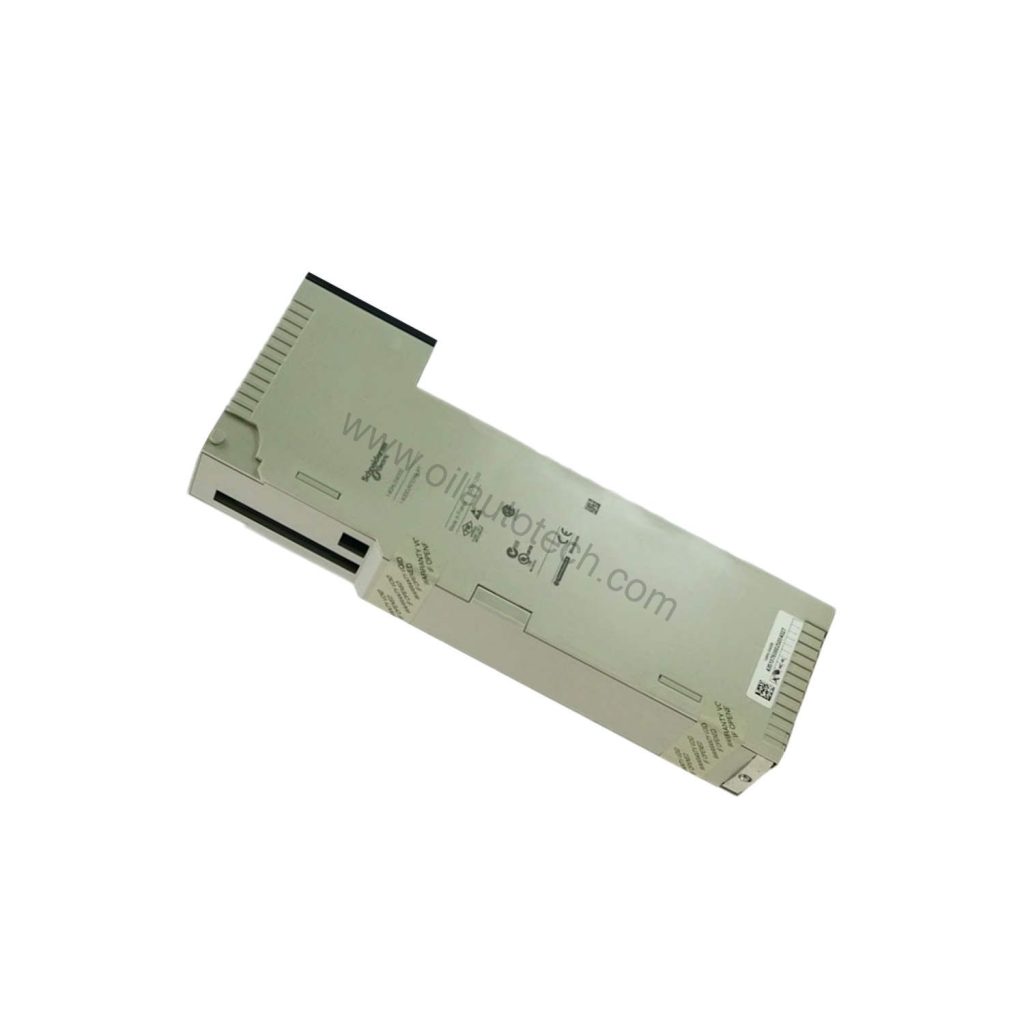

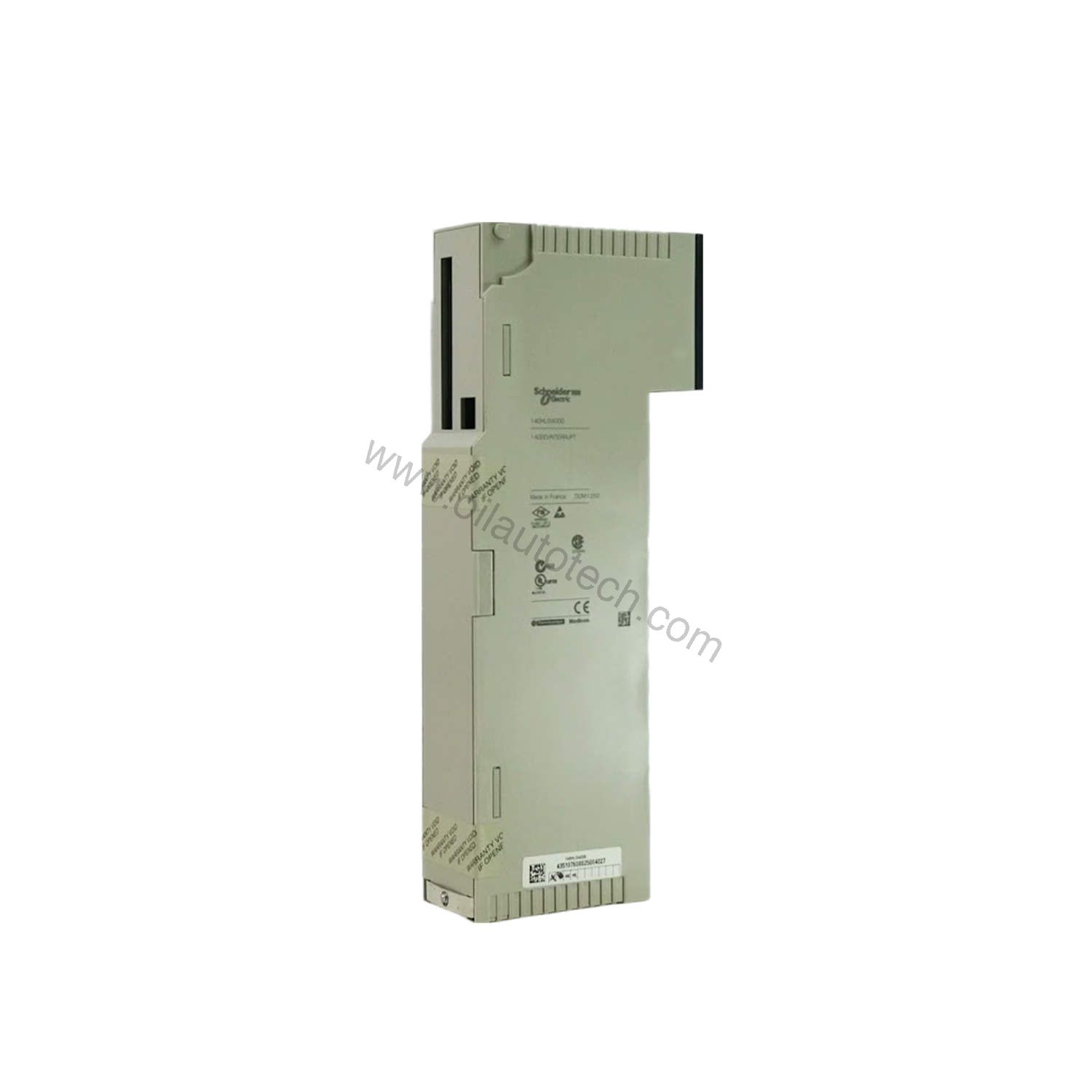

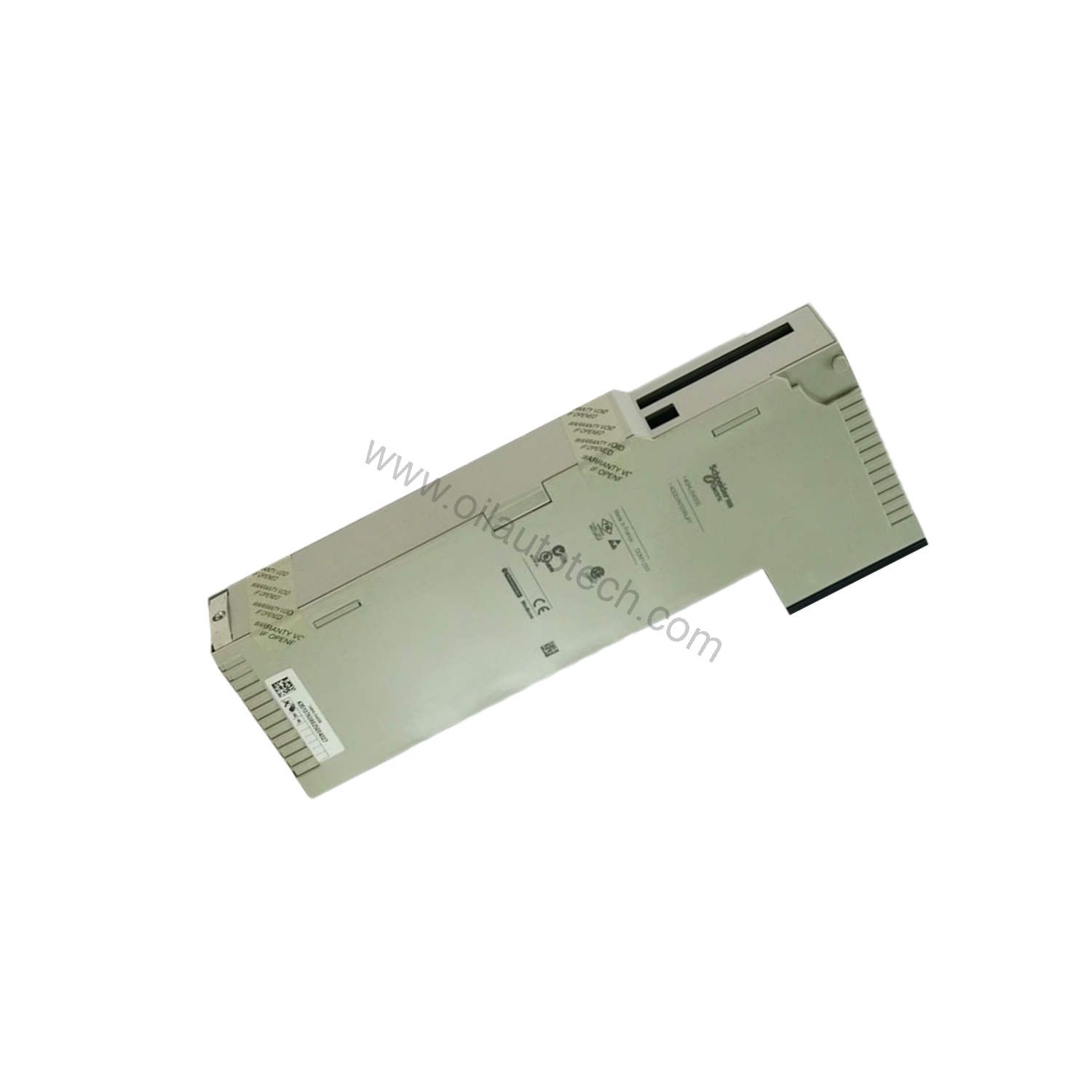

The Schneider Electric 140MMB10200 is a multi-axis motion controller built for the Modicon Quantum series. It handles complex motion control tasks in demanding industrial settings. This controller supports a rated supply voltage of 100 to 240 Volts AC or 24 Volts DC, giving you flexibility across different power configurations. With a permissible supply voltage range of 96 to 264 Volts AC and a supply frequency of 50 to 60 Hertz, it adapts to varied electrical standards.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Multi-Axis Motion Controller |
| Product Line | Modicon Quantum |
| Rated Supply Voltage | 100 to 240 Volts AC or 24 Volts DC |
| Permissible Supply Voltage Range | 96 to 264 Volts AC |
| Supply Frequency | 50 to 60 Hertz |
| Built-in Communication Networks | Serial link, SERCOS III, Modbus TCP, EtherNet/IP, USB Mini-B programming port |
| Optional Communication Networks | CANopen and EtherNet |
| Protection Rating | IP20 |
| Ambient Operating Temperature | 0 to 60°C (non-condensing) |
| Humidity Tolerance | 10% to 95% relative humidity (without condensation) |
| External Connection Type | Screw-type terminal block |
| Storage Temperature | -25 to 70°C (non-condensing) |
| Operating Altitude | 6,561.68 feet (2,000 meters) above sea level |
| Weight | 23 pounds (10.43 kilograms) |
Why Choose the 140MMB10200 Over Similar Controllers
When you compare the 140MMB10200 to other motion controllers in its class, several advantages stand out:
- Built-in multi-protocol support: Unlike many controllers that require add-on modules for SERCOS III or EtherNet/IP, this unit includes Serial link, SERCOS III, Modbus TCP, EtherNet/IP, and a USB Mini-B programming port as standard.
- Wide voltage tolerance: The 96 to 264 Volts AC permissible range handles voltage fluctuations better than fixed-voltage alternatives.
- Flexible power options: Accepts both AC and DC supply, so you can deploy it in mixed-power environments without extra conversion equipment.
- Rugged environmental specs: Operates from 0 to 60°C and tolerates up to 95% relative humidity, matching or exceeding typical industrial controller ratings.
Integration and Communication
The 140MMB10200 communicates over Serial link, SERCOS III, Modbus TCP, EtherNet/IP, and a USB Mini-B programming port. Optional CANopen and EtherNet connectivity expand your networking options. When wiring into fieldbus networks like EtherNet/IP or Modbus TCP, you may need an external gateway or connection module. Confirm cable and gateway compatibility with your supplier before installation.
Applications in Oil, Gas, and Industrial Automation
This controller suits complex motion control applications across oil and gas, manufacturing, and process industries. Its SERCOS III and EtherNet/IP support makes it a practical choice for multi-axis coordination in packaging lines, rotary tables, and automated valve actuation. The IP20 rating protects against dust and incidental contact in control cabinets. With an operating altitude of up to 2,000 meters and humidity tolerance of 10% to 95%, it performs reliably in diverse plant environments.
Installation and Maintenance Tips
Mount the 140MMB10200 inside a protective enclosure to maintain its IP20 rating. Use the screw-type terminal block for secure external connections. Keep the ambient temperature between 0 and 60°C and avoid condensation. Inspect connections periodically and follow Schneider Electric’s safety manual for all maintenance procedures. For fast dispatch, worldwide, contact Oil AutoTech for spares when you need them.
Selection Checklist
Before ordering, verify your supply voltage matches the 100 to 240 Volts AC or 24 Volts DC rating. Confirm your network protocol is among the built-in options or plan for optional CANopen/EtherNet modules. Check that your installation altitude stays below 2,000 meters. Please verify current lifecycle status and availability with Oil AutoTech before ordering.
Frequently Asked Questions
What communication protocols does the 140MMB10200 support?
It includes Serial link, SERCOS III, Modbus TCP, EtherNet/IP, and a USB Mini-B programming port. Optional CANopen and EtherNet are also available.
Can I use the 140MMB10200 with a 24 Volts DC power supply?
Yes. The rated supply voltage is 100 to 240 Volts AC or 24 Volts DC, with a permissible AC range of 96 to 264 Volts.
What is the operating temperature range?
The controller operates from 0 to 60°C in non-condensing environments and stores safely from -25 to 70°C.
Does the 140MMB10200 require external gateways for fieldbus integration?
When connecting to EtherNet/IP or Modbus TCP networks, you may need an external gateway or connection module. Confirm requirements with Oil AutoTech.
What is the weight of the 140MMB10200?
It weighs 23 pounds (10.43 kilograms).
Contact Oil AutoTech today for pricing and availability.
