Case Study: Solving High-Altitude Hazardous Area Output Control
A gas processing plant at 4,800 meters needed reliable discrete outputs inside a Zone 20 hazardous area. Standard modules failed under ESD and EMF stress. The 140DIO33000C from Schneider Electric solved the problem. This intrinsically safe discrete output module for the Modicon Quantum platform delivers certified protection and stable performance where others cannot.
What Is the 140DIO33000C?

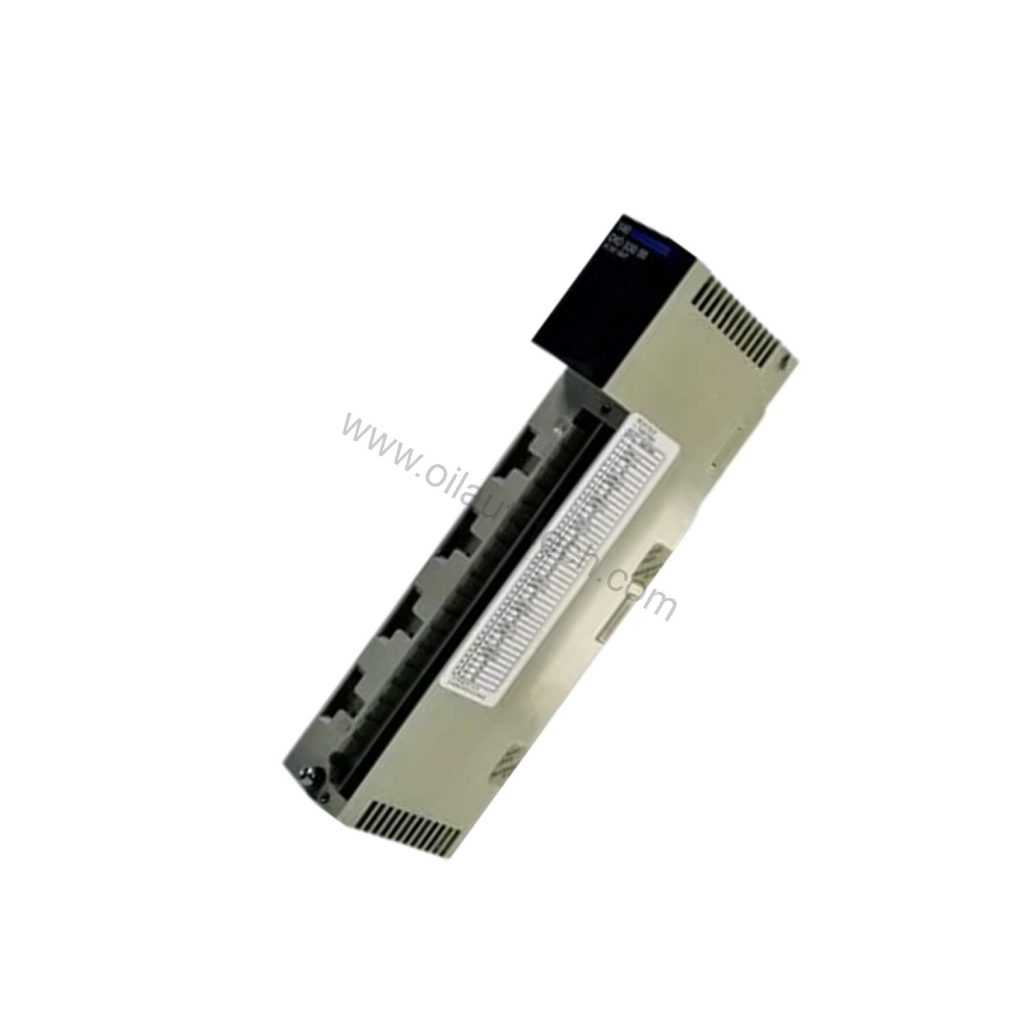

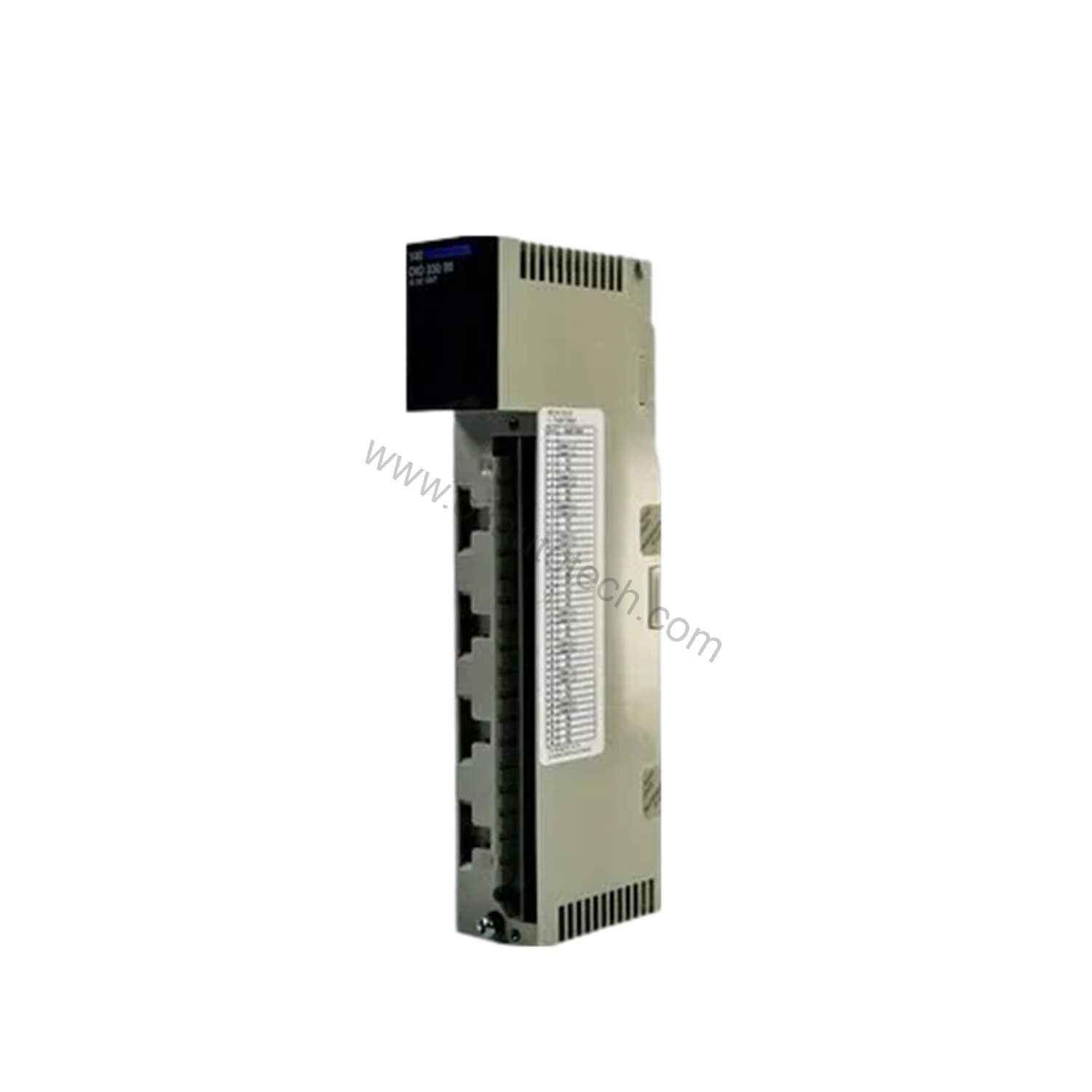

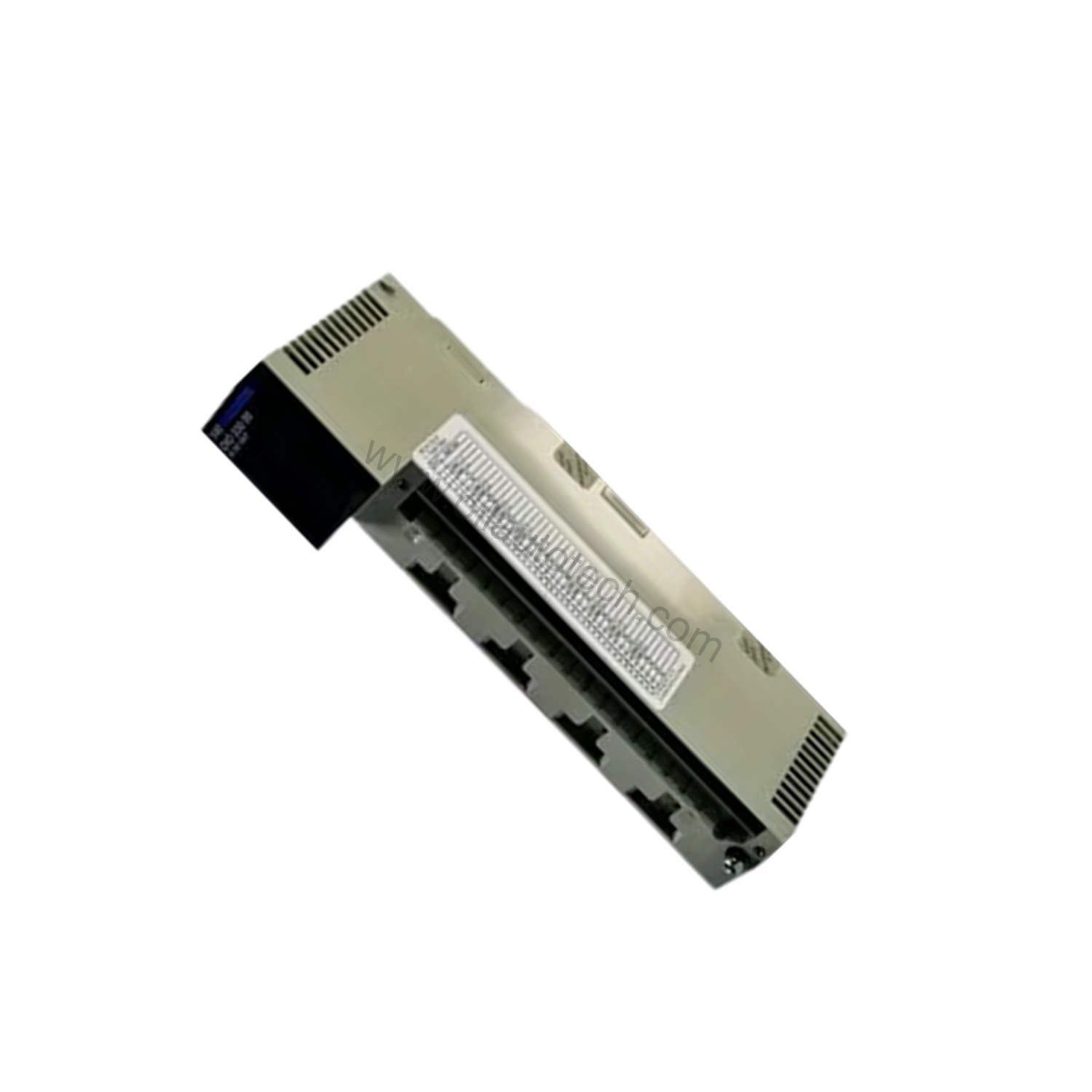

The 140DIO33000C is an intrinsically safe discrete output module from Schneider Electric’s Modicon Quantum automation platform. It provides open collector outputs at 24 V for hazardous locations rated Zone 20, 21, or 22. The module carries ATEX and FM certifications, including SIRA 02ATEX2345X and FM Class 1 Division 2. It also meets UL 508 and CSA C22.2 No 142 standards.
Key Technical Specifications
| Specification | Value |
|---|---|
| Output Voltage | 24 V |
| Output Type | Open Collector |
| Max Load Current | 360 mA per module, 45 mA per point |
| Off State Leakage | 0.4 mA per point |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Operating Altitude | ≤ 5000 m |
| ESD Resistance | 4 kV contact, 8 kV air |
| EMF Resistance | 10 V/m (80–2000 MHz) |
| Humidity | 95% without condensation |
| Response Time | 1 ms resistive |
| Isolation | 2500 V DC for 1 minute |
| Power Dissipation | 5 W |
| Bus Current | 2.2 A |
| Weight | 0.99 lb (0.45 kg) |
Practical Benefits for Hazardous Areas
The 140DIO33000C handles demanding conditions. Its 4 kV contact and 8 kV air ESD resistance protects against static discharge. The 10 V/m EMF resistance across 80–2000 MHz keeps signals stable near heavy electrical equipment. With a 1 ms response time, it suits fast switching applications. The internal fuse and transient voltage suppression add reliability.
Where It Fits
Oil and gas facilities use this module for valve control, alarm signaling, and actuator switching in Zone 20, 21, or 22 areas. Chemical plants benefit from its conformal coating (Humiseal 1A33) in humid environments. High-altitude mining operations rely on its 5000 m operating altitude rating. The 140DIO33000C works with Concept V2.2+, ProWORX, and Unity Pro software.
Installation and Maintenance
Mount the module in a Modicon Quantum rack. Ensure proper grounding for ESD protection. The operating temperature range of 0 to 60°C requires adequate cabinet ventilation. Check connections periodically and inspect for dust buildup. Follow manufacturer safety guidelines for hazardous area installations. Do not attempt hot swapping, as intrinsic safety standards prohibit it.
Why Buy from Oil AutoTech
Oil AutoTech specializes in fast-dispatch spares for oil, gas, and industrial automation. We provide hands-on technical selection help and quick worldwide delivery. Contact Oil AutoTech today for pricing and availability.
FAQ
What is the 140DIO33000C used for?
It provides intrinsically safe discrete outputs in Zone 20, 21, or 22 hazardous areas, typically for valve control and alarm signaling.
What is the output voltage and current?
The output voltage is 24 V. Maximum load current is 360 mA per module and 45 mA per point.
Does it support hot swapping?
No. Hot swapping is not allowed per intrinsic safety standards.
What software is compatible?
It works with Concept V2.2 and above, ProWORX, and Unity Pro.
What is the operating altitude?
The module operates at altitudes up to 5000 meters.
