Buyer’s Guide to the Schneider Electric 140DDI84100C

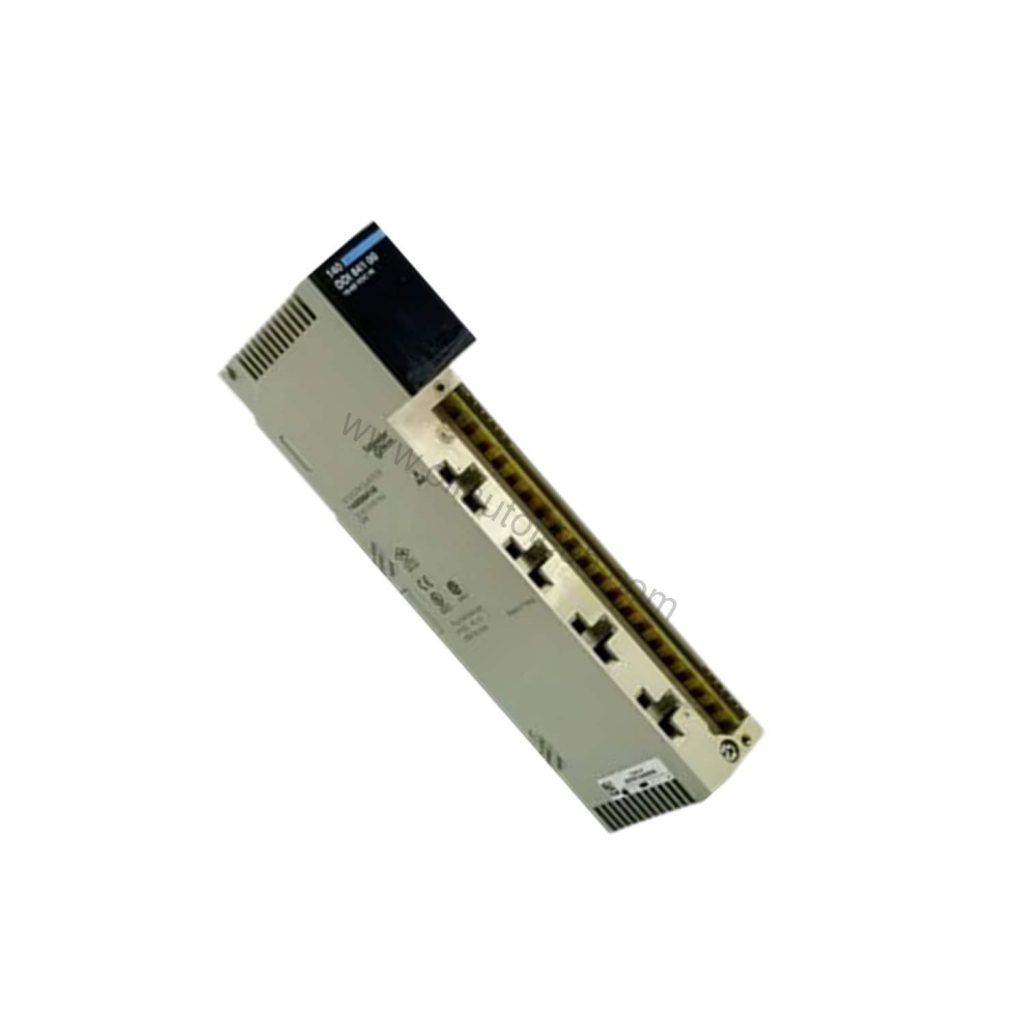

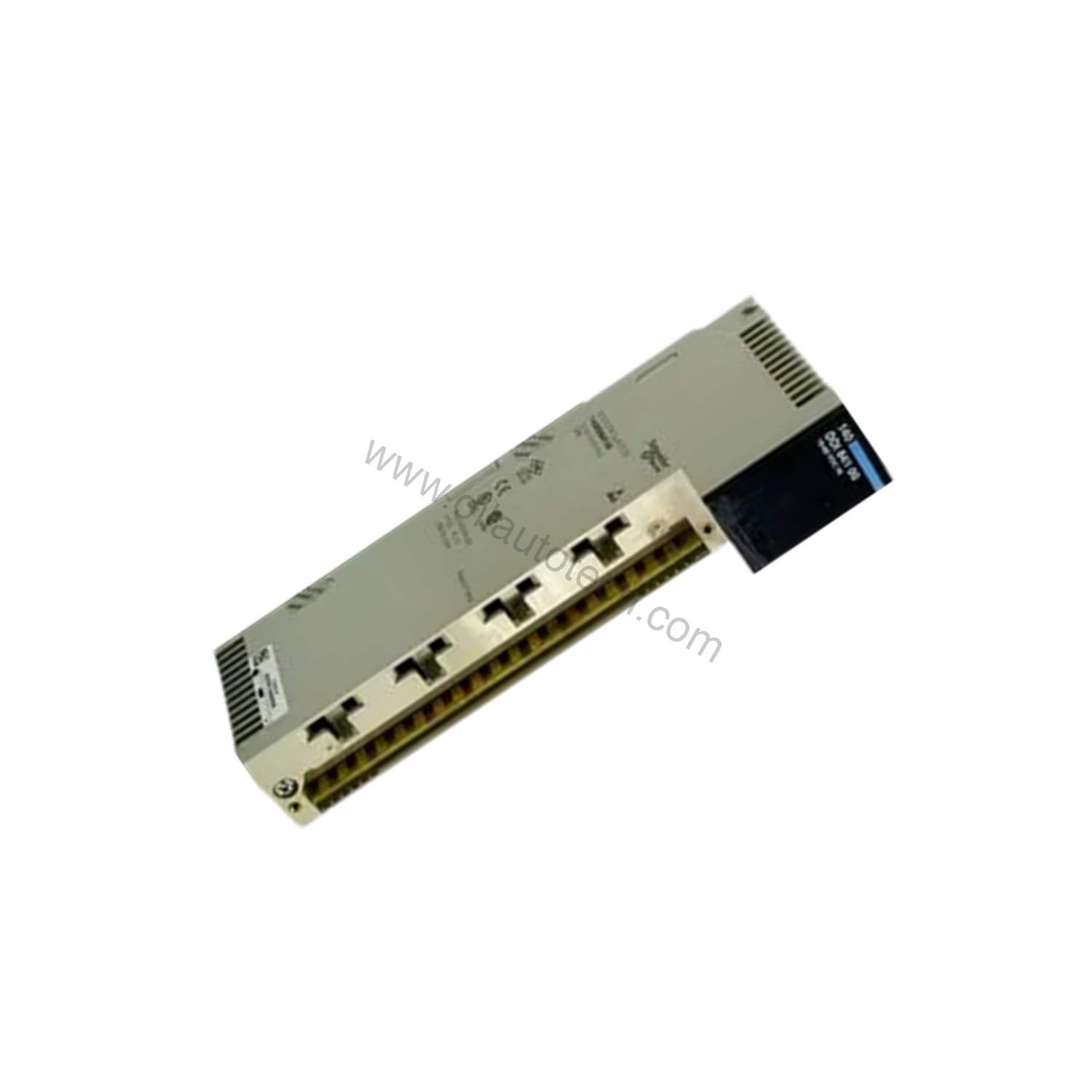

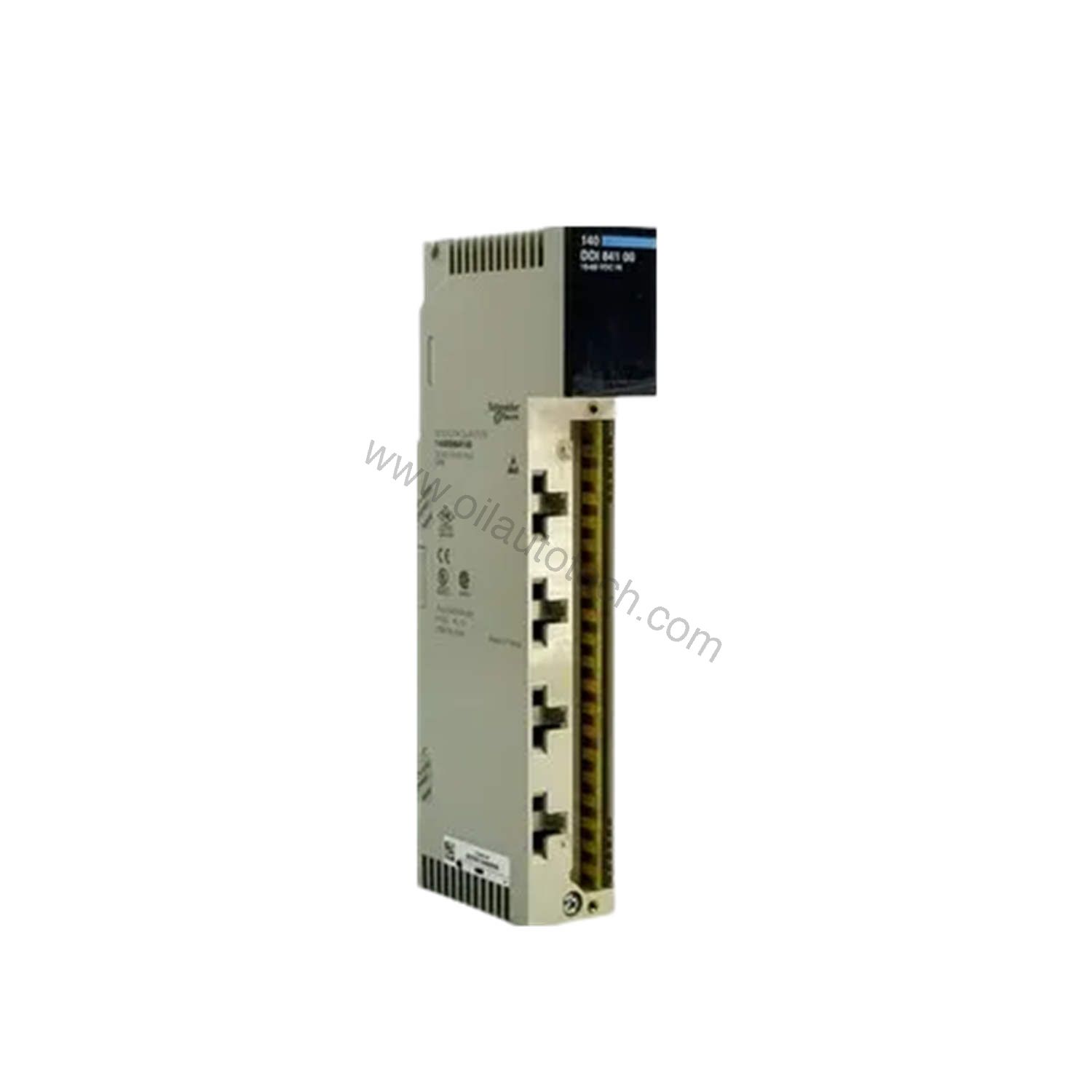

When a control system needs reliable discrete signal acquisition, the 140DDI84100C from Schneider Electric delivers. This Modicon Quantum discrete input module packs 16 inputs into 8 groups, giving you dense I/O without sacrificing isolation or speed. For oil, gas, and industrial automation teams, it is a practical building block for monitoring switches, relays, and field contacts.
What Makes This Module a Smart Choice
The 140DDI84100C accepts a wide 10–60 V DC input range, so it fits 12 V, 24 V, 48 V, and 60 V signal levels without external conditioning. Each input draws modest current—for example, 24 V at 6–30 mA—keeping power needs low. With a 4 ms response time and switching frequency up to 100 Hz, it captures fast events like valve feedback or limit switches. Isolation between group and bus is rated 2500 Vrms, protecting your controller from spikes and noise.
Key Specifications at a Glance
| Parameter | Value |
|---|---|
| Discrete inputs | 16 (8 groups) |
| Input voltage limits | 10–60 V DC |
| Absolute max voltage | 75 V |
| Response time | 4 ms (0→1 and 1→0) |
| Switching frequency | ≤ 100 Hz |
| Isolation (group to bus) | 2500 Vrms for 1 minute |
| Power dissipation | 1 W + (0.62 × points on) |
| Bus current | 200 mA |
| Operating temperature | 0…60 °C |
| Weight | 0.3 kg |
Where It Fits in Your Operation
In oil and gas, this module monitors pump status, valve positions, and emergency shutdown contacts. Its 2500 Vrms isolation and conformal coating handle harsh electrical environments. For factory automation, it reads limit switches and pushbuttons on packaging or assembly lines. The 4 ms response ensures no missed pulses. Water treatment plants use it for float switches and alarm contacts, relying on the wide voltage range to interface with legacy 48 V systems.
Integration and Compatibility
The 140DDI84100C is a standard-format module for the Modicon Quantum platform. It requires one input word for addressing, simplifying PLC configuration. Local LEDs indicate bus communication (green), external fault (red), and individual input status (16 green). The module meets UL 508 and CSA C22.2 No 142 standards, with FM Class 1 Division 2 certification for hazardous locations. When wiring into fieldbus networks, confirm gateway or connection module requirements with your supplier.
Selection Checklist
Before ordering, verify your signal voltage (10–60 V DC), required input count (16), and response time needs. Check that your Quantum rack has space and that your power budget covers 200 mA bus current plus 1 W dissipation. The 140DDI84100C ships with conformal coating for added protection. For hands-on technical selection help and fast dispatch, contact Oil AutoTech today for pricing and availability.
Maintenance Tips for Long Service
Inspect module LEDs periodically for fault indications. Keep the cabinet within 0…60 °C and 95% relative humidity (non-condensing). Follow manufacturer’s safety manual for any maintenance. With proper care, this module supports years of reliable operation.
