Why the 140DDM69000 Belongs on Your Shortlist
Downtime on a Modicon Quantum rack rarely waits for a purchasing cycle. When a discrete I/O slot fails, the practical question is not which module looks best on paper — it is which one matches your existing wiring, voltage range, and rack current budget without forcing a redesign. The Schneider Electric 140DDM69000 answers that question directly: a discrete I/O module with 4 sinking inputs and 4 isolated solid-state outputs, built for the Quantum platform.
This buyer’s guide walks through the parameters that actually decide whether the 140DDM69000 fits your panel, plus the checks worth making before you commit.
What the 140DDM69000 Actually Does

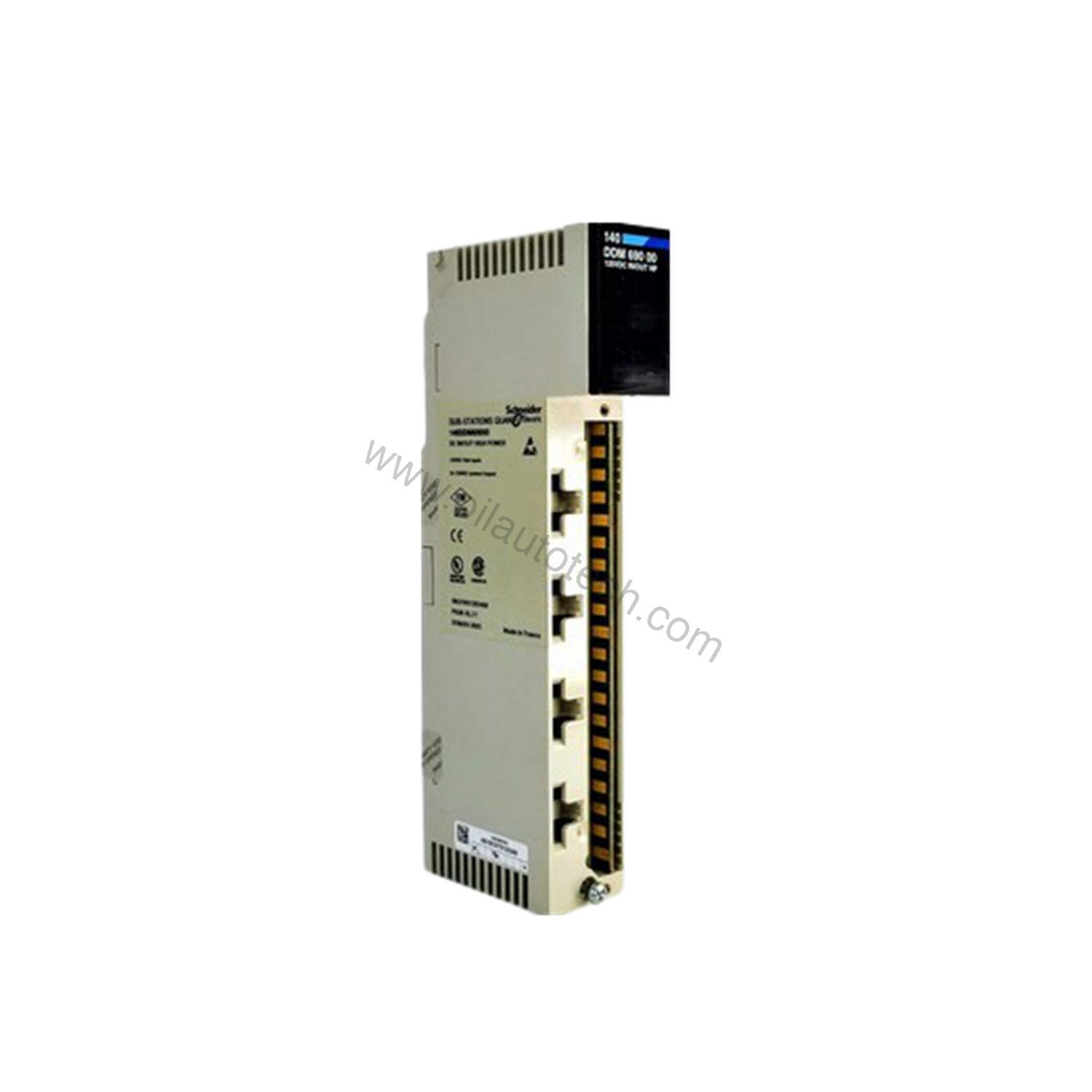

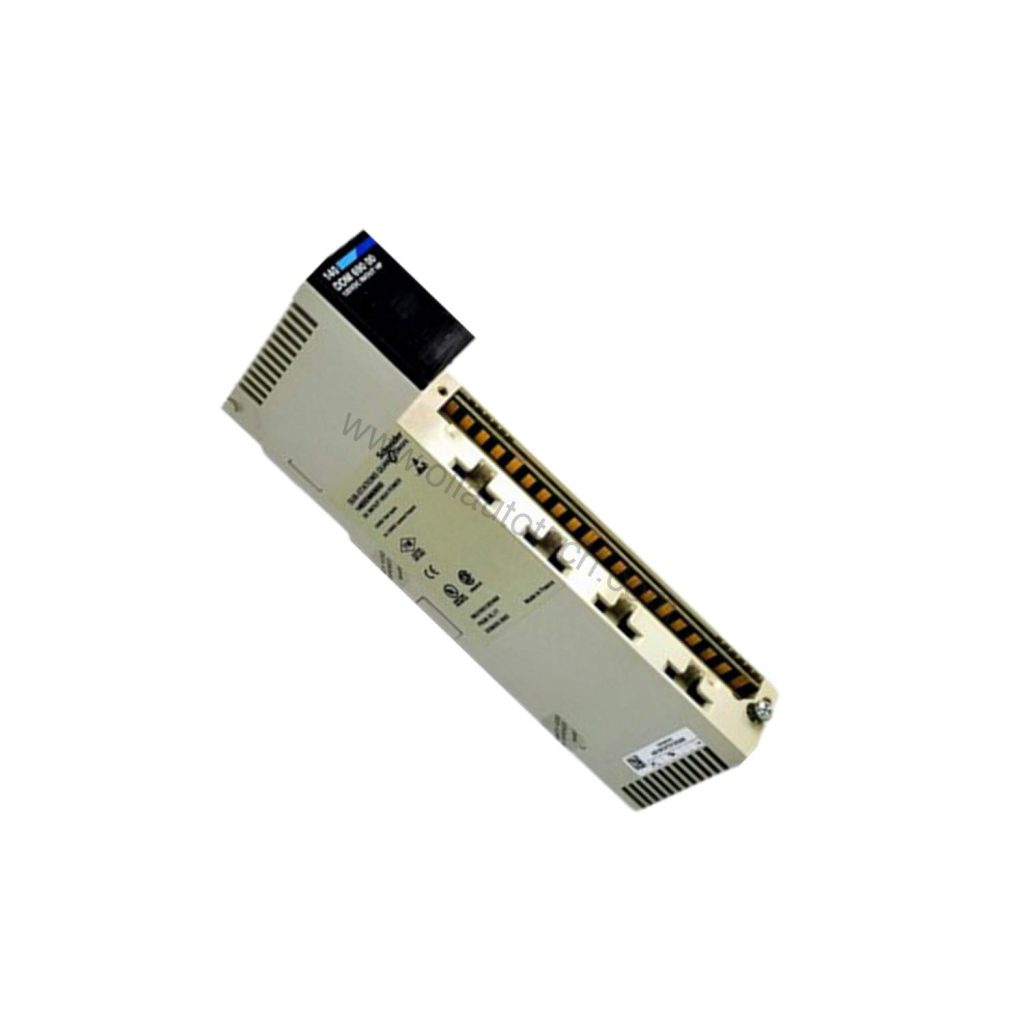

The 140DDM69000 is a discrete I/O module in the Modicon Quantum series. It carries 8 I/O points in total — 4 discrete inputs and 4 discrete outputs — in a single slot. Inputs use sink logic for accurate signal reception from field devices. Outputs are solid state and isolated, and they accept either sink or source wiring, which gives you flexibility when matching existing field circuits.
That combination suits panels where a small, mixed block of discrete signals must be handled close to the process rather than routed to a distant rack.
Key Parameters That Drive the Buying Decision
Voltage window
The 140DDM69000 operates across 19.2 to 156.2 VDC. That is a wide discrete I/O range, so the same module can serve low-voltage DC control circuits and higher-voltage DC signalling without a separate part number for each.
Leakage and bus load
Maximum leakage current is 1.2 mA at 150 VDC. In practice this matters when driving sensitive input devices, because leakage can hold an input in an unintended state. The bus current requirement is 350 mA, which you should count against the Quantum rack power budget before adding modules.
Output technology
Solid-state, isolated outputs switch without mechanical contacts, so there are no contact wear points to schedule for replacement. Isolation also limits fault propagation between output channels and the backplane.

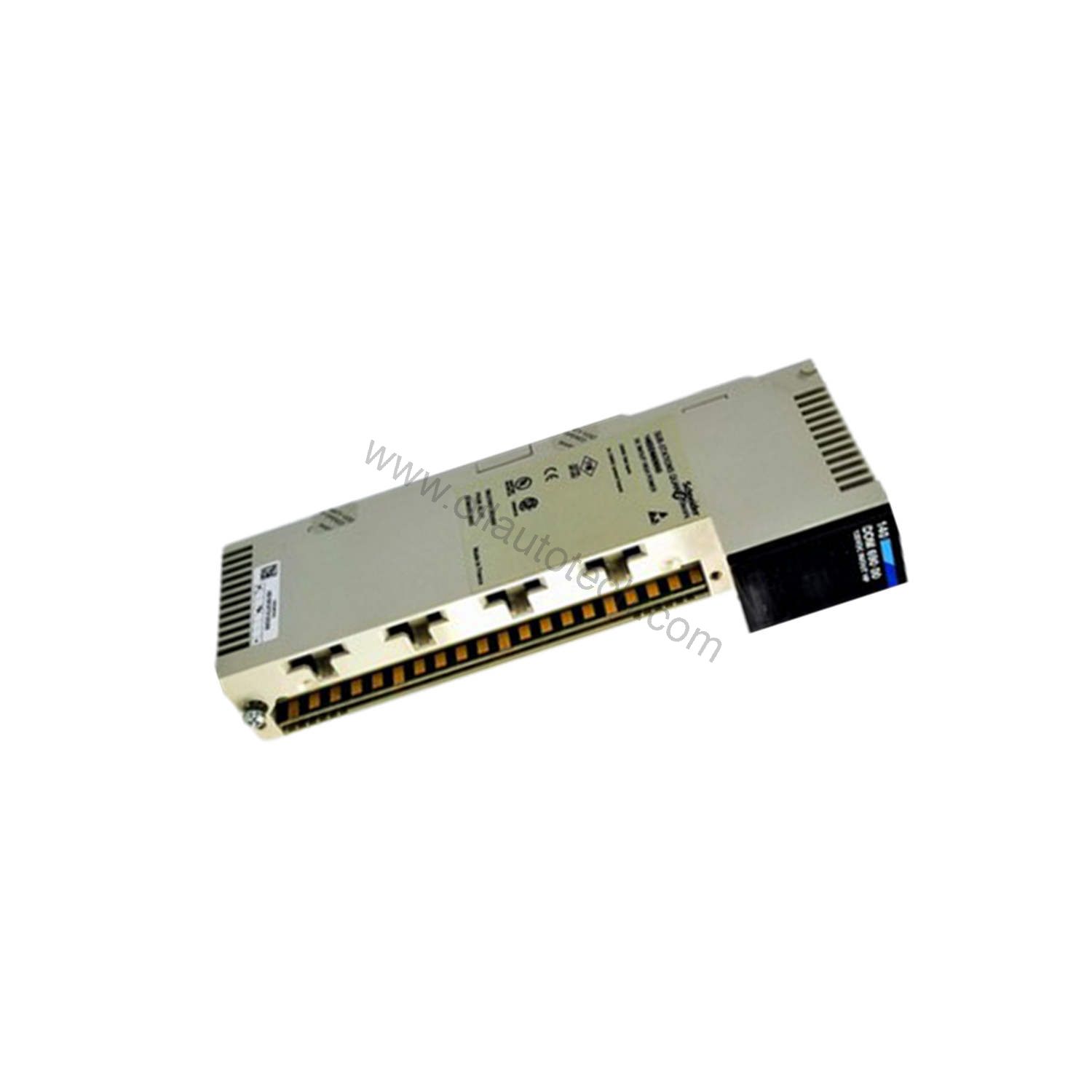

Physical footprint
The module measures 163 mm high, 45 mm wide, and 312 mm deep (6.42 in x 1.77 in x 12.28 in) and weighs 1.50 lbs (0.68 kg). The 45 mm width is the figure to check against your available slot pitch.
Where This Module Fits in the Field
Oil and gas skids. Discrete valve position feedback and pilot signals on remote skids often run on DC circuits inside the 19.2–156.2 VDC window. The 140DDM69000 handles both directions of the signal path in one slot.
Upgrade projects. When a Quantum rack is being refreshed rather than replaced, matching the existing I/O type, logic, and voltage range avoids rewiring field terminations. The 140DDM69000 keeps the electrical interface consistent.
Mixed-signal panels. Four inputs and four outputs in one module reduce the number of distinct spares you need to hold, which simplifies inventory without changing panel architecture.
Before You Order: A Practical Checklist
Confirm four things against your application:
- Logic match. Inputs are sink; outputs are sink or source. Verify your field wiring convention.
- Voltage. Your field supply must fall within 19.2 to 156.2 VDC.
- Rack budget. Allow 350 mA of bus current for this module.
- Slot space. Check the 45 mm width and 312 mm depth against the enclosure.
If any of these need clarification, hands-on technical selection help is available — describe your rack and field devices and the right configuration can be confirmed before dispatch.
Sourcing and Availability
Quantum installations in oil, gas, and industrial automation environments often need spares when you need them, not after a long lead time. Oil AutoTech focuses on fast dispatch, worldwide, for automation spares in exactly this category. Please verify current lifecycle status and availability with Oil AutoTech before ordering.
Contact Oil AutoTech today for pricing and availability.
