When Legacy Control Still Runs the Plant
Plant managers know the story. A Modicon Quantum rack keeps a compressor station, a pipeline valve bank, or a packaging line running long after newer platforms arrive. The 140DAO84220 is one of those workhorse modules that quietly holds a process together. This Schneider Electric discrete output module delivers 16 AC Triac points for switching field devices across a 20 to 56 V AC range. When a channel fails, the whole line feels it. That is why having a ready-to-ship spare matters.
What the 140DAO84220 Actually Does

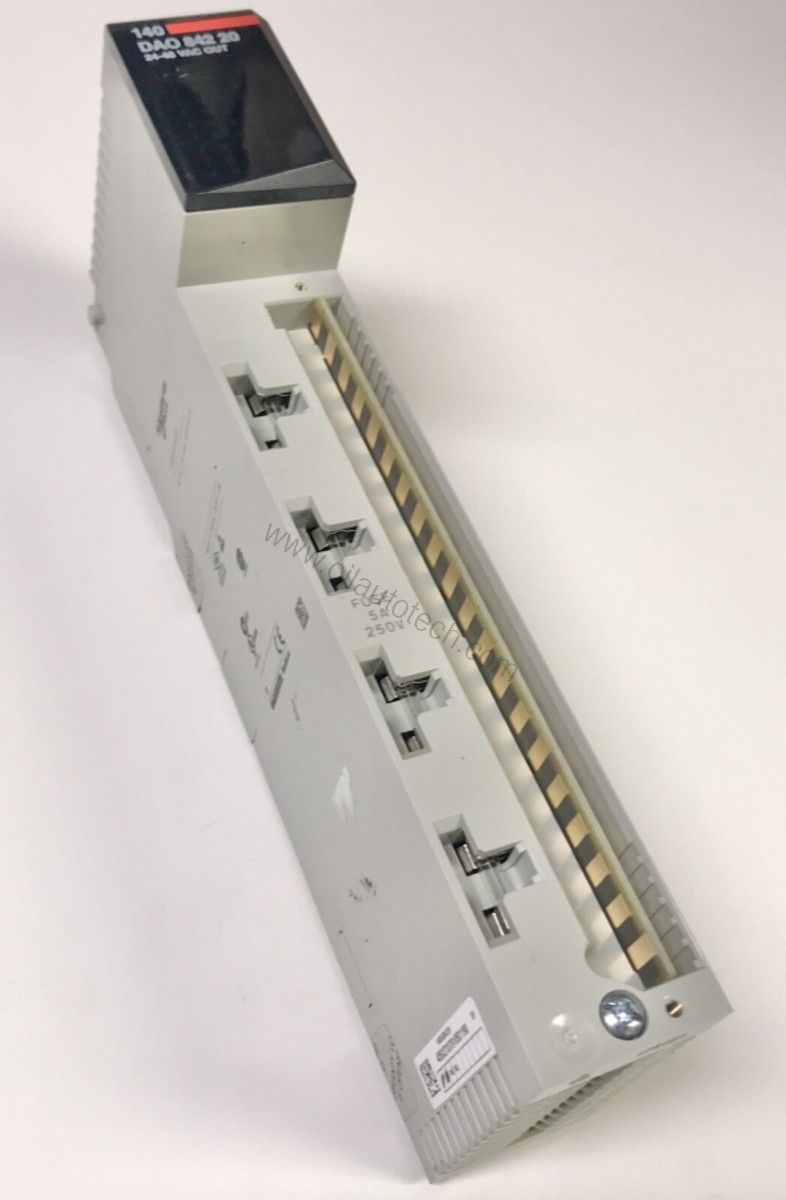

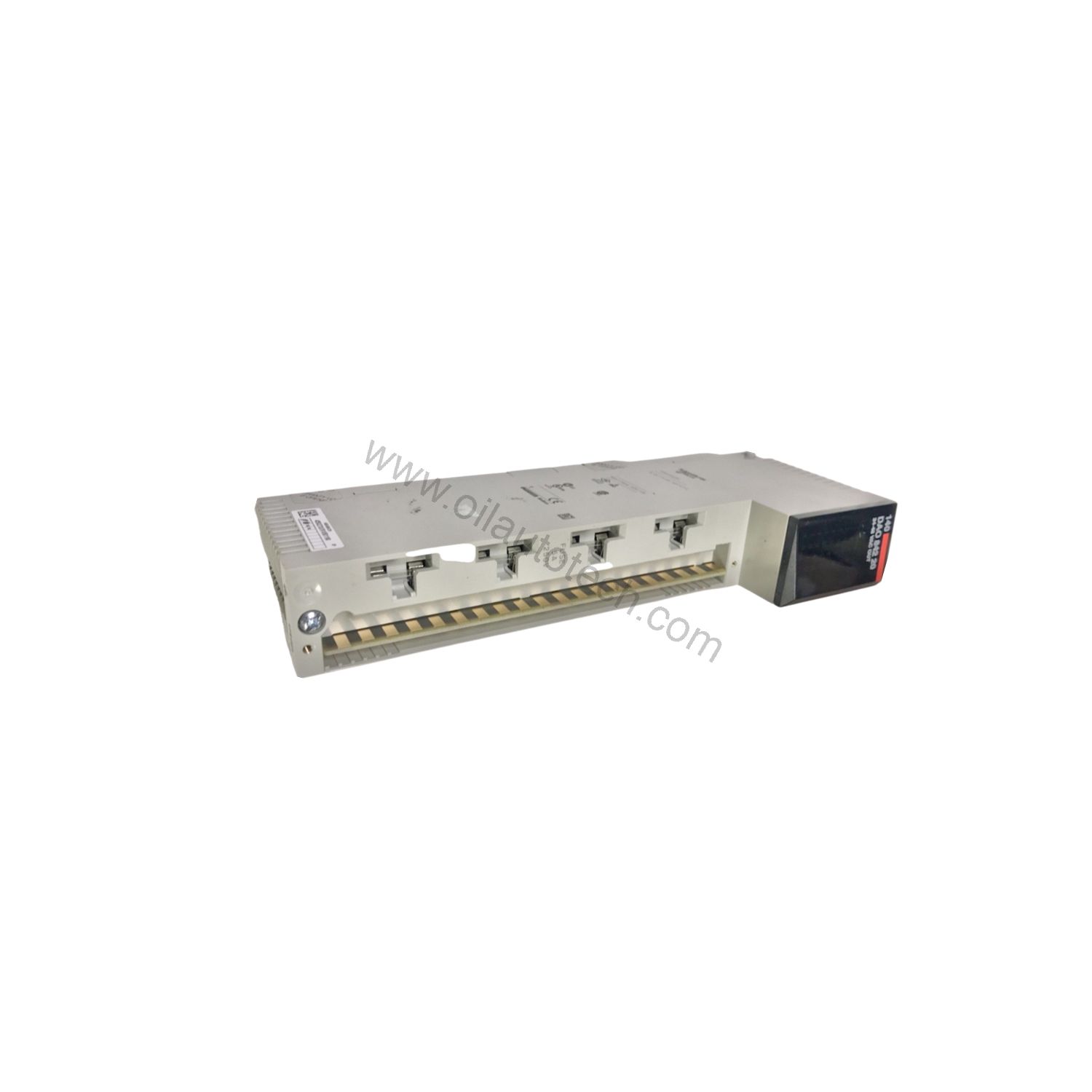

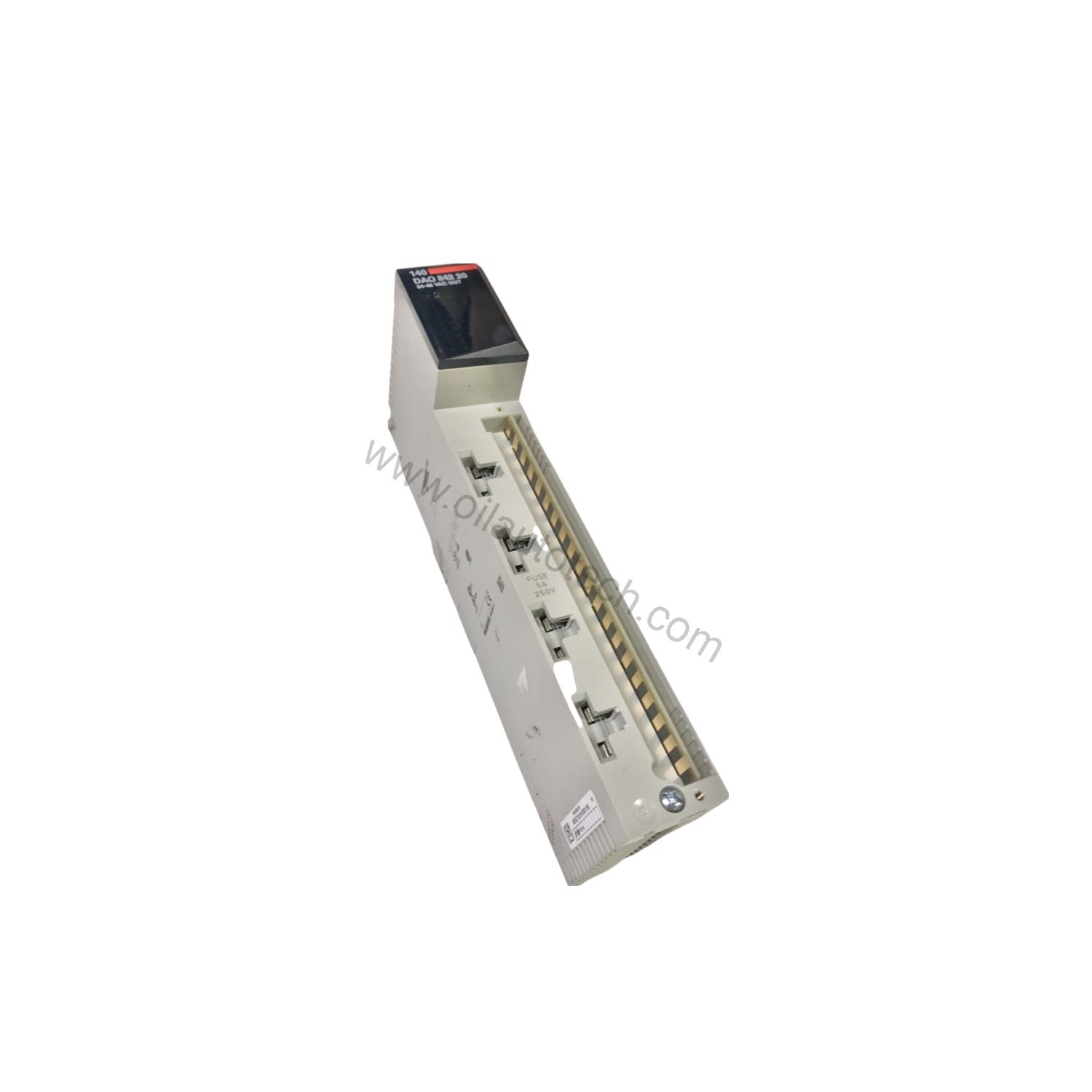

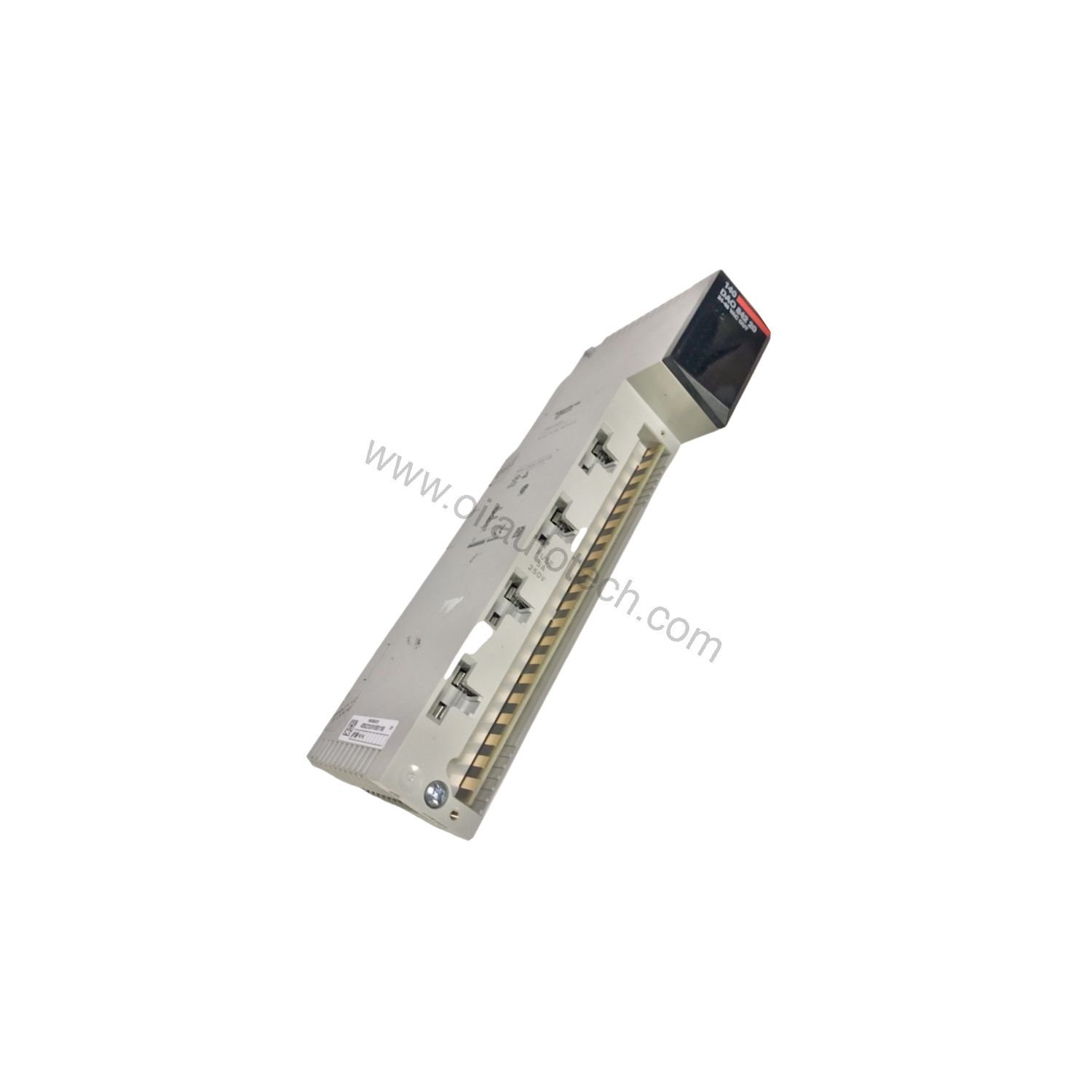

The 140DAO84220 is a 16-point AC output module from the Modicon Quantum series. It uses bidirectional thyristor (Triac) outputs, so it switches AC loads directly without external relays. The 16 points split into four isolated groups of four. Group-to-group isolation keeps faults contained, which protects the rest of your I/O rack.
Each output handles 4 A rms at 20 to 56 V AC. The module supports 16 A rms total, with 4 A rms per group. A zero-crossing Triac design gives a typical response time of 0.5 ms, fast enough for most discrete actuation tasks.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Modicon Quantum |
| Channels | 16 points (4 groups x 4) |
| Signal type | AC output, Triac |
| Voltage range | 20 to 56 V AC |
| Output current | 4 A rms per output; 16 A rms per module; 4 A rms per group |
| Isolation | Group-to-group |
| Diagnostics | Blown fuse, loss of field power (LED) |
| Response time | 0.5 ms typical |
| Slots required | 1 |
| Supply voltage | 5 V DC (backplane) |
| Bus current | 350 mA @ 5 V DC |
| Power consumption | 1.85 W + (1.1 V x total load current) |
| Protection rating | IP20 |
| Dimensions (HxWxD) | 250 x 40.34 x 103.85 mm |
| Weight | 0.3 kg |
Where This Module Earns Its Keep
Oil and gas operations often run Quantum racks in remote well pads, metering skids, and compressor controls. The 140DAO84220 suits these sites because its Triac outputs switch AC solenoids, pilot lights, and small contactors directly. Group isolation means one shorted field wire will not take down all 16 points. In water treatment, the same module drives AC valve actuators and pump status indicators. Packaging lines use it for AC motor starters and diverter gates where 0.5 ms response keeps cycle times tight.
Installation and Integration Notes
The 140DAO84220 occupies one slot in a Quantum backplane and draws 350 mA at 5 V DC. Plan your power budget around 1.85 W plus load-dependent dissipation. Because the outputs are AC Triac, verify that each field device matches the 20 to 56 V AC window before wiring. Keep the IP20 enclosure clean and dry; this rating suits cabinet mounting only. If you tie the module into a fieldbus network through a Quantum communication module, confirm gateway and cabling requirements with your supplier before commissioning.
Lifecycle Status and Sourcing
Schneider Electric has discontinued the 140DAO84220 (End of Sale). That does not mean your plant stops. It means sourcing gets harder. Oil AutoTech specializes in fast-dispatch spares for oil, gas, and industrial automation, with quick worldwide delivery and hands-on technical selection help. Contact Oil AutoTech today for pricing and availability.
FAQ
Is the 140DAO84220 still available?
Schneider Electric lists it as discontinued (End of Sale). Availability now depends on surplus and refurbished stock. Contact Oil AutoTech to confirm current inventory.
Can I use the 140DAO84220 with DC loads?
No. The outputs are AC Triac type rated for 20 to 56 V AC. DC loads require a different module.
What does the 0.5 ms response time mean in practice?
It is the typical turn-on delay from a zero-crossing Triac. Most discrete AC actuation tasks tolerate this easily.
How many slots does the 140DAO84220 need?
One slot in a Modicon Quantum backplane.
What diagnostics does it offer?
LED indication for blown fuse and loss of field power.
