Reliable Control for Demanding Automation

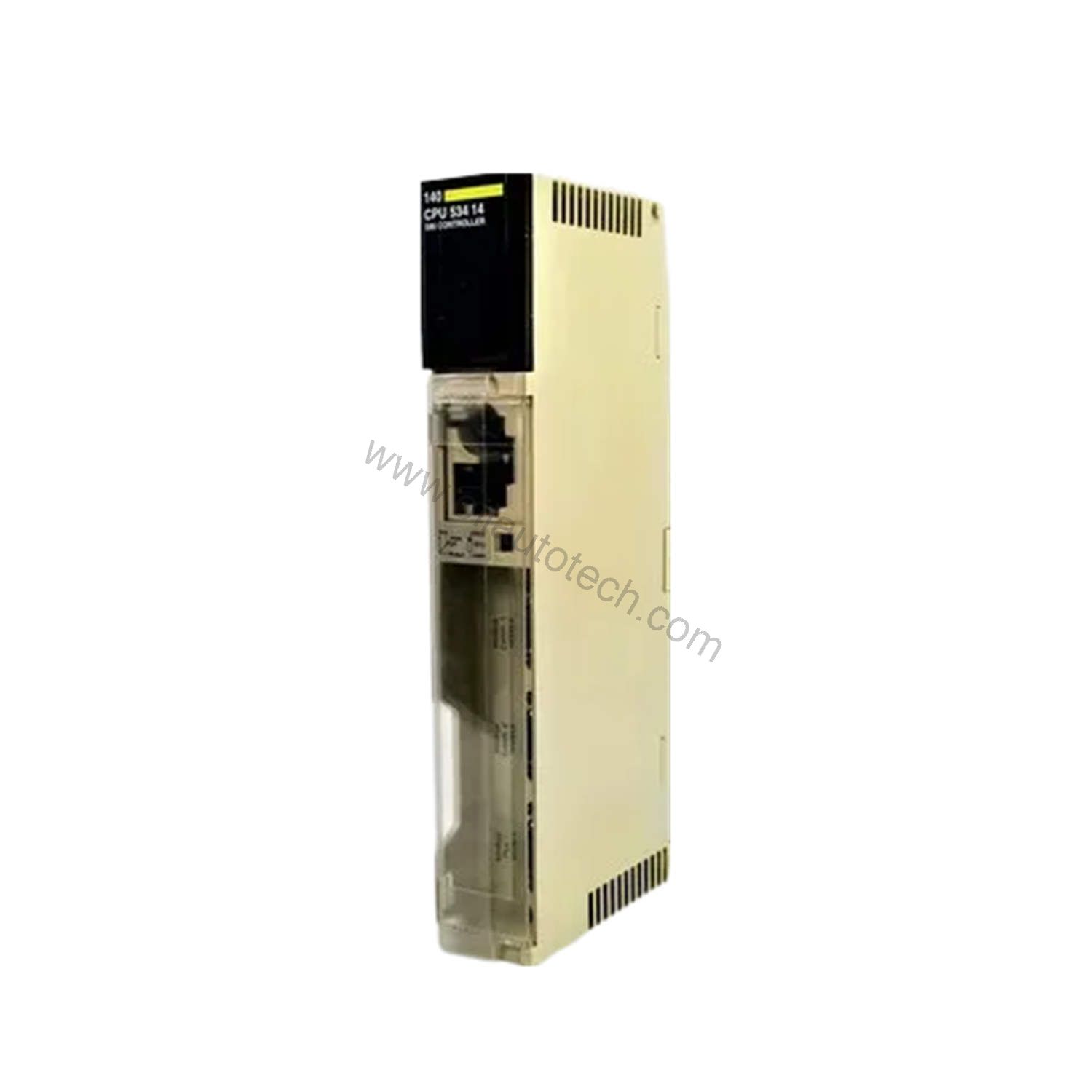

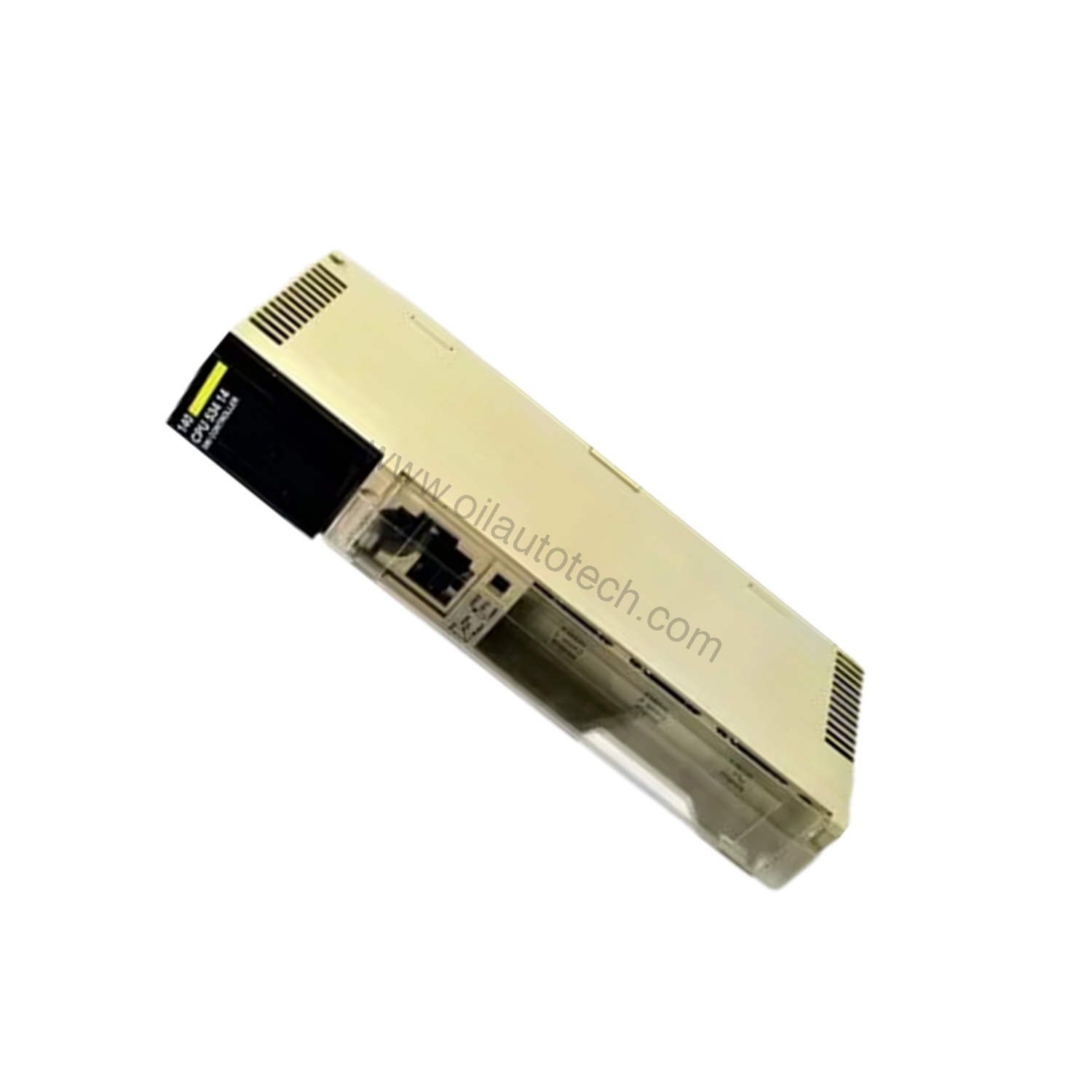

When a critical process line stalls, every minute of downtime cuts into production. The Schneider Electric 140CPU53414UC CPU Module delivers the processing power and communication flexibility that Modicon Quantum systems demand. Built around a Quantum Unity processor, this module manages two local racks and handles complex automation tasks with ease.
With 586 KB of RAM and 4 MB of program memory, the 140CPU53414UC gives engineers room to develop sophisticated control logic without constant memory constraints. Boolean execution times range from 0.1 to 0.27 microseconds, so scan cycles stay fast even as your application grows.
Technical Specifications That Matter
| Specification | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Processor Type | Quantum Unity |
| RAM | 586 KB |
| Program Memory | 4 MB |
| Communication Ports | Modbus RS232/Plus |
| Execution Time (Boolean) | 0.1–0.27 µs |
| Power Supply | 5 V DC |
| Number of Racks | 2 local racks |
| Communication Memory | 1 MB + CC |
| Protective Coating | Yes (CC) |
| LED Indicators | Status and Error LEDs |
| Operating Temperature | Industrial Range |
What These Specs Mean in Practice
The 5 V DC power supply aligns with standard Quantum backplane requirements, simplifying integration into existing racks. The 1 MB communication memory plus CC ensures data handling stays efficient across connected devices. Status and error LEDs provide immediate visual feedback, cutting diagnostic time when faults occur.
Where the 140CPU53414UC Performs Best
Oil and Gas Processing
In upstream and midstream operations, this CPU module handles the sequential control and data acquisition tasks that keep production flowing. The Modbus RS232/Plus ports connect easily to existing SCADA and HMI systems, while the protective coating adds durability in environments where dust and moisture are constant concerns.
Manufacturing Automation
Assembly lines and batch processing operations benefit from the fast Boolean execution time. When every millisecond of scan time affects throughput, the 0.1–0.27 µs execution speed keeps production rates predictable.
Water and Wastewater Treatment
Distributed control across multiple racks suits treatment facilities where pump stations and treatment stages sit far apart. Two local racks provide the I/O capacity needed without excessive hardware.
Integration and Compatibility
The 140CPU53414UC works within the Modicon Quantum platform, communicating through Modbus RS232/Plus ports. This makes it compatible with a wide range of industrial devices, from variable frequency drives to remote I/O modules.
Integration Note
Wiring into Modbus networks may require specific cables or connection accessories. Confirm cable and gateway requirements with your supplier before installation to avoid delays.
Why Buyers Choose This Module
Compared to older Quantum CPU options, the 140CPU53414UC offers a strong balance of memory, speed, and communication capability. Its 4 MB program memory supports larger applications than many legacy modules, while the Quantum Unity processor provides the reliability Schneider Electric is known for.
For operations running multiple racks, the two-local-rack support reduces the need for additional hardware. The protective coating adds a layer of environmental resilience that standard modules lack.
Oil AutoTech supplies ready-to-ship spares for oil, gas, and industrial automation applications. When you need a replacement CPU fast, our team provides hands-on technical selection help to match the right module to your system.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
Practical Maintenance Tips
- Inspect LED indicators regularly for status and error signals.
- Keep the module in an environment within the industrial operating temperature range.
- Check connections to Modbus ports periodically for secure seating.
- Follow the manufacturer’s safety manual for all maintenance activities.
Contact Oil AutoTech today for pricing and availability.
