Why Engineers Standardize on the BMXFTB2820

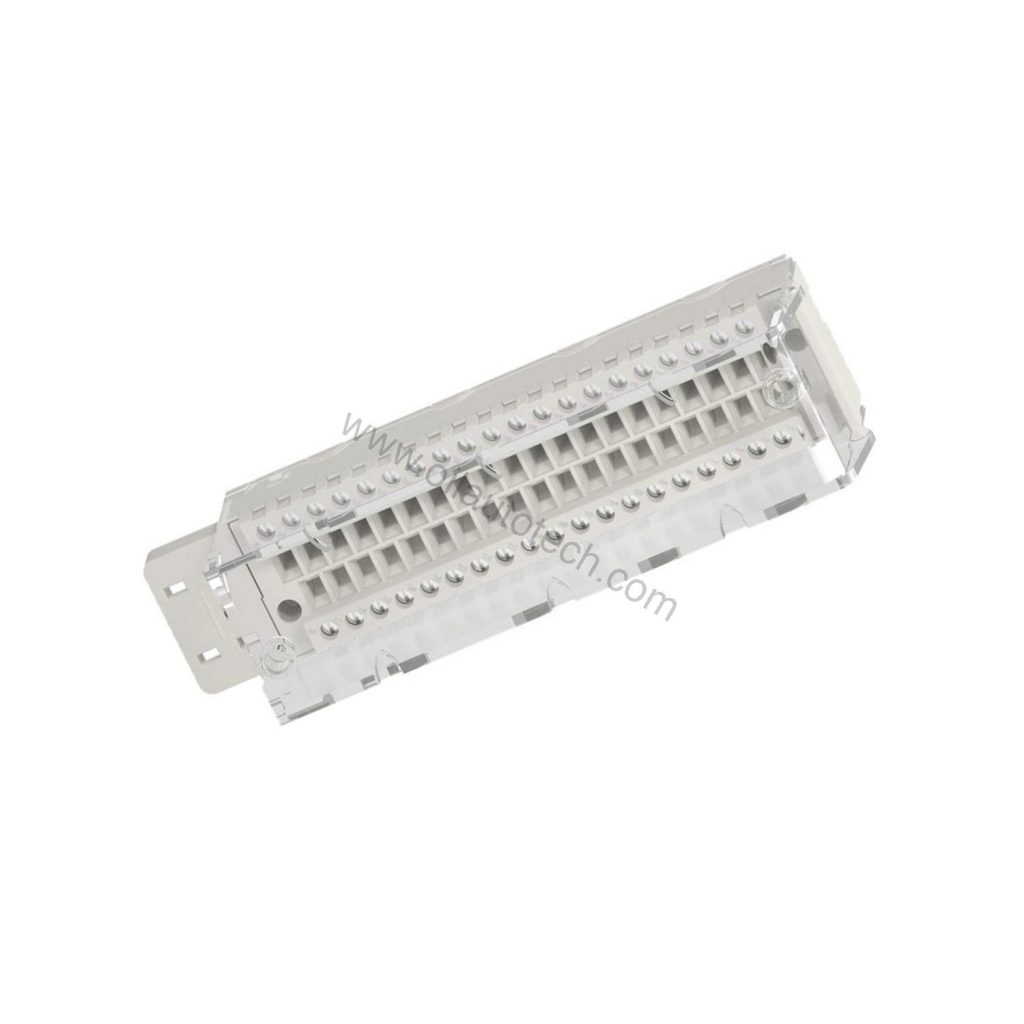

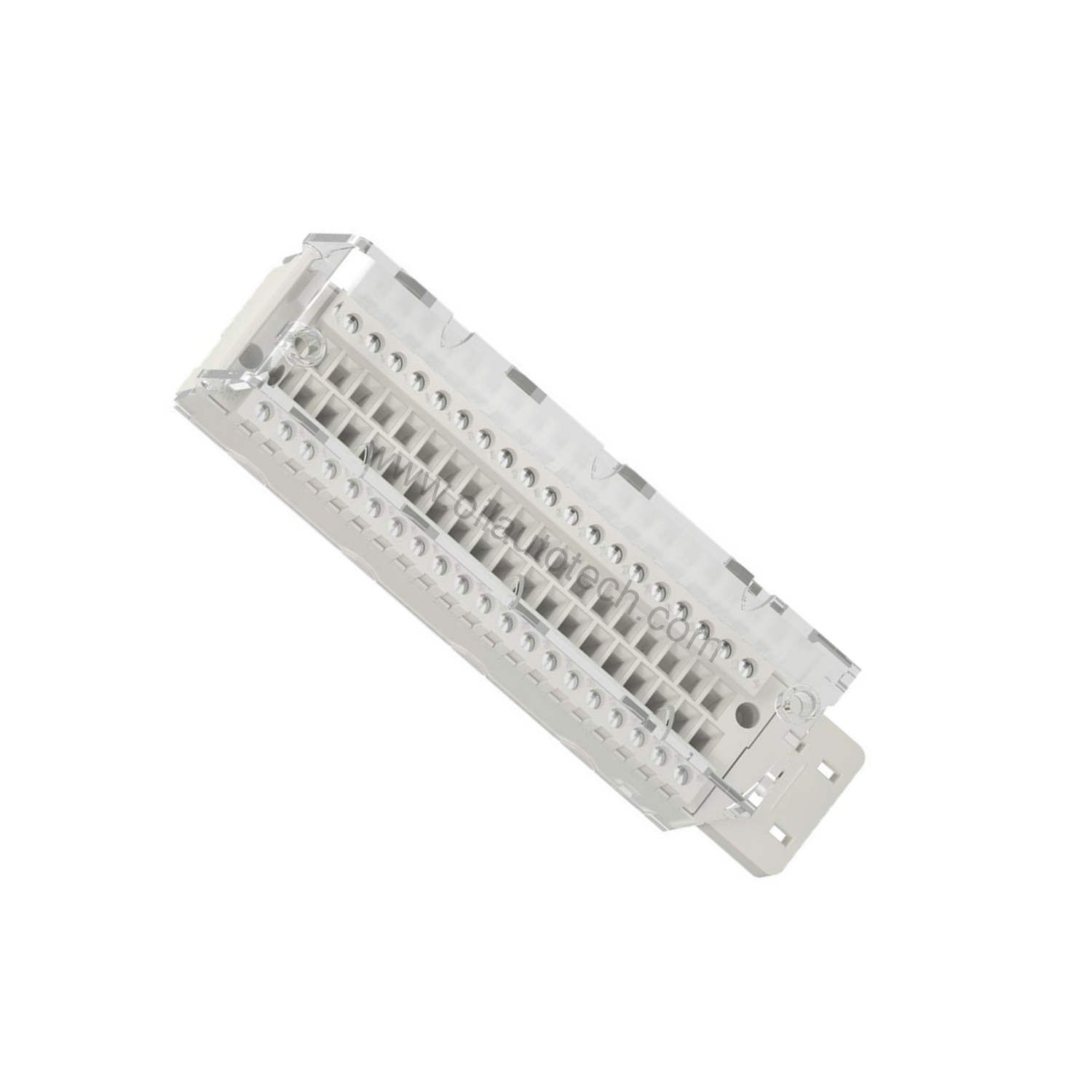

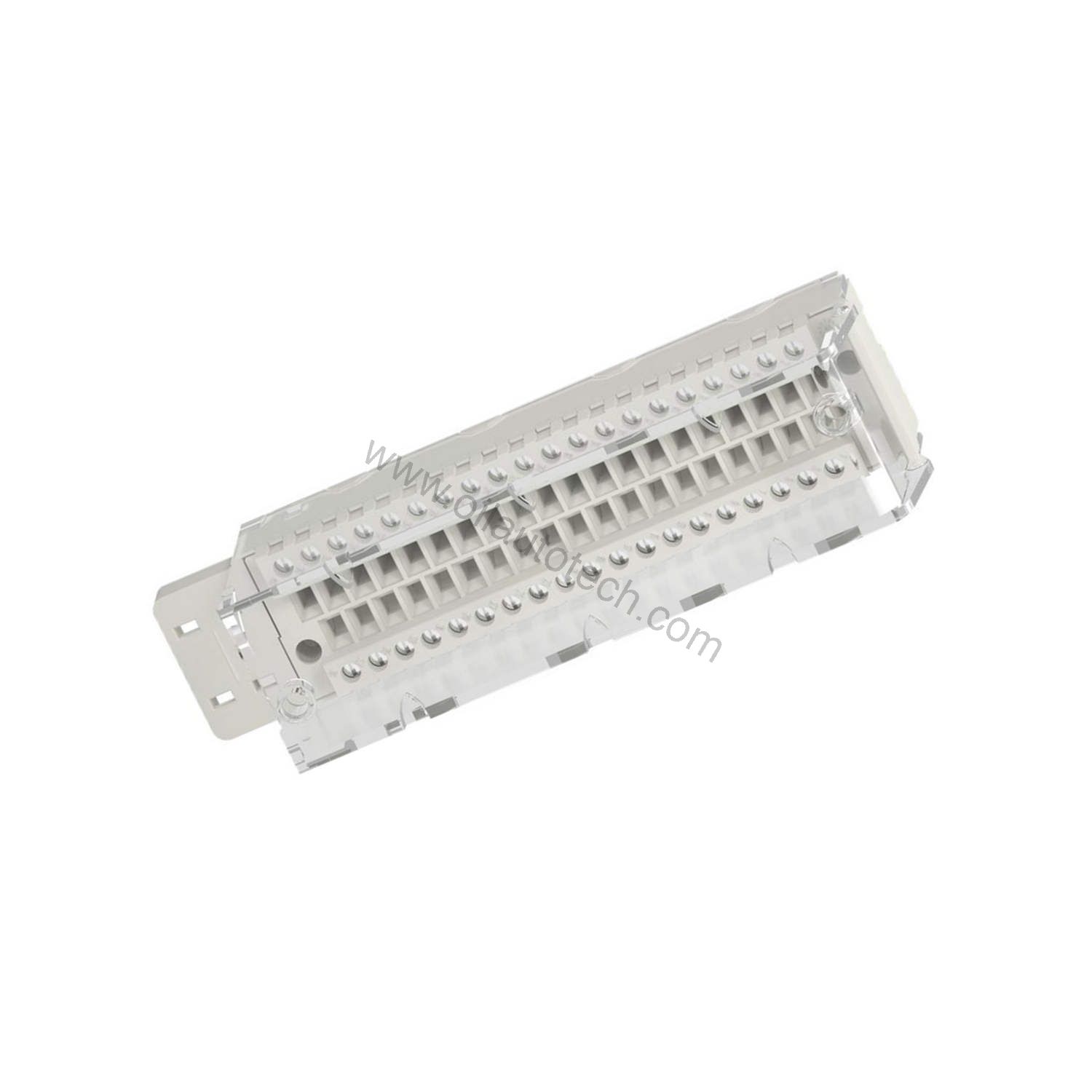

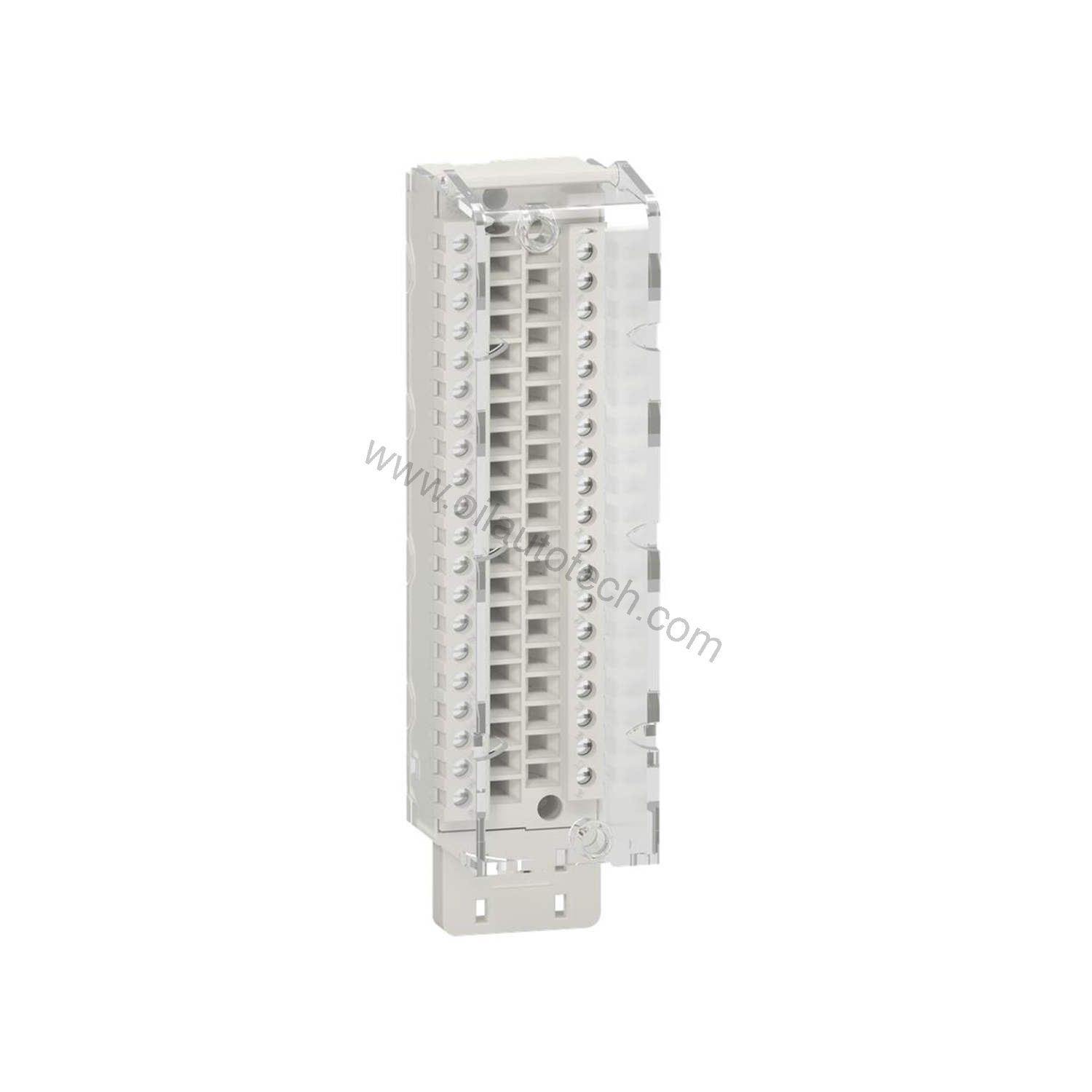

Field wiring failures rarely trace back to the I/O module itself. More often, a loose screw terminal or a corroded contact interrupts the signal path. The Schneider Electric BMXFTB2820 solves that problem at the connection point. This 28-pin spring terminal block belongs to the Modicon X80 series and serves as a feed-through accessory for X80 modules that use a 28-pin interface. It is not a motion control module, and it is not a controller. It is the removable wiring interface that sits between your field cables and the I/O card.
For plants running M340 or M580 platforms, this part keeps spare cabinets ready. The lifecycle status is active, last verified in September 2026, and the X80 I/O platform is shared across both controller families. That shared design means one spare terminal block covers multiple rack positions. If you maintain a mixed M340 and M580 footprint, this commonality reduces the number of line items you must stock.
What the Spring Connection Changes for Your Panel
Spring-type terminations remove the torque check from your preventive maintenance list. A screw terminal can loosen after thermal cycling; a spring clamp maintains contact force across the same cycles. For an engineer specifying a replacement or a new build, that difference shows up as fewer intermittent faults and less rework during commissioning.
The 28-pin count matches the connection interface of compatible X80 modules. Because the block is a feed-through type, the field side and the module side remain separated by the terminal body. This arrangement simplifies wire identification during troubleshooting. You can trace a channel without pulling the module from the rack.
Key Parameters at a Glance
| Parameter | Value |
|---|---|
| Model | BMXFTB2820 |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Type | Feed-through terminal block, 28-pin spring |
| Compatibility | X80 modules with 28-pin connection |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -25°C to +70°C |
| Relative humidity | 5% to 95%, non-condensing |
| Protection rating | IP20 |
| Lifecycle | Active |
The IP20 rating tells you where this part belongs. It suits a clean control cabinet, not an exposed field enclosure. Keep it inside a panel that limits dust and direct contact. The operating window of 0°C to +60°C covers most climate-controlled electrical rooms, but check your cabinet thermal design if the enclosure sits near a furnace or compressor skid.
Where This Terminal Block Earns Its Place
Oil and gas facilities often run Modicon M580 racks for process I/O and M340 racks for utility or packaging skids. A 28-pin spring terminal block supports both when the module interface matches. In a remote wellsite panel, a technician can swap a damaged block without rewiring the entire harness. The spring clamps accept the existing conductors, so the repair stays within the maintenance window.
Water treatment plants present a different case. Humidity there can reach the upper end of the 5% to 95% range. Because the BMXFTB2820 is rated for non-condensing conditions, the cabinet door heater or ventilation strategy still matters. Engineers who plan for condensation get longer service from every connection point.
Manufacturing lines that run M340 I/O for discrete sensors also benefit. A 28-pin block covers a dense channel group in one removable assembly. When a press or conveyor module needs service, the block comes off with the module, and the field wires stay landed.
Installation and Integration Notes
Mount the terminal block to the matching X80 module interface before landing field wires. Verify that the module uses a 28-pin connection; other X80 modules may use different pin counts or termination styles. Route field cables with a service loop so the block can be removed without straining conductors.
For M340 and M580 systems, the X80 platform shares this I/O accessory across both controller families. Confirm the rack and module combination in your panel drawings before ordering. If you integrate through a fieldbus network, remember that the terminal block itself carries only the module’s native signals. Network connection may require an external gateway or communication module. Confirm cable and gateway requirements with your supplier.
Maintenance That Protects Uptime
Inspect spring terminals during scheduled shutdowns. Look for discoloration, loose conductors, or debris in the clamp openings. Follow the manufacturer’s safety manual for any work on an energized panel, and isolate power before touching terminations. Because the spring mechanism has no user-serviceable internal parts, replacement is the practical repair path when a contact fails.
Stocking one or two spare blocks per rack type is a practical decision. A failed terminal block can stop a production line, and a ready-to-ship spare restores the connection without a long lead time. That is where Oil AutoTech helps: fast dispatch, worldwide, with hands-on technical selection support for oil, gas, and industrial automation spares.
Selection Checklist Before You Buy
Confirm four things: the module interface is 28-pin, the module belongs to the Modicon X80 series, the cabinet environment stays within 0°C to +60°C and 5% to 95% non-condensing humidity, and the panel provides IP20-level protection. If your application needs a different pin count or a screw-type termination, this part is not the correct fit.
