Introduction
Plant floors have changed. Where relay panels once clicked through every start and stop signal, modern oil, gas, and process lines now push dozens of discrete status points into a single controller rack. The BMXDDI1603 from Schneider Electric belongs to that shift. It is a Modicon X80 discrete input module with 16 channels, built to read 24 V DC field signals and hand them cleanly to the CPU.
What the BMXDDI1603 Does

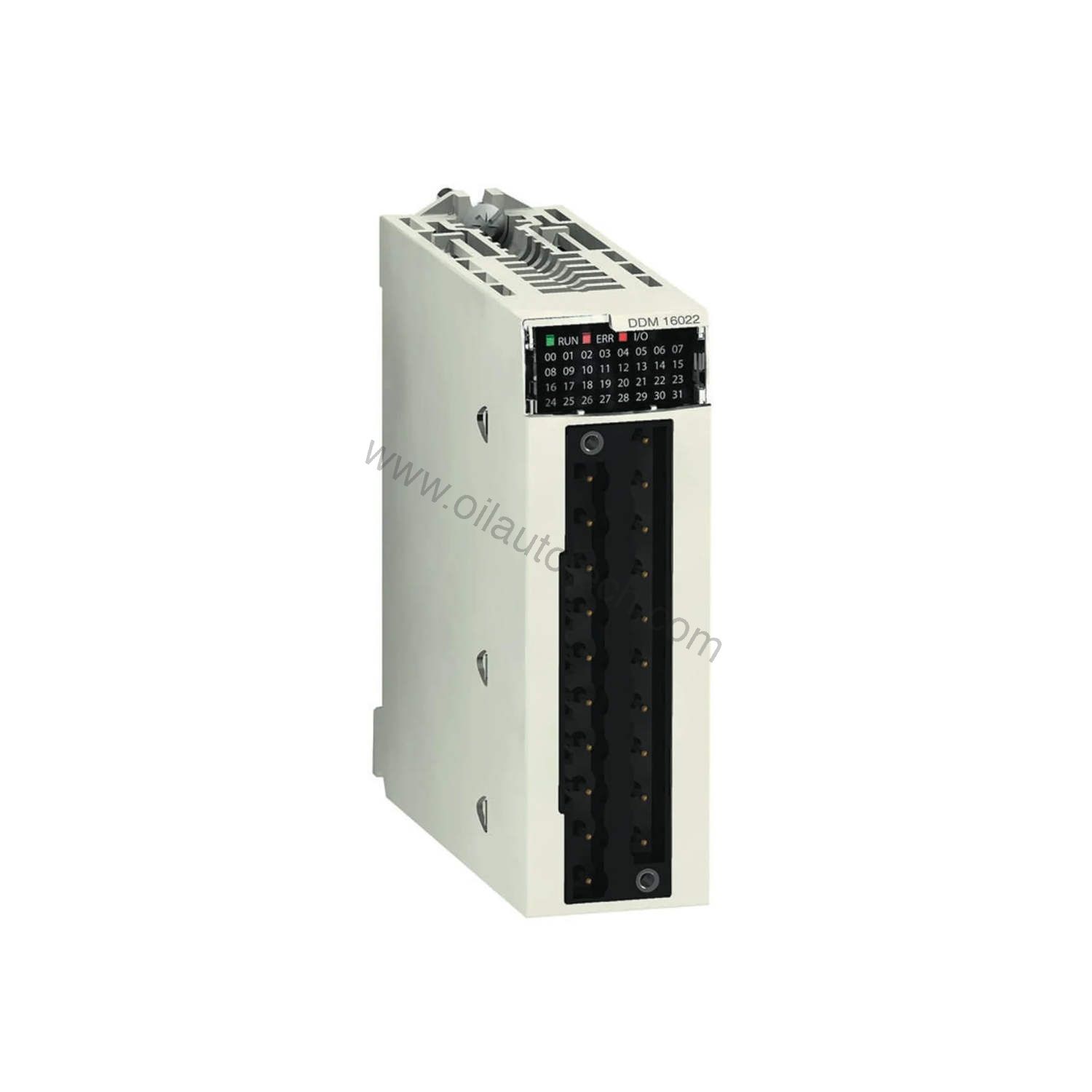

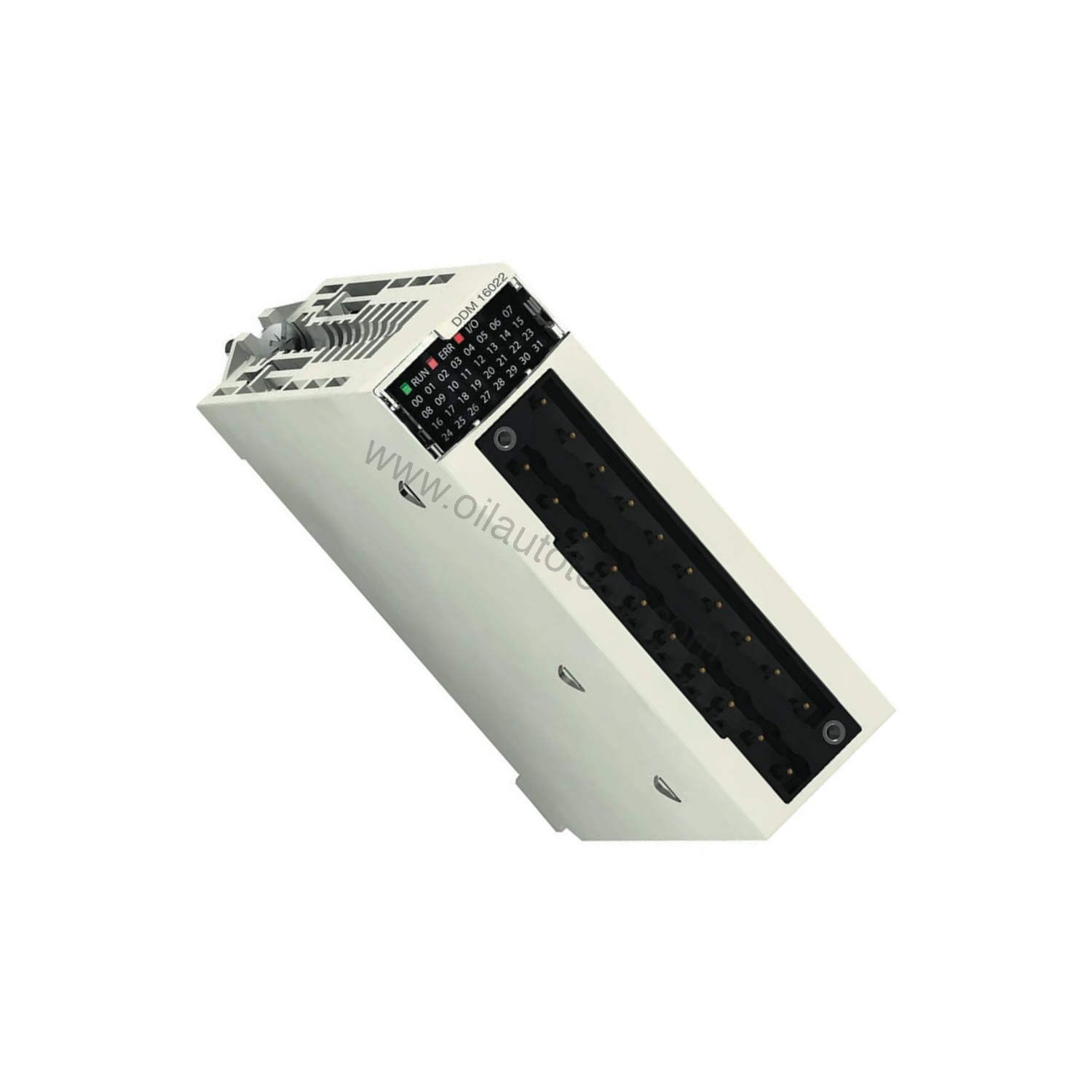

The BMXDDI1603 is a 16-channel discrete input module in the Modicon X80 series. Each channel accepts a 24 V DC signal using sink/source wiring with positive logic. Channel-to-channel isolation keeps one field fault from bleeding into neighbouring points, which matters when inputs come from different panels or voltage sources. A module status LED and per-channel status LEDs give technicians a direct view of live signals without opening a laptop.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 16 |
| Signal type | Discrete input (sink/source, positive logic) |
| Input range | 24 V DC |
| Isolation | Channel-to-channel |
| Diagnostics | Module status LED; per-channel status LED |
| Connection | 20-pin terminal block |
| Supply voltage | 24 V DC (via backplane / field) |
| Power consumption | 2.6 W |
| Bus current | 110 mA @ 24 V DC |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -25 °C to +70 °C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 100 × 28 × 93 mm |
| Weight | 0.15 kg |
Where It Fits on Site
Three duties suit this module well. First, pump and valve feedback on oil and gas skids, where 24 V DC limit switches report open, closed, or fault states. Second, alarm and trip contact monitoring in process cabinets, where per-channel LEDs speed up fault-finding during a shutdown. Third, packaging or conveyor lines that need a compact 16-point input block without adding a second rack slice.
The shared I/O platform is a practical advantage. The same module serves both M340 and M580 controllers, so a spare BMXDDI1603 covers either platform and keeps stock simple.
Installation and Integration

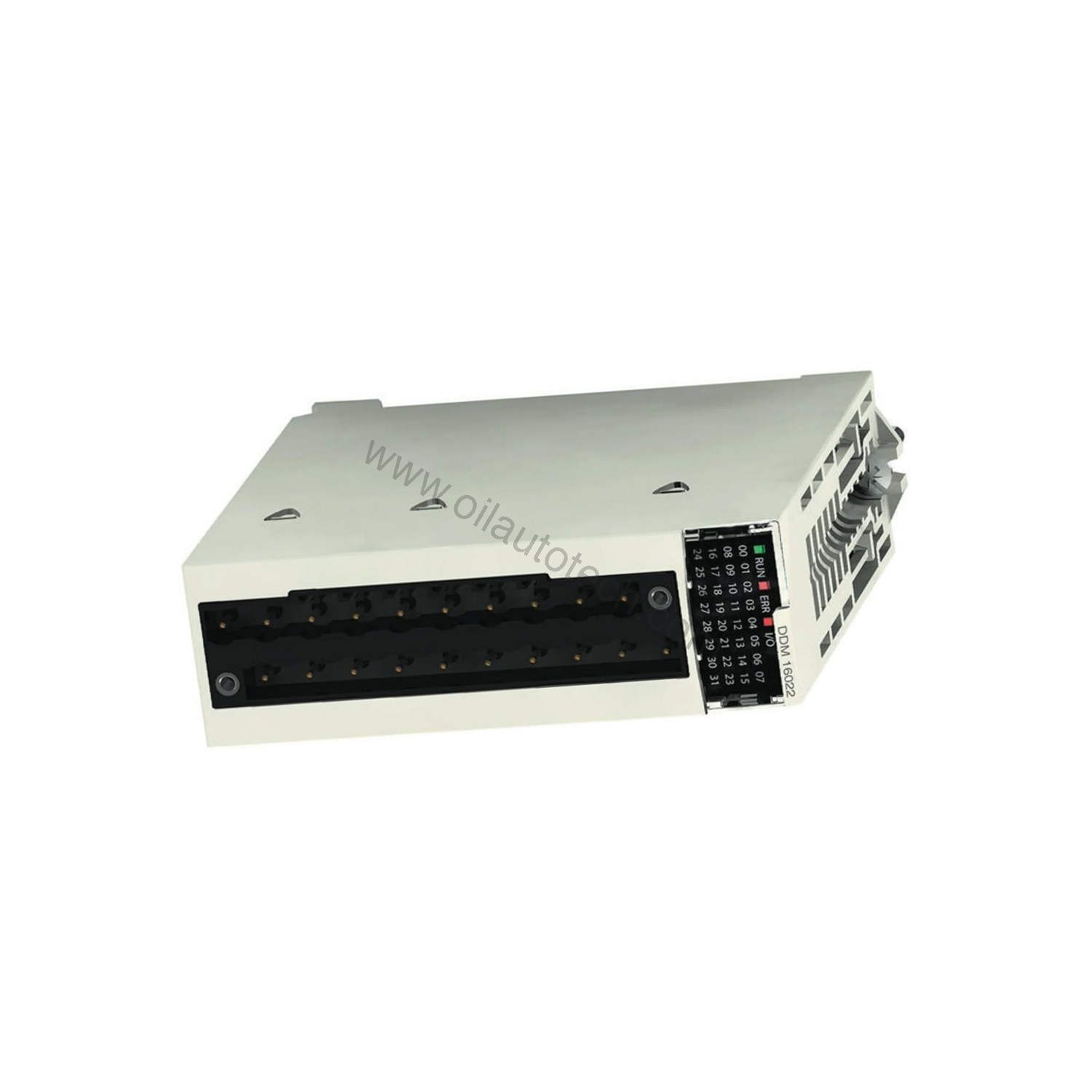

Mount the module in the X80 rack and wire field devices to the 20-pin terminal block. Confirm sink or source wiring matches your panel convention before power-up, since the module supports both. Keep the cabinet within the 0 °C to +60 °C operating range and respect the IP20 rating by installing it inside a protected enclosure.
For M340 or M580 systems, the module communicates over the backplane, so no separate fieldbus gateway is required. If you plan to bridge into PROFINET, EtherNet/IP, or another plant network, confirm the correct gateway and cabling with your supplier before ordering.
Maintenance and Availability
Inspect terminal connections and LED behaviour during scheduled shutdowns. Because the module carries channel-to-channel isolation, a single failed field device rarely disturbs the remaining points, which protects uptime and avoids unnecessary rack replacement.
The BMXDDI1603 is listed as active on a shared I/O platform for M340 and M580. Please verify current lifecycle status and availability with Oil AutoTech before ordering. Oil AutoTech supplies fast-dispatch spares for oil, gas, and industrial automation applications, with quick worldwide delivery and hands-on technical selection help. Contact Oil AutoTech today for pricing and availability.
