When a Slow Analog Loop Stalls Your Line

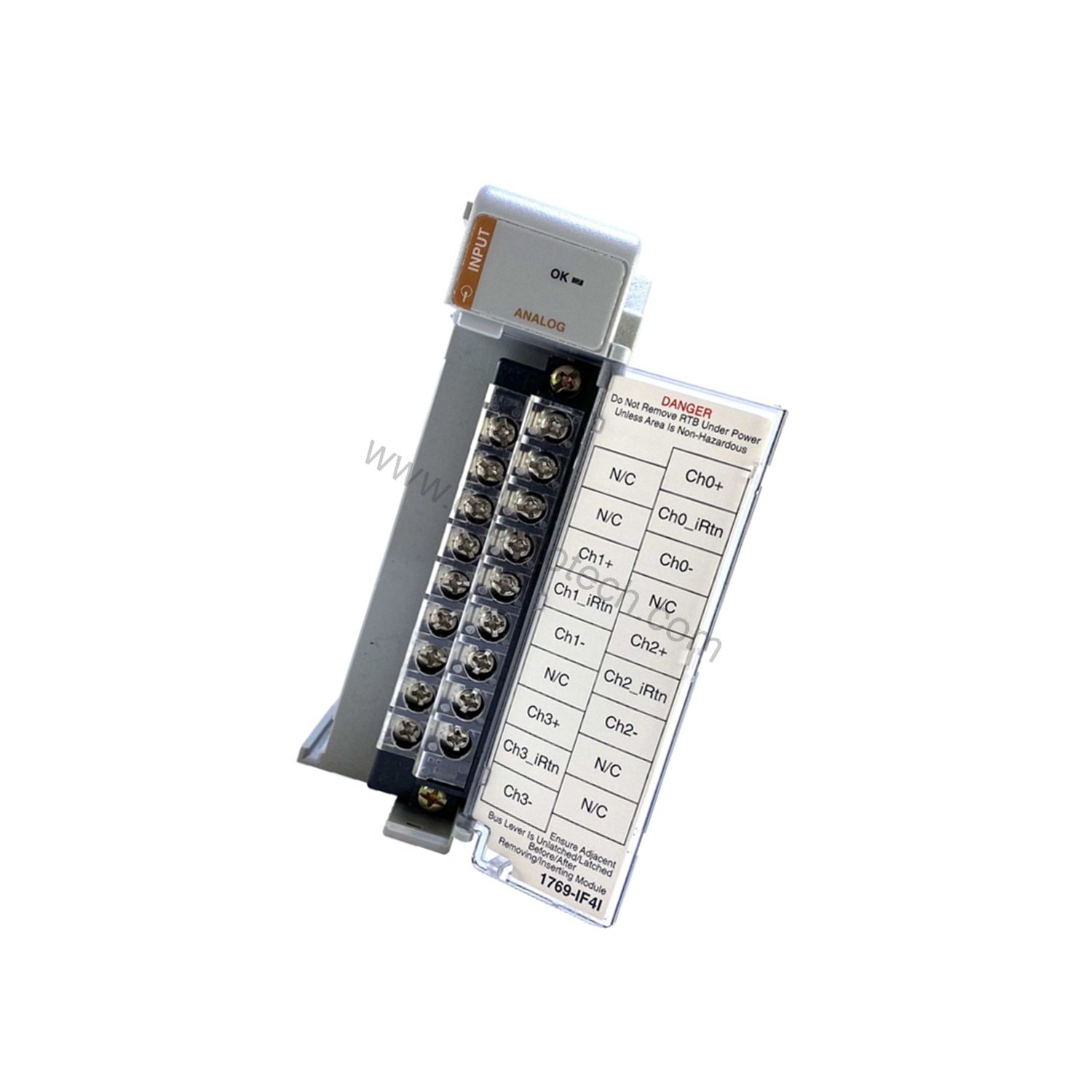

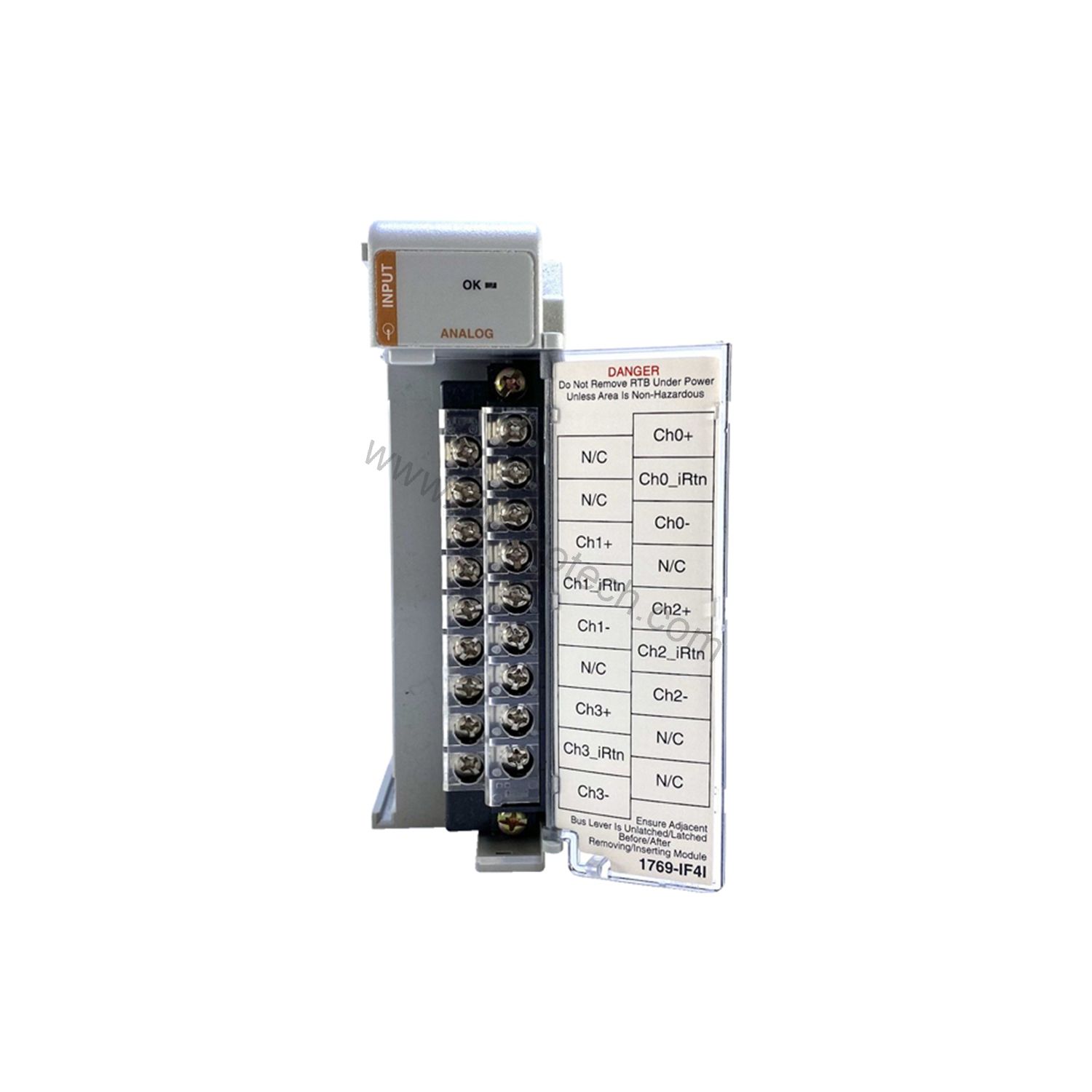

A system integrator recently faced a familiar problem: their CompactLogix-based motion feedback loop could not keep pace with a high-dynamic actuator. Standard analog I/O introduced conversion delays that caused oscillation and scrap. The fix was not a controller upgrade but a faster analog front end. The Allen-Bradley 1769-IF4FXOF2F, a high-speed analog combination module from the Bulletin 1769 Compact I/O family, solved the problem with Delta Sigma conversion and four fast inputs paired with two fast outputs.
This module is an active, mature product in the CompactLogix line. It is not discontinued, and an engineering replacement is available if needed. For teams running legacy or current 1769 systems, it remains a practical, ready-to-ship option. Oil AutoTech keeps this module in stock for fast dispatch to oil, gas, and industrial automation sites worldwide.
Technical Specifications That Matter
The 1769-IF4FXOF2F delivers 4 fast analog inputs and 2 fast analog outputs. It accepts voltage signals of ±10V, 0-10V, 0-5V, and 1-5V, plus current signals of 0-20mA and 4-20mA. This flexibility lets one module handle mixed sensor and actuator types without external signal conditioners.
Resolution is 14-bit for inputs and 13-bit for outputs. That level of precision supports fine control in rapid PID loops and motion feedback applications. The Delta Sigma converter architecture provides stable, low-noise conversion, which is critical when signals change quickly.
Backplane power draw is 220mA at 5V and 120mA at 24V. The module provides 500V AC isolation, protecting the controller from field-side transients. Operating temperature range is 0 to 60 C, matching the CompactLogix family standard.
| Specification | Value |
|---|---|
| Part Number | 1769-IF4FXOF2F |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | CompactLogix / Bulletin 1769 |
| Product Type | Analog Combination I/O Module (High-Speed) |
| Inputs | 4 fast analog inputs |
| Outputs | 2 fast analog outputs |
| Signal Ranges | ±10V / 0-10V / 0-5V / 1-5V / 0-20mA / 4-20mA |
| Input Resolution | 14-bit |
| Output Resolution | 13-bit |
| Converter Type | Delta Sigma |
| Backplane Current | 220mA @ 5V / 120mA @ 24V |
| Isolation | 500V AC |
| Operating Temperature | 0 to 60 C |
| Lifecycle Status | Active Mature |
Where This Module Earns Its Keep
In oil and gas, the 1769-IF4FXOF2F shines in fast closed-loop control. Consider a compressor surge control system: pressure transmitters feed 4-20mA signals into the fast inputs, while the outputs drive proportional valves. The high-speed conversion keeps the loop tight, preventing surge events that damage equipment and halt production.
In motion feedback, the module captures encoder or resolver signals converted to analog voltages. The 14-bit input resolution and Delta Sigma architecture reduce jitter, improving positioning accuracy on high-dynamic axes. This matters in packaging, web handling, and robotics.
For rapid PID loops in temperature or flow control, the 2 fast outputs update quickly enough to maintain setpoint without overshoot. The 500V AC isolation protects the CompactLogix controller from ground loops and voltage spikes common in industrial environments.
Installation and Setup
The 1769-IF4FXOF2F mounts on a panel with two screws or on a DIN rail. It locks together with other 1769 modules using tongue-and-groove connectors and shares the integrated bus through a movable bus connector. Install it to the right of the controller on the expansion bus. The controller distributes 5V and 24V DC to the module.
A 1769 power supply module powers the bus. You can place up to eight I/O modules on each side of the supply. Keep the module within the 0 to 60 C operating range and ensure adequate clearance for airflow. Wire field signals according to the module’s terminal assignments, using shielded twisted-pair cable for analog signals to minimize noise. Verify that your signal type matches the configured range before power-up.
Compatibility and Integration
The 1769-IF4FXOF2F integrates directly with CompactLogix controllers and the Bulletin 1769 Compact I/O system. It communicates over the backplane bus, so no external network configuration is required for basic operation. The controller handles data exchange automatically.
For systems using 1768 controllers, the module can be used with appropriate 1768 backplane modules. If your application requires EtherNet/IP, ControlNet, or DeviceNet connectivity, those networks are supported through separate 1768 add-on modules such as the 1768-ENBT, 1768-CNB, or DeviceNet modules. The 1769-IF4FXOF2F itself does not include network ports; it relies on the controller for communication.
When integrating into a fieldbus network, confirm cable and gateway requirements with your supplier. Oil AutoTech provides hands-on technical selection help to ensure the module fits your existing architecture.
Maintenance and Reliability
The 1769-IF4FXOF2F has no moving parts, so wear is minimal. Inspect the module periodically for loose connections, dust accumulation, and signs of overheating. Keep the panel enclosure clean and within the specified temperature range. Check terminal screws for tightness during scheduled maintenance.
Because the module is active and mature, spare units are readily available. Oil AutoTech offers fast-dispatch spares for oil, gas, and industrial automation applications. Keeping a spare on the shelf reduces downtime risk and supports a strong ROI on your CompactLogix investment.
Selection Guide
Before ordering, verify your signal types and ranges match the module’s capabilities: ±10V, 0-10V, 0-5V, 1-5V, 0-20mA, or 4-20mA. Confirm you need 4 inputs and 2 outputs. Check that your CompactLogix controller supports 1769 I/O and that your power supply can handle the additional 220mA at 5V and 120mA at 24V load.
If you need more channels or different signal types, other 1769 analog modules are available. For high-speed applications, the 1769-IF4FXOF2F is the right choice. Contact Oil AutoTech today for pricing and availability. Our team provides practical guidance to match the module to your application.
Frequently Asked Questions
Q: What makes the 1769-IF4FXOF2F “high-speed” compared to standard analog modules?
A: It uses Delta Sigma conversion and fast input/output circuitry designed for high-dynamic applications like motion feedback and rapid PID loops. Standard modules often have slower update rates.
Q: Can I use this module with a 1768 controller?
A: Yes, with the appropriate 1768 backplane and power supply. The 1768 system supports 1769 I/O through its left-side backplane.
Q: What is the resolution of the inputs and outputs?
A: Inputs are 14-bit; outputs are 13-bit. This provides fine control for precise analog signals.
Q: Does this module provide isolation?
A: Yes, it offers 500V AC isolation between field wiring and the backplane, protecting your controller from transients.
Q: Is the 1769-IF4FXOF2F still available?
A: Yes, it is an active mature product. An engineering replacement is available. Contact Oil AutoTech for current stock and pricing.
