Is Your Control Cabinet Ready for a Compact, Networked PLC?
Downtime in oil, gas, or industrial automation often starts with a controller that cannot talk to the rest of the plant. The Allen-Bradley 1763-L16BBB solves that problem. It is a MicroLogix 1100 programmable controller built for micro and small automation tasks. This unit combines discrete and analog I/O with built-in Ethernet and serial communication, so you can monitor and control processes without adding extra modules.
What Is the 1763-L16BBB?

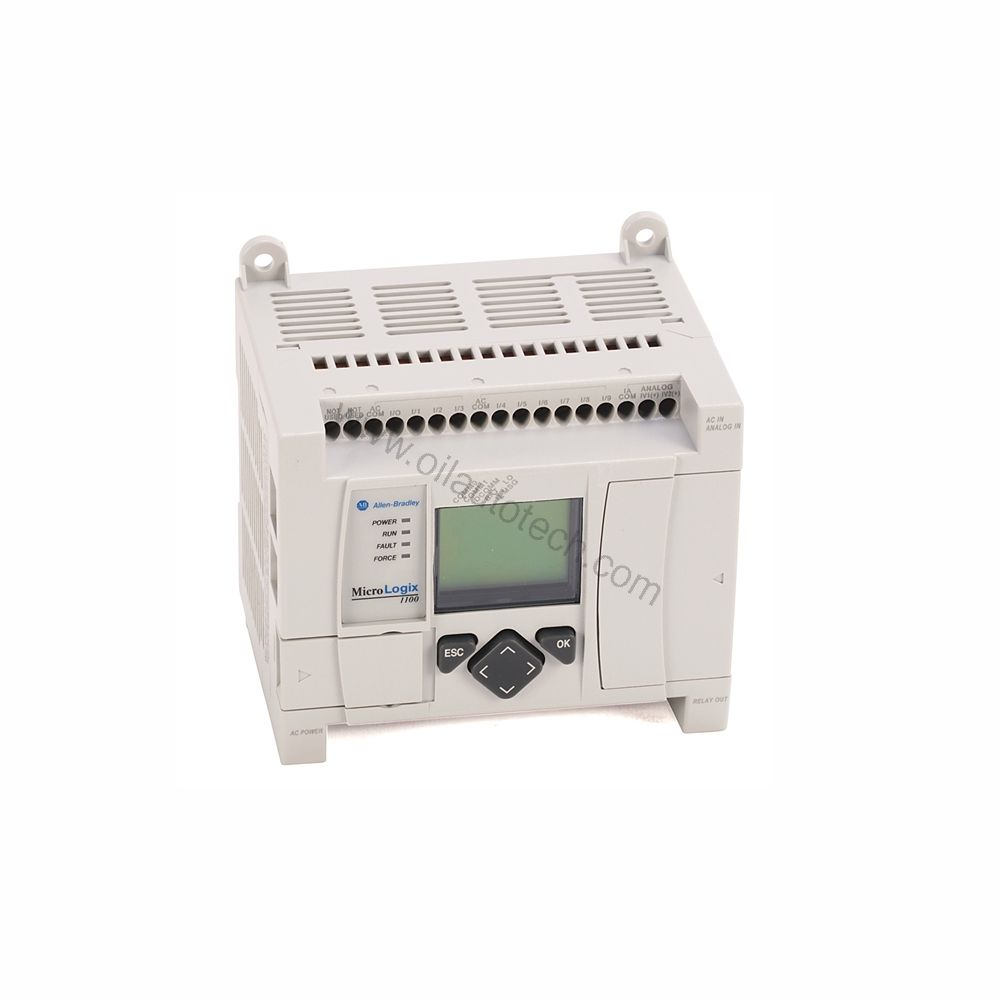

The 1763-L16BBB is a programmable logic controller from Allen-Bradley. It belongs to the MicroLogix 1100 series and carries 16 points. The controller runs on an external 24VDC supply and includes ten 24VDC discrete inputs, two 0-10VDC analog inputs, two relay outputs, and four FET outputs. An LCD display lets you check data directly on the unit. The built-in RS-232/485 combo port and Ethernet interface support peer-to-peer and networked communication.
Key Parameters That Matter on the Floor
| Specification | Value |
|---|---|
| Analog Voltage Range | 0-10VDC |
| FET Output Voltage Range | 24VDC |
| Memory | 1763-MM1 |
| Protocol | DF1 / MODBUS / Ethernet I/P |
| Relay Output Operating Voltage | 125V DC / 120/240 VAC |
These specs translate into practical benefits. The 0-10VDC analog inputs handle common sensor signals without external signal conditioners. The 24VDC FET outputs switch loads quickly for high-cycle tasks. The relay outputs manage higher AC or DC voltages for pumps, valves, or alarms. Because the 1763-L16BBB speaks DF1, MODBUS, and Ethernet I/P, it fits into existing control networks with less wiring and fewer gateways.
Where the 1763-L16BBB Fits
Oil and gas wellhead panels often need a compact controller that can handle discrete inputs from pressure switches and analog inputs from transmitters. The 1763-L16BBB does both. Its Ethernet port supports 10/100 Mbps communication, so data reaches SCADA systems without extra hardware. In a packaging line, the four FET outputs drive high-speed solenoids while the relay outputs control motors and indicators. For water treatment skids, the analog inputs monitor tank levels and chemical feed rates. The controller works in these roles because it balances I/O count, communication, and a small footprint.
Integration and Communication Notes
The 1763-L16BBB includes one RS-232/485 combo port and one Ethernet port. The serial port handles peer-to-peer links, while Ethernet supports multi-node networking. When wiring into a plant network that uses PROFINET or other fieldbuses, you may need an external gateway or connection module. Confirm cables and gateways with your supplier before installation. The controller also supports DF1, MODBUS, and Ethernet I/P protocols, which cover many legacy and modern systems.
Practical Tips for Installation and Maintenance
Mount the controller in a panel that meets the operating temperature range of -4 to 149 degrees Fahrenheit. Keep the 24VDC supply within the specified tolerance to avoid erratic behavior. For the analog inputs, use shielded cable to reduce noise on 0-10VDC signals. Periodically inspect terminal connections and clean the LCD screen with a soft dry cloth. If the unit is in a hazardous location, follow the manufacturer’s safety manual for Class 1, Division 2 installations. These steps protect your investment and keep the line running.
Why Buy the 1763-L16BBB from Oil AutoTech?
Oil AutoTech supplies ready-to-ship spares for oil, gas, and industrial automation. We offer fast dispatch, worldwide, and hands-on technical selection help. Whether you need one controller or a full panel build, our team helps you confirm compatibility and get the right part. Contact Oil AutoTech today for pricing and availability.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
