Product Overview

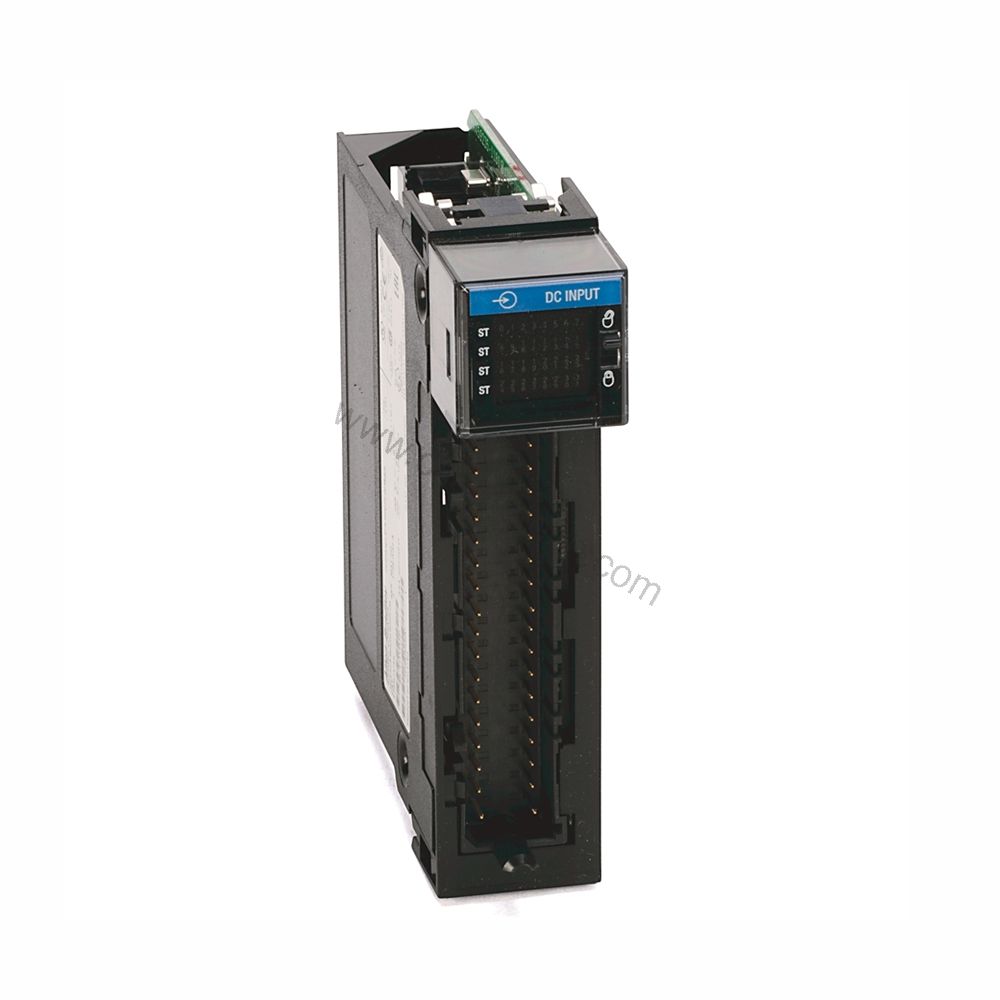

When a ControlLogix line goes down, every hour of downtime costs money. The Allen-Bradley 1756-IV32/A is a 32-point digital DC input module built for the Bulletin 1756 platform, and it remains an active product with no replacement listed. That matters for engineers who need to keep existing panels running without redesigning the I/O layout.
This module gives you 32 sourcing inputs arranged in two groups of 16. Each group connects to DC field devices, so you can bring in a dense block of discrete signals from one slot in the chassis. The 1756-IV32/A is a practical choice when panel space is tight and input count is high.
Technical Specifications
The table below lists the key parameters for this exact model. Every value comes from the manufacturer’s per-model data.
| Parameter | Value |
|---|---|
| Inputs | 32 sourcing inputs (2 groups x 16) |
| Input voltage | 10-30V DC |
| Current draw | 120mA @ 5.1V, 2mA @ 24V |
| Isolation | 250V |
| Power dissipation | 4.1W |
| Operating temperature | 0 to 60 C (32 to 140 F) |
What the Numbers Mean in Practice
The 10-30V DC input range covers common 12V and 24V field devices without external conditioning. The 250V isolation between channels and the backplane protects the controller from field-side transients. At 4.1W dissipation, the module adds modest heat load inside the enclosure, which helps when you are balancing thermal budgets in a full chassis.
The two groups of 16 let you split field wiring logically. You can group inputs by machine section or by voltage domain, which simplifies troubleshooting later.
Integration with the ControlLogix Platform
The 1756-IV32/A mounts in any slot of a 1756 ControlLogix chassis. The chassis backplane, or ControlBus, carries data between modules at high speed, so input updates reach the controller without extra wiring between cards. Configuration happens in Studio 5000 Logix Designer, the same environment your team already uses for the rest of the project.
If your architecture uses EtherNet/IP, ControlNet, DeviceNet, or DH+/Remote I/O, the chassis-based communication module handles the network side. The input module itself simply reports field states to the controller. For network integration, confirm gateway and cabling requirements with your supplier before commissioning.
Where This Module Fits
Oil and gas operations often run ControlLogix racks in pump stations, compressor control panels, and pipeline monitoring cabinets. A 32-point input card is useful when you need to read many discrete status signals: valve position feedback, pressure switch states, motor run contacts, and alarm contacts. The 10-30V DC range suits 24V DC field loops common in these environments.
In factory automation, the same density helps on packaging lines and material handling systems where dozens of photo-eyes, limit switches, and proximity sensors report back to one controller.
Selection and Sourcing Advice
Before ordering, verify your chassis has a 1756 power supply module with enough capacity for the total load. Confirm your field devices are sourcing-type outputs that match the module’s input configuration. If you are replacing an existing card, check the series suffix: this is the /A version.
Because the 1756-IV32/A is active, you can still source it new. Oil AutoTech keeps fast-dispatch spares for oil, gas, and industrial automation applications, with quick worldwide delivery. If you need hands-on help matching this module to your existing rack, the team can confirm compatibility before you buy.
Maintenance and Reliability
The module has no moving parts, so wear points are minimal. Focus on the environment: keep the enclosure within the 0 to 60 C operating range and free of conductive dust. Inspect terminal connections periodically for tightness and check for heat discoloration on wiring. Follow the manufacturer’s safety manual for all service work.
Please verify current lifecycle status and availability with Oil AutoTech before ordering.
Contact Oil AutoTech today for pricing and availability.
