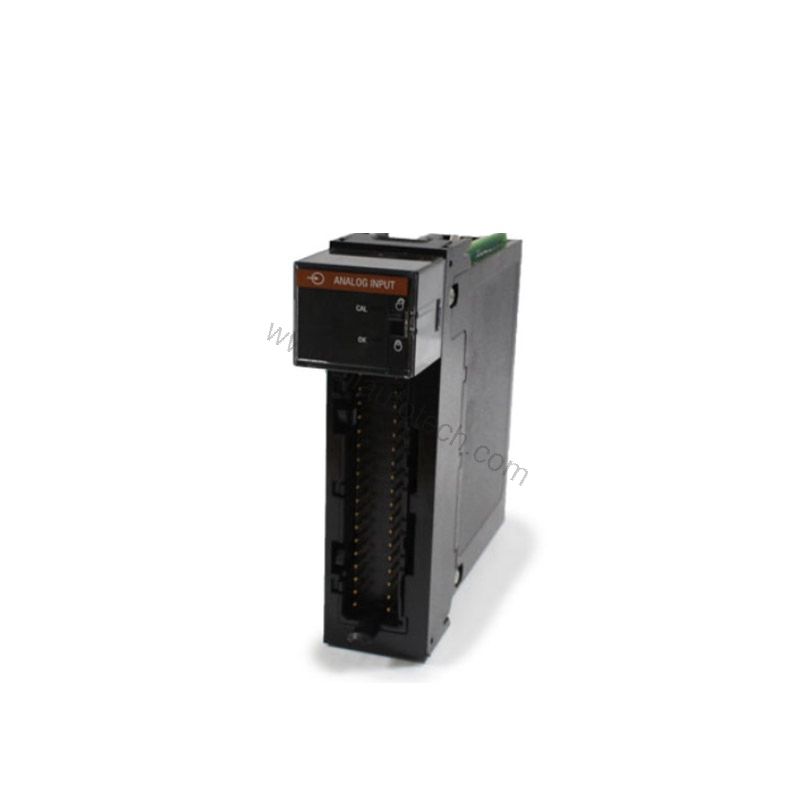

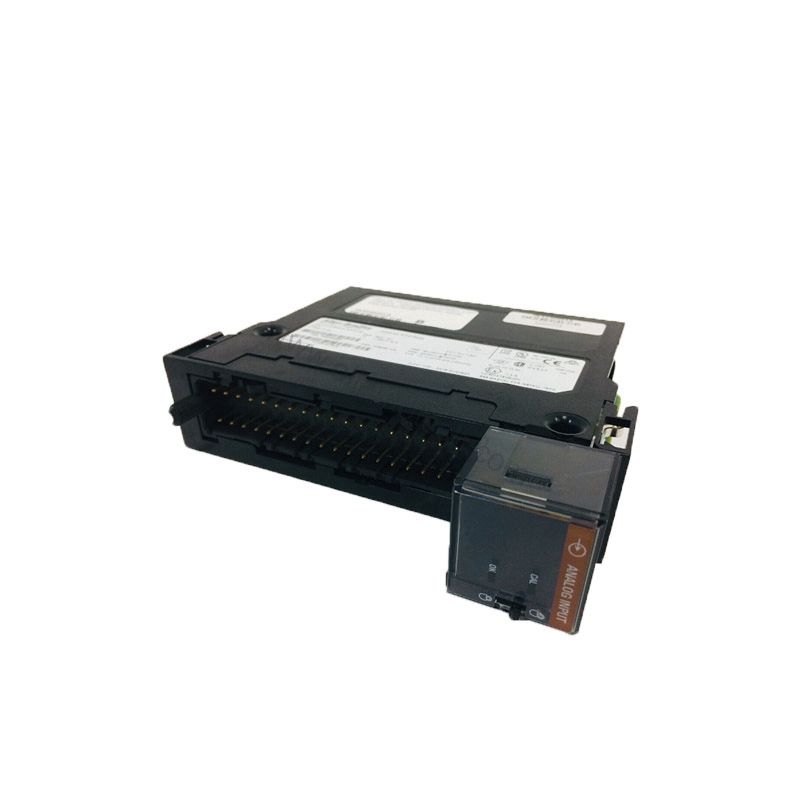

Why Engineers Choose the 1756-IF16 for ControlLogix Analog Input
When a ControlLogix chassis needs dense, accurate analog signal acquisition, the Allen-Bradley 1756-IF16 is the module most integrators specify. This 16-channel analog input module accepts 16 single-ended or 8 differential inputs, with 4 of those differential channels configured for high-speed operation. It handles +/-10V, 0-10V, 0-5V, and 4-20 mA signals, converting them at 16-bit resolution using Sigma-Delta conversion. For oil, gas, and process plants running continuous measurement, that combination of channel density and resolution means fewer modules per chassis and cleaner cabinet layouts.
Key Specifications That Drive Real Performance
Channel Density and Input Configuration
The 1756-IF16 gives you 16 single-ended or 8 differential inputs in one slot. Differential wiring rejects common-mode noise on long cable runs from transmitters and RTDs, while single-ended mode maximizes channel count where signal runs are short. Four high-speed differential channels suit faster process loops.
Signal Ranges and Resolution
Supported ranges are +/-10V, 0-10V, 0-5V, and 4-20 mA. The 16-bit resolution and Sigma-Delta conversion deliver stable readings for pressure, flow, level, and temperature transmitters. Matching the range to your transmitter output reduces scaling error and improves loop accuracy.
Power Draw and Isolation
The module draws 150 mA at 5.1 V DC and 65 mA at 24 V DC from the backplane. Input-to-backplane isolation is rated 250V, protecting the ControlBus from field transients. Operating temperature spans 0 to 60 C (32 to 140 F).
Where the 1756-IF16 Fits in Oil, Gas, and Industrial Plants
Upstream and Midstream Measurement
In wellhead and pipeline skids, the 1756-IF16 collects 4-20 mA signals from pressure and flow transmitters. Differential inputs handle long runs from remote manifolds, and 250V isolation shields the backplane from surges.
Process and Utilities Monitoring
Refineries and chemical plants use the module for temperature, level, and analyzer loops. Sixteen channels per slot reduce module count, which lowers spares inventory and cabinet space.
Legacy System Upgrades
Plants replacing older analog I/O often standardize on the 1756-IF16 because it is an active Series B product. Series A was discontinued in 2021, so new builds and replacements should specify the current revision.
Installation and Setup Guidance
Mount the module in any slot of a 1756 ControlLogix chassis; the backplane provides power and communication. Wire field signals to the removable terminal blocks, keeping differential pairs twisted and shielded. Configure the module in Studio 5000 Logix Designer, selecting the input mode, range, and filter settings for each channel. Verify the chassis power supply has enough margin for the module’s 150 mA at 5.1 V DC and 65 mA at 24 V DC load.
Compatibility and Integration
The 1756-IF16 operates in any 1756 ControlLogix chassis alongside communication modules supporting EtherNet/IP, ControlNet, DeviceNet, and DH+/Remote I/O. It is programmed in Studio 5000 Logix Designer (formerly RSLogix 5000).
Integration Note
When wiring into fieldbus networks such as EtherNet/IP, ControlNet, or DeviceNet, you may need an external gateway or connection module. Confirm cables and gateways with your supplier before ordering.
Maintenance and Reliability
Inspect terminal connections and cabinet filters on a scheduled basis. Keep ambient temperature within the 0 to 60 C range and avoid condensation. Because the module has no moving parts, failures usually trace to field wiring, power supply loading, or transients. Spare modules on the shelf reduce downtime when a channel fails.
Selection Checklist Before You Buy
Confirm your signal types and ranges, channel count, and whether you need single-ended or differential wiring. Verify the chassis has a compatible power supply and that your Studio 5000 version supports the module. For fast dispatch, worldwide, contact Oil AutoTech today for pricing and availability.
Frequently Asked Questions
What input ranges does the 1756-IF16 support?
It supports +/-10V, 0-10V, 0-5V, and 4-20 mA signals with 16-bit resolution.
How many channels does the module provide?
It offers 16 single-ended or 8 differential inputs, including 4 high-speed differential channels.
Is the 1756-IF16 still an active product?
The module is active. Series A was discontinued in 2021; the current Series B remains in production.
What are the power requirements?
The module draws 150 mA at 5.1 V DC and 65 mA at 24 V DC from the chassis backplane.
What isolation does it provide?
It provides 250V isolation between inputs and the backplane.
