What the 170XCP10000 Cable Coding Kit Does for Your Momentum System

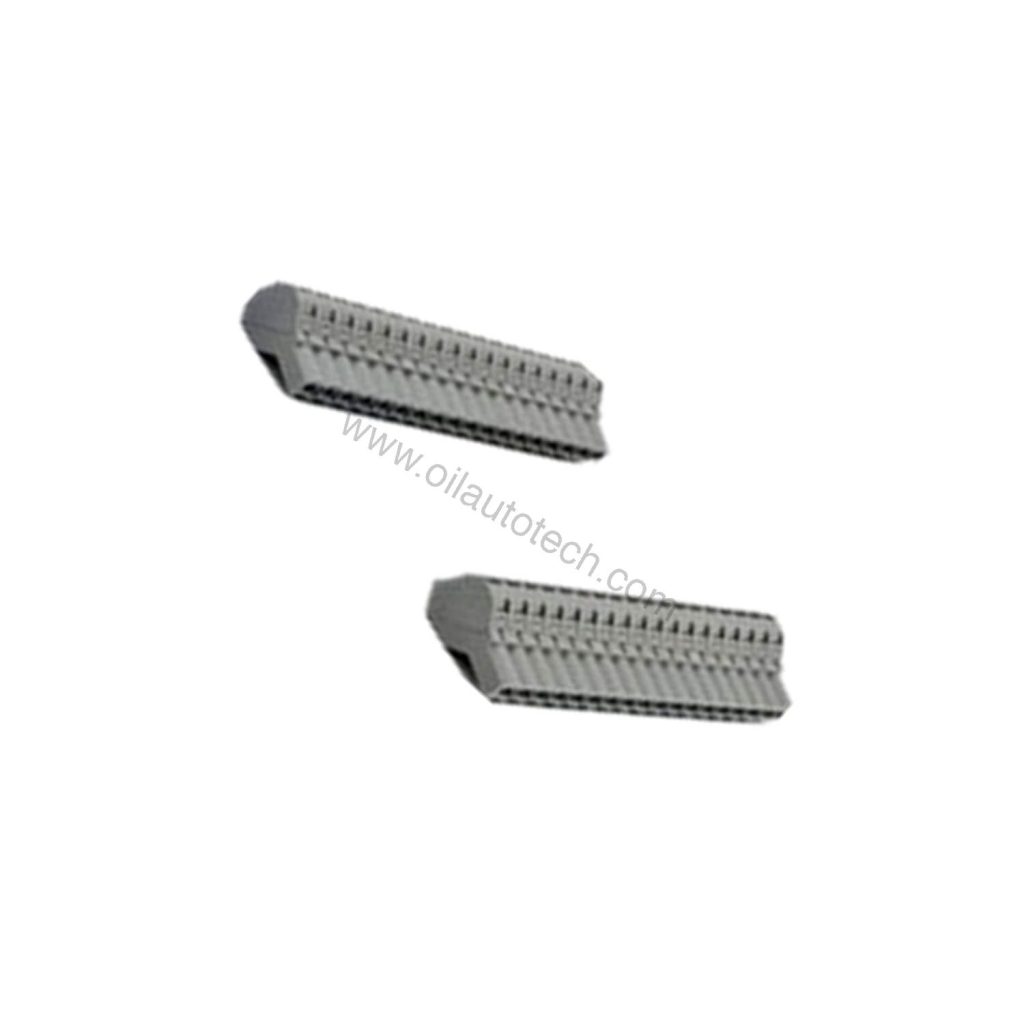

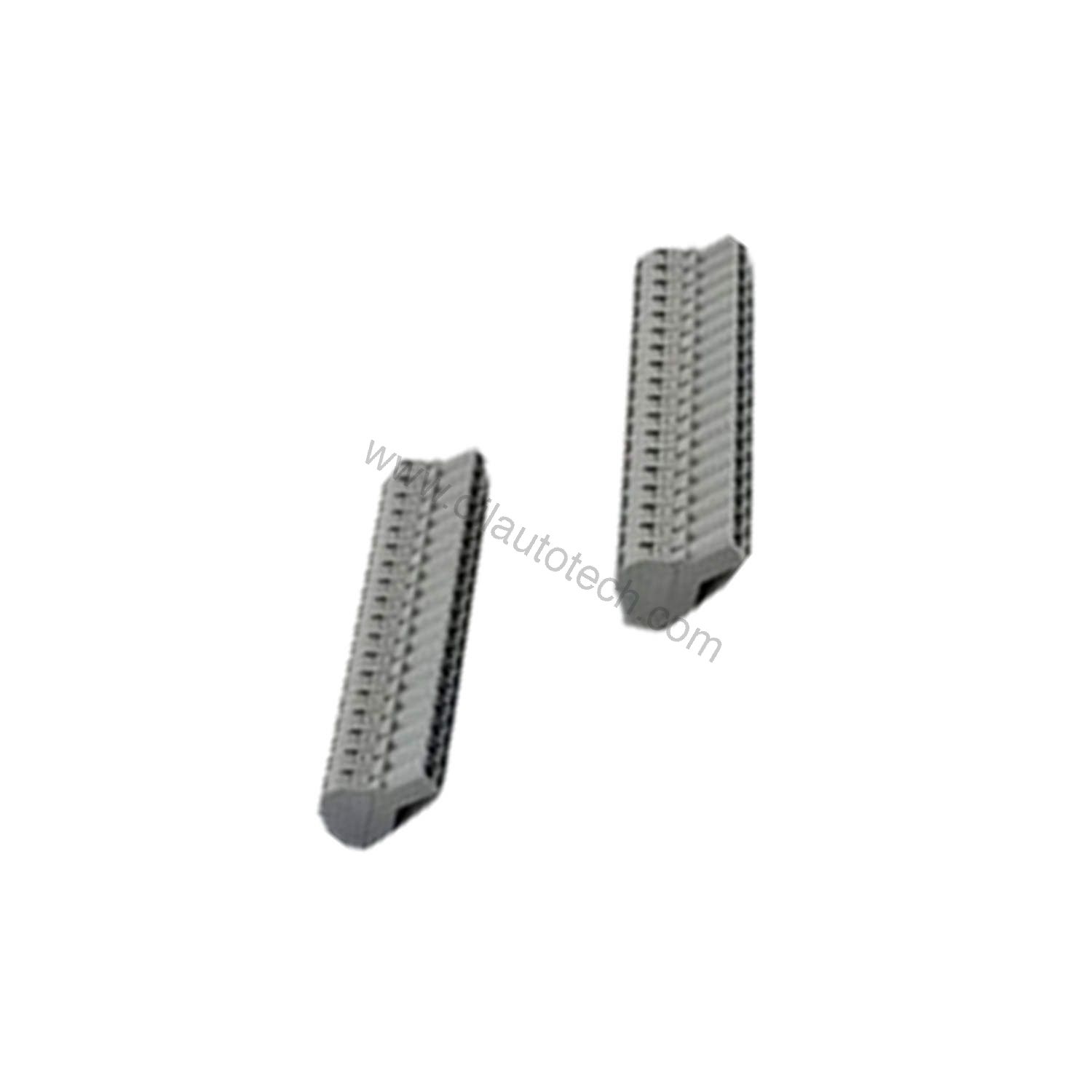

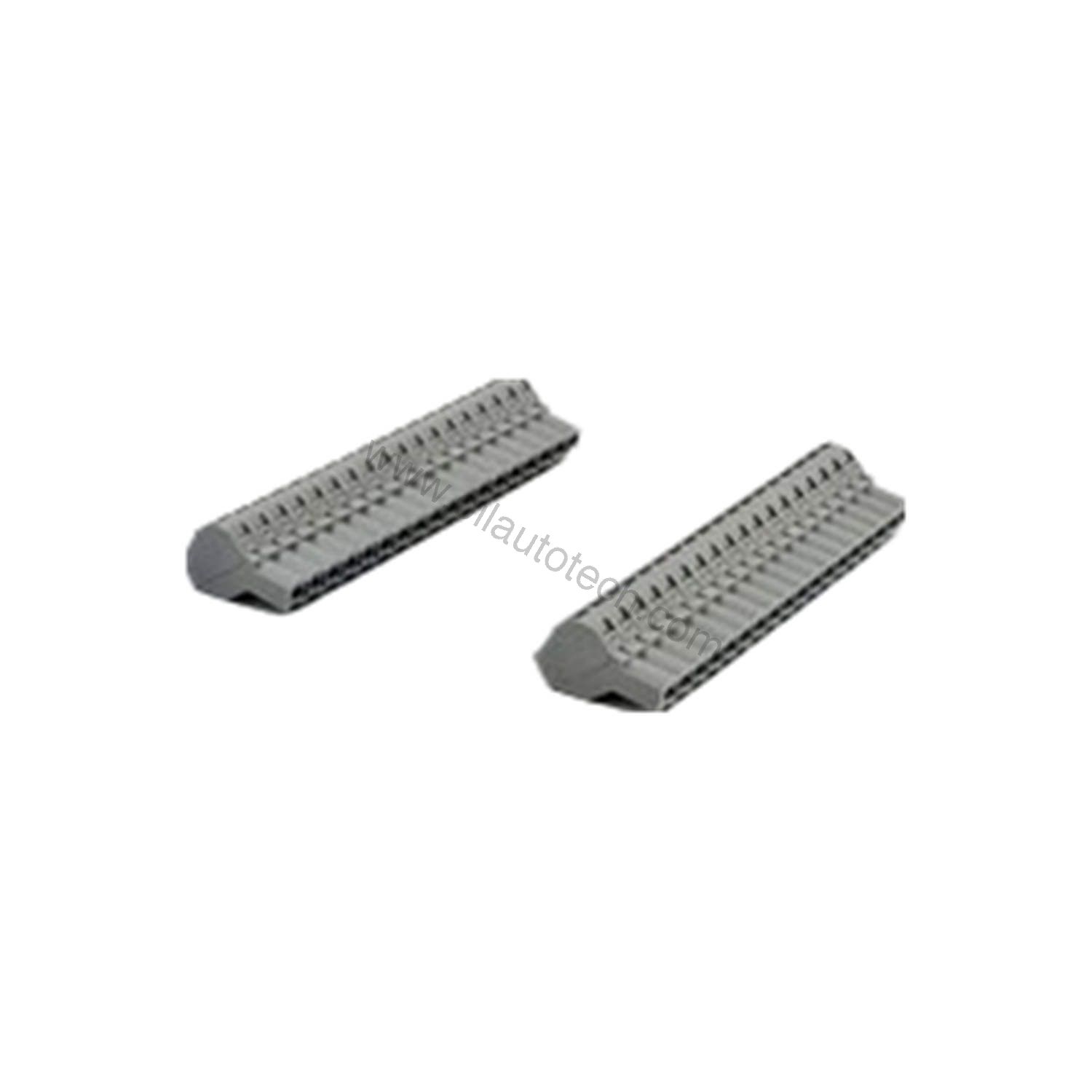

Miswired I/O bases are one of the most common causes of downtime on Modicon Momentum installations. The Schneider Electric 170XCP10000 solves that problem directly. It is a cable coding kit built specifically for I/O bases in the Modicon Momentum product line, giving technicians a practical way to keep field wiring organised and correctly matched to each base position.
This is a small, purpose-built accessory rather than a controller or power module. Buyers evaluating it should treat it as a system-consistency part: it helps protect the investment already made in Momentum hardware by reducing wiring mistakes during installation and maintenance.
Key Parameters at a Glance
Physical and Environmental Profile
The kit is compact and light, weighing only 53 grams, so it adds no meaningful load to a panel or mounting rail. It is rated for a maximum ambient temperature of 60 degrees Celsius and a minimum ambient temperature of 0 degrees Celsius, which covers typical control cabinet conditions in oil, gas and process plants.
Humidity tolerance is generous: the kit handles up to 95% non-condensing humidity in both operating and storage conditions. It also performs at altitudes up to 1000m above sea level. Cooling is natural, meaning no forced air or fan is required.
Compliance
The 170XCP10000 carries CE standard compliance. For buyers building or maintaining equipment for regulated markets, that matters when documentation is reviewed during audits or acceptance testing.
Where This Kit Fits in Real Installations
Panel Builds and Retrofits
Engineers assembling a Momentum I/O rack use coding kits to keep base assignments unambiguous. On a retrofit, where existing wiring may already be labelled inconsistently, the kit helps standardise how cables map to bases.
Oil, Gas and Process Skids
On packaged skids, I/O bases are often installed in tight enclosures with limited access. A coding kit reduces the chance of a technician plugging a cable into the wrong base during a rushed maintenance window. Given the 0 to 60 degrees Celsius ambient range and 95% non-condensing humidity rating, the kit suits the environmental conditions common to these installations.
Spares Stocking
Maintenance planners who keep Modicon Momentum spares on the shelf should include coding kits alongside bases and terminal blocks. They are inexpensive relative to the cost of a wiring error that takes a line down.
What to Verify Before You Order
Before purchasing, confirm three things:
- Series match — this kit is intended for Modicon Momentum I/O bases. Confirm your bases belong to that line.
- Base type — check that your specific I/O base accepts a coding kit of this style.
- Quantity — decide whether you need one kit per base or a panel-wide quantity.
If you are unsure which coding accessory fits your Momentum configuration, the practical route is to ask. Oil AutoTech offers hands-on technical selection help and can confirm suitability against your existing part numbers before you commit.
Availability and Sourcing
Momentum installations remain widespread across oil, gas and industrial automation sites, and accessory parts like this are frequently needed on short notice. Oil AutoTech focuses on fast-dispatch spares for exactly these situations, with quick worldwide delivery.
Please verify current lifecycle status and availability with Oil AutoTech before ordering, particularly if you are sourcing for a planned shutdown or a critical spares list.
Contact Oil AutoTech today for pricing and availability.
