When a Quantum Rack Loses Its TTL Inputs, How Fast Can You Recover?

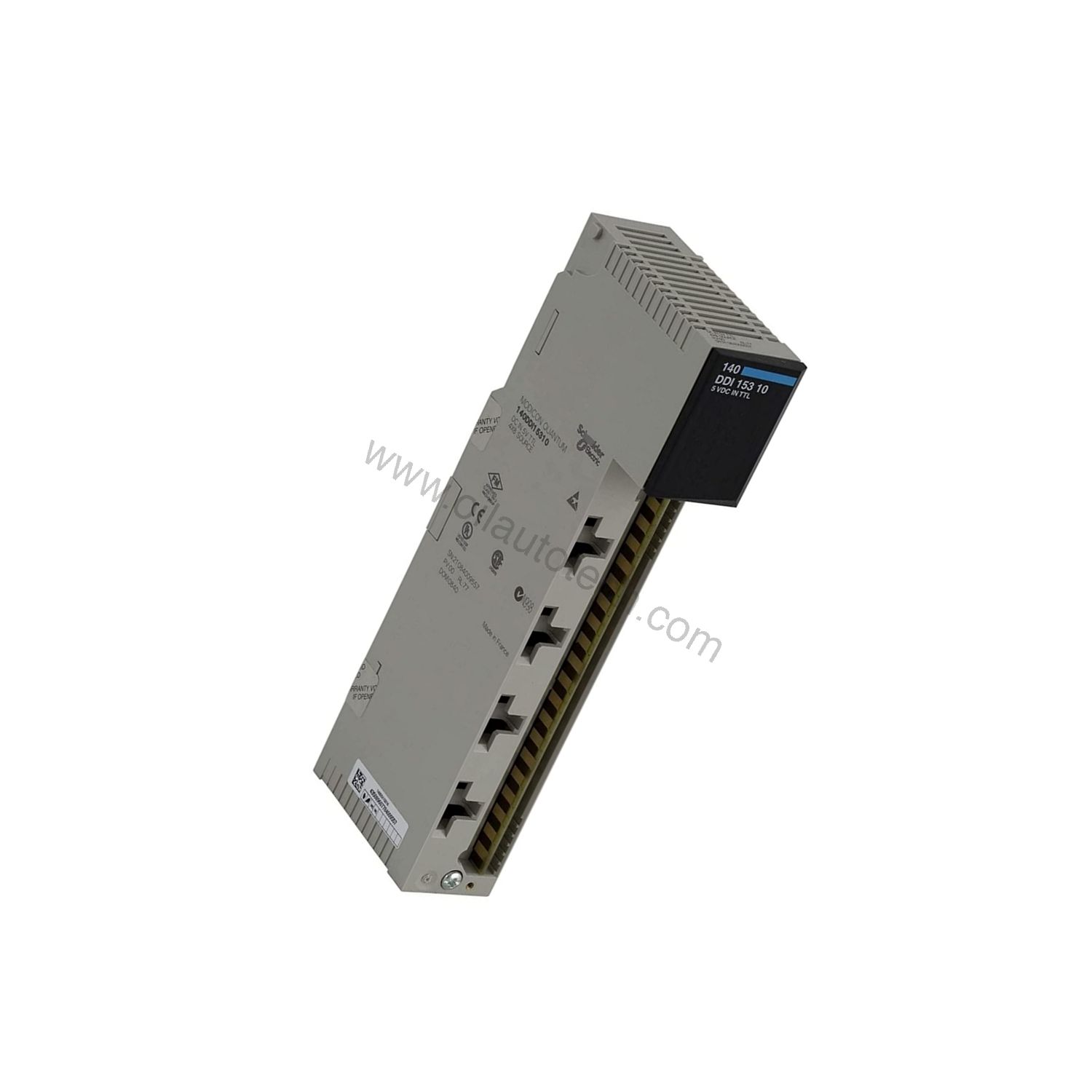

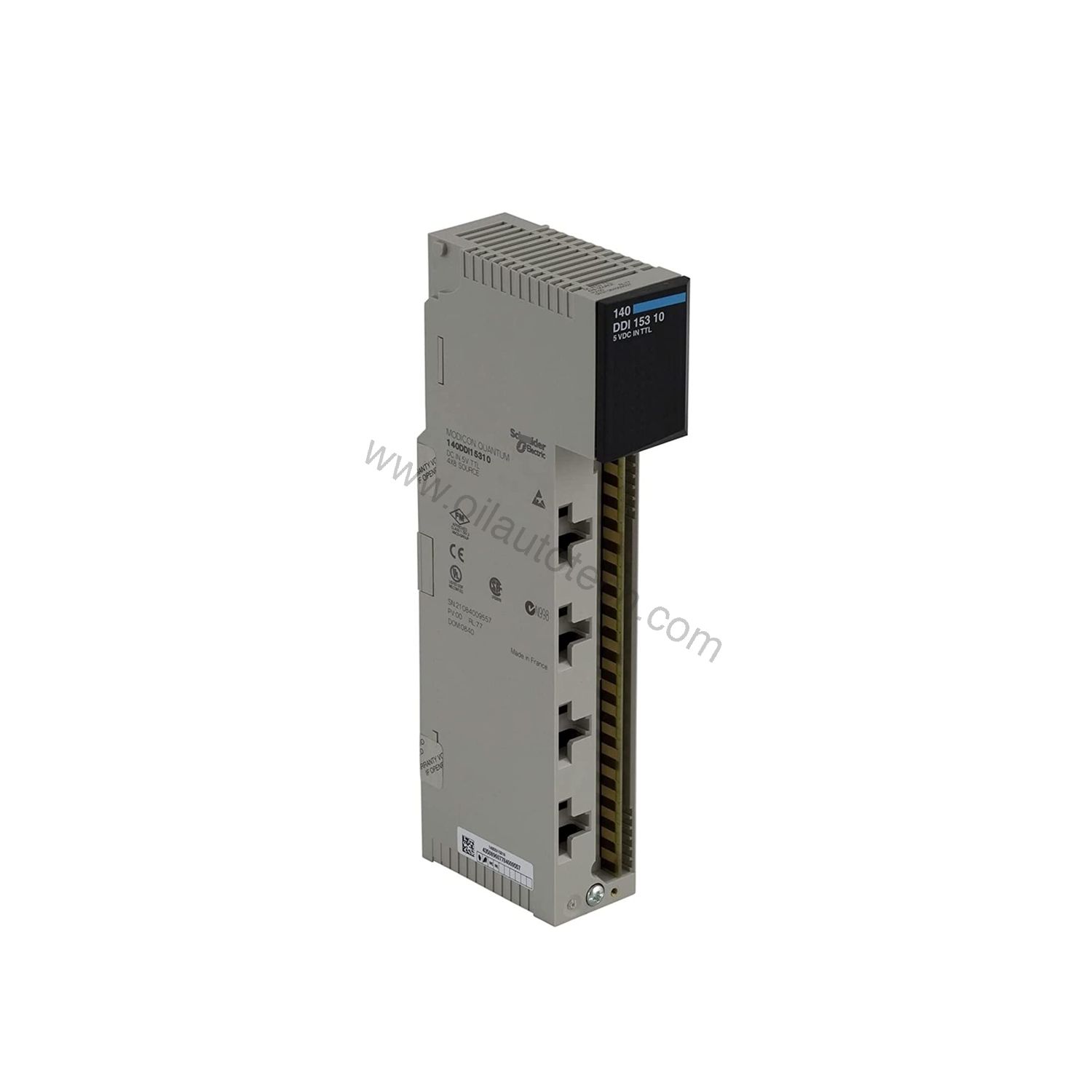

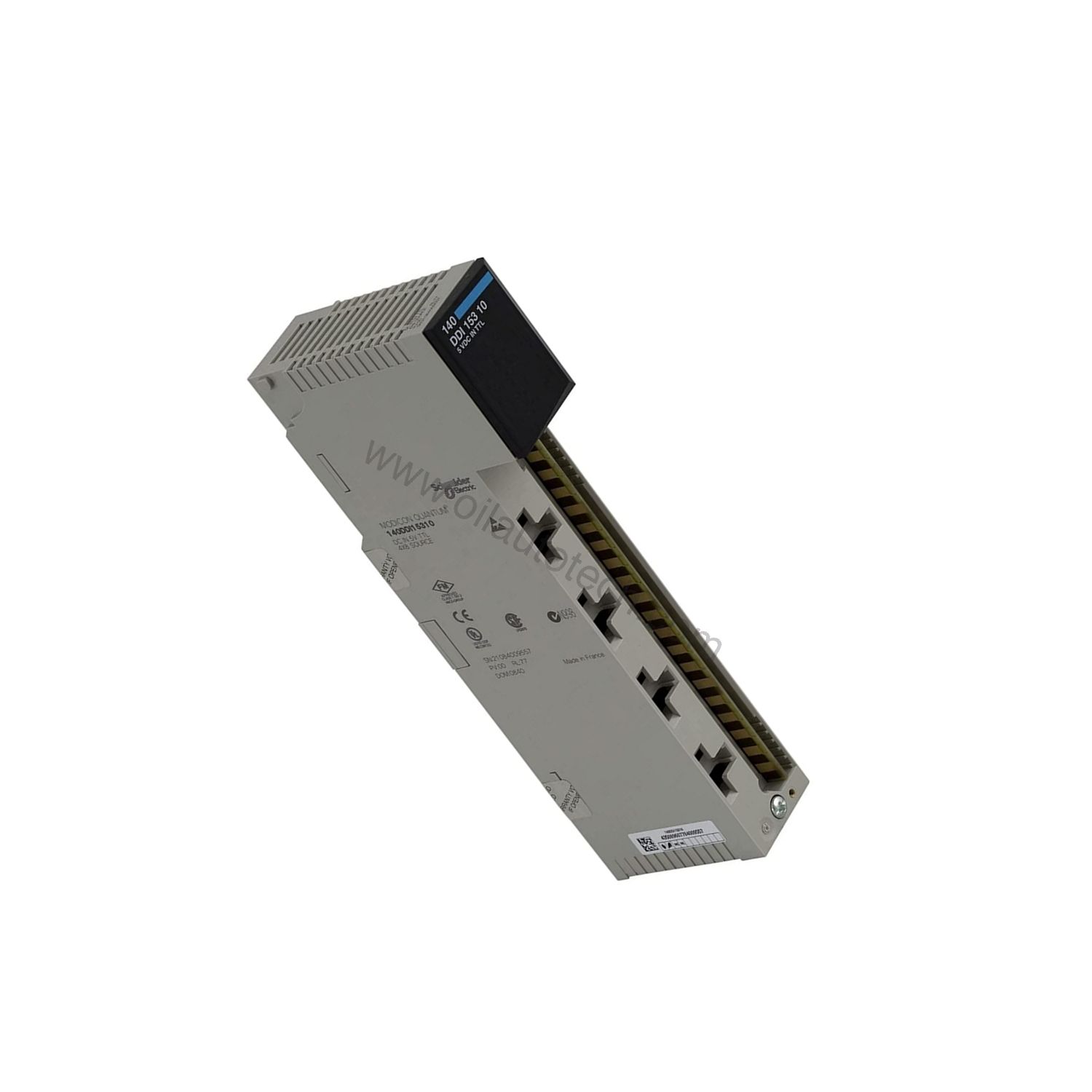

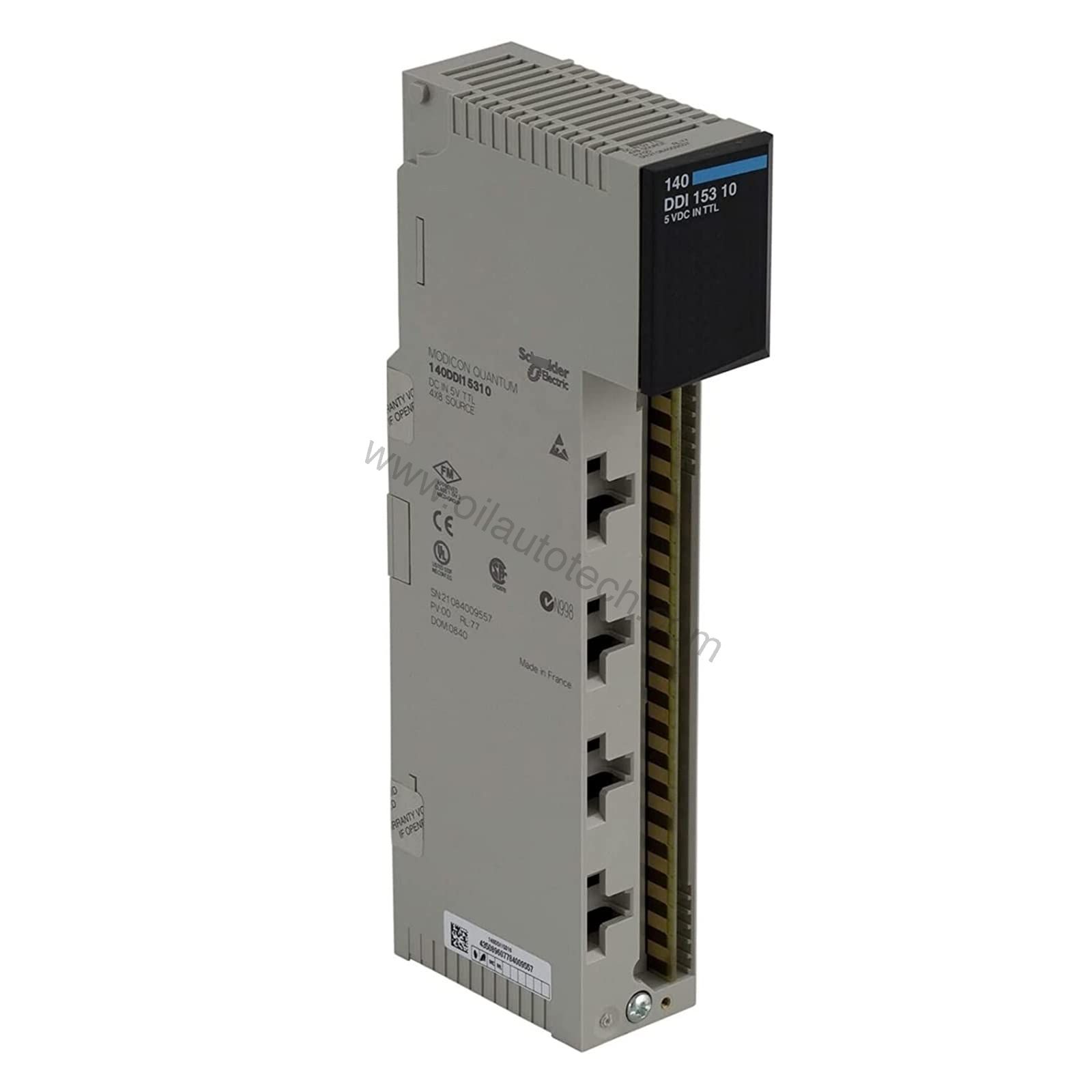

Every maintenance engineer knows the feeling: a legacy Modicon Quantum line goes down because one discrete input module fails, and the replacement is no longer on the shelf. The Schneider 140DDI15310 answers that exact problem. This 32-point TTL 5 V DC discrete input module belongs to the Modicon Quantum series and reads low-level TTL signals from encoders, counters and interface electronics. It is now discontinued (End of Sale), so sourcing a tested spare quickly matters more than ever.
What the 140DDI15310 Actually Does
The module packs 32 input points arranged in 4 groups of 8, accepting a 5 V DC TTL signal with negative logic (source type). Each active channel draws just 4 mA, so it loads upstream logic devices lightly. Group-to-bus isolation of 1780 Vrms for 1 minute and 500 Vrms between groups protect the backplane from field transients. An external fault (F) LED gives fast visual diagnostics, and the typical response time of 1 ms keeps fast counting and position tasks accurate.
Key Parameters at a Glance
| Parameter | Value |
|---|---|
| Channels | 32 points (4 groups × 8) |
| Signal type | TTL input, 5 V DC, negative logic (source type) |
| Input current | 4 mA (state 1 per channel) |
| Response time | ≤ 1 ms (typical) |
| Isolation | Group-to-bus 1780 Vrms for 1 min; between groups 500 Vrms for 1 min |
| Supply voltage | 5 V DC (backplane) |
| Bus current | 170 mA @ 5 V DC |
| Power consumption | 5 W |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 250 × 40.34 × 103.85 mm |
| Weight | 0.3 kg |
Where This Module Earns Its Place
TTL-level inputs suit applications where the field device already outputs a clean 5 V DC logic signal. In oil and gas terminals, the 140DDI15310 often captures pulse outputs from flow meters and position encoders feeding a Quantum controller. In panel-building shops, it reads status lines from interface boards and solid-state relays. Because the module needs only one slot and 5 W, it fits dense racks without straining the power budget.
Fitting and Maintaining the Module
The unit occupies a single Quantum slot and draws its 5 V DC supply from the backplane, so no external field supply is required for the logic side. Keep the cabinet within IP20 conditions, free of conductive dust and moisture. During routine shutdowns, inspect the front connector and the fault LED, and confirm that input wiring remains seated. Follow the manufacturer’s safety manual for all maintenance work. If the module is discontinued in your system, verify current lifecycle status and availability with Oil AutoTech before ordering.
Sourcing the 140DDI15310 Without the Wait
Because this model has reached End of Sale, buyers should confirm the exact revision and connector style before committing. Oil AutoTech offers hands-on technical selection help and fast-dispatch spares for oil, gas and industrial automation, with quick worldwide delivery. Contact Oil AutoTech today for pricing and availability.
